Scan code: LN102513 Manufacturer code: 0-761345-11677-0

Antec NE500G ZEN 500 Watt Fully Wired 80+ Gold PSU/Power Supply

500W Antec NeoECO ZEN, Fully wired, 80PLUS Gold, SLI/CrossFire, Single Rail, 42A, 120mm Silent Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Antec NE500G ZEN 500 Watt Fully Wired 80+ Gold PSU/Power Supply Thumbnail 2 : Antec NE500G ZEN 500 Watt Fully Wired 80+ Gold PSU/Power Supply Thumbnail 3 : Antec NE500G ZEN 500 Watt Fully Wired 80+ Gold PSU/Power Supply Thumbnail 4 : Antec NE500G ZEN 500 Watt Fully Wired 80+ Gold PSU/Power Supply
Scan code: LN102513 Manufacturer code: 0-761345-11677-0
£59.99
Add To Basket
In stock
Order now and get it tomorrow, Fri 5th Jun
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 5th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

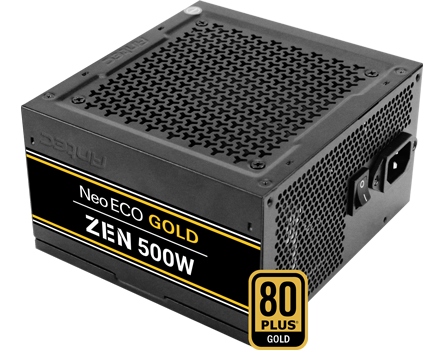

Neo ECO Gold Zen 500W

The new NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unhear of from other power supplies.


80 Plus Gold Certified

Reducing your electricity bill, guarantees up to efficiency of 92% under normal conditions. Japanese capacitors provide high efficiency DC to DC stability.


Japanese Heavy-Duty Caps

Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.


99% + 12V Output

Engineered with high-quality capacitors and low-noise transformers, the NeoECO Gold ZEN series provide clean, stable power with maximum CPU & GPU support.


Antex 5-Year Warranty

We stand by the quality and safety of the NeoECO Gold ZEN Supplies, offering a 5-year parts and labour warranty and unlimited access to our incomparable technical support and customer service.

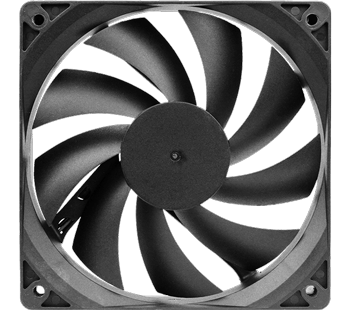

120mm Silent Fan

Features a thermal manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.


Features
• 500W Continuous Power.
• 80 PLUS Gold Certified.
• AQ5 - Antec Quality 5 Year Warranty.
• 120 mm Silence - Whisper quiet, high quality fan with long lifetime.
• 99% 12V - Output for maximum CPU & GPU support.
• Japanese Heavy Duty High Performance Capacitiors.
• Half-Bridge LLC design with a synchronous rectification based on a DC-DC topology
• 2 x PCI-E connectors for multiple GPU Support.
• ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation.
• CircuitShield - Full suite of industrial grade protections: OCP/OVP/UVP/SCP/OPP/NLO.
Specifications
Size ATX
Edition NE500G Zen
Wattage 500 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 42 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 42 A
Modular No
Modularity
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 2 x 8-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN102513
Model Number 0-761345-11677-0
GTIN 761345116770
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Antec
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
500W Antec NeoECO ZEN, Fully wired, 80PLUS Gold, SLI/CrossFire, Single Rail, 42A, 120mm Silent Fan, ATX PSU is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Good replacement for defective PSU Ordered this to replace Antec PSU in a Media centre PC which failed after 9 years. Spec and manufacturing quality are better than original. Order from Scan arrived promptly.
