Scan code: LN39052 Manufacturer code: SA-3005

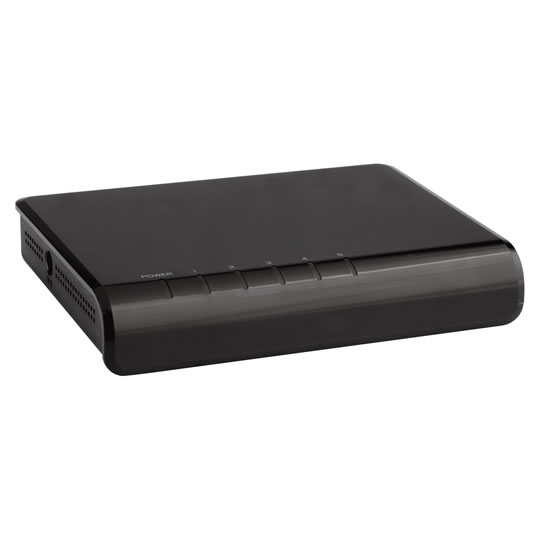

eten SA-3005 5-Port Mini Gigabit Ethernet Switch

5-Port eten SA-3005 Gigabit Network Desktop Switch, 5x 10/100/1000Mbps, Compact Design, Black

MORE INFO
MORE INFO
Thumbnail 1 : eten SA-3005 5-Port Mini Gigabit Ethernet Switch
Scan code: LN39052 Manufacturer code: SA-3005
Order now and get it tomorrow, Fri 12th Aug
£19.99
Add To Basket
Get it Tomorrow, 12 AugIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

High-Speed Networking

ES-3005 is a 5-port SOHO Gigabit Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SOHO users with limited space. It is a superb choice for expanding your network. SA-3005 provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time transferring large files.


Auto-MDI/MDI-X

Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.


Auto-Negotiation

Every port can automatically sense if the connected network devices are running at 10Mbps, 100Mbps or 1000Mbps and Half/Full-Duplex mode, and adjust accordingly.


Non-Blocking

This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 2000Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.


Store and Forward

By this function, this switch can maximise network performance while minimising the propagation of bad network packets.

Features

• IEEE 802.3ab 1000BaseT
• IEEE 802.3x Flow Control

Features
• Number of Ports: 5
• MAC Address: 4K
• Buffer Memory: 1.25 MB
• Jumbo Frames: 4.6K
• Transmission Method: Store and Forward

Filtering/Forwarding Rates
• 1000Mbps port - 1,488,000pps
• 100Mbps port - 148,800pps
• 10Mbps port - 14,880pps

Transmission Media
• 10BaseT Cat. 3, 4, 5 UTP/STP
• 100BaseTX Cat. 5 UTP/STP
• 1000BaseT Cat. 5E UTP/STP

Led Indicators
• Per Port: Link/Act
• Per Unit: Power

Power Requirement
• 5-Port: DC 5V/2A
• 8-Port: DC 5V/2.5A

Power Consumption
• 10 Watts (Max)

Dimensions
• 140 x 105 x 25 mm (L x W x H)

Weight
5-Port: 196 g
8-Port: 224 g

Certifications
• FCC Class B, CE

Specifications
Edition Unmanaged Switch
Form Factor Desktop
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate 1
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 6 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material Plastic
Includes
Dimensions (WxHxD) 105 x 25 x 140 mm
Weight 0.196 kg
Additional Information
Scan Code LN39052
Model Number SA-3005
GTIN 39052
