4 Port Raid Card for SAS/SATA 3 Hard Disk drives

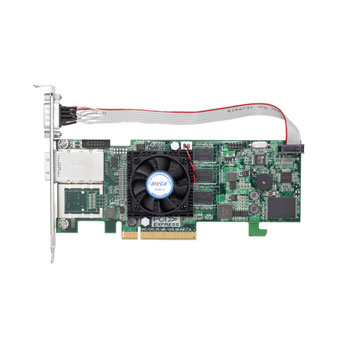

4port Areca ARC-1213-4X PCIe 6Gb SAS/SATA RAID Controller without Cables

Scan code: LN41912 Manufacturer code: ARC-1213-4X Request call
Pay on Scan Finance with a 10% deposit from just £6.88 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview SAS builds on parallel SCSI by providing higher performance, improving data availability, and simplifying system design. The SAS interface supports both SAS disk drives for data-intensive applications and Serial ATA (SATA) drives for low-cost bulk storage of reference data. The ARC-1213-4x support directly attach 4 SAS ports via 1 external SFF-8088 connector. Each port on the SAS controllers supports SAS and/or SATA devices. Features • PCIe 2.0 x8 lane host interface.
• Support up to 4/8 internal 6 GB/s SAS physical links.
• ARC-1213-4x supports up to 4 x 6 GB/s SAS/SATA HDDs.
• Multi-adapter support for large storage requirements.
• BIOS boot support for greater fault tolerance.
• Support EFI BIOS for Mac Pro.
• NVRAM for RAID event & transaction log.
• Redundant flash image for controller availability.
Ports Total 4 Port
Ports Internal
Ports External 4 Ext Ports
Connectors 1 x SFF-8088
Interface PCIe 2.0 x8
RAID Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 3
  • RAID 30
  • RAID 5
  • RAID 50
  • RAID 6
  • RAID 60
  • Single Disk
Low Profile Compatible Yes
Cables Inc.
Cache Memory 512MB

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Questions & Answers
