XFX Radeon RX470 Core Edition AMD Graphics Card

4GB XFX Radeon RX 470 Single Fan Triple X, 14nm Polaris, PCIe 3.0, 6600MHz GDDR5, 1226MHz Boost, 2048 Streams, DP/HDMI

XFX
Scan code: LN74031 Manufacturer code: RX-470P4SFD5 Request call
£184.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
Mid Range
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD SAPPHIRE CORE EDITION - Radeon RX 470 GPU

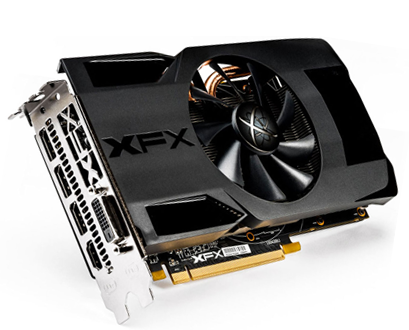

XFX Core Edition Radeon RX 470

This RX 470 from XFX is their single fan 470 card. A single fan allows the graphics card to fit into a wider array of PC cases, and comes at a reduced price when compared with other XFX Radeon 470’s. The XFX Radeon RX 470 coupled with AMD LiquidVR technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Embedded tech and clever design ensure a cool and quiet operation.

2048
Streams

4GB
GDDR5

TBD MHz
Core Clock

1226MHz
Boost Clock

ENHANCED 470 VRM & MEMORY COOLING

XFX 470 Cooling Goes Further

After countless hours of research, development, and testing the engineers at XFX have developed an all new VRM and Memory cooling technology, reducing temperatures VRM by up to 30' C and GDDR temperatures by 20' C. This is all done while reducing dB noise by an additional 5%, and it’s all embedded into this Radeon RX 470 graphics card.

*Image for representation of technology only, actual circuitry will vary by model.

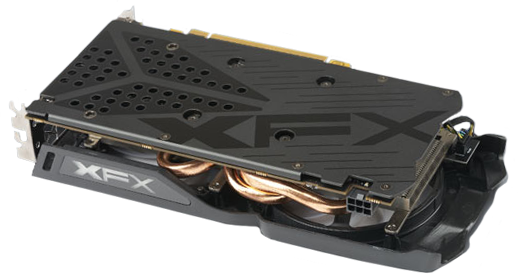

XFX CORE RX 470 BACKPLATE

Additional XFX 470 Protection and Cooling

XFX's solid backplate keeps the card strong and secure, eliminating card bend. Graphics cards also emit some heat from the back as well which rises up and affects other components but the XFX RX 470’s cool aluminum backplate can absorb that heat and keep the overall case cooler.

*Actual backplate design may vary slightly by model.

XFX 470 COMPOSITE HEATPIPE

Combining Tech for First GPU Super Heatpipe

The new composite heatpipe design used in the XFX Radeon RX 470 combines the technologies of both Liquid and Capilary Action heatpipes into one. Doing so allows XFX to increase the total heatpipe surface area by 30% which tremendously increases the thermal efficiency.

TRUE CLOCK XFX 470 TECH

The Best Radeon RX 470 Speeds

Software controlled clock speed optimizers can be hindered by overall computer performance, heavy loads can cause it to misread the maximum potential clock speed of the graphics card at any given moment.XFX's True Clock technology is hardware controlled clock speed performance optimization so it's always running at peak performance all the time.

SMOOTH 470 GAMING SESSIONS

AMD Graphics FreeSync Technology

Every PC gamer knows how incredibly smooth gaming can be at a steady 60+ FPS. Now you can have that low-latency experience at virtually any framerate with AMD FreeSync monitors. The Radeon RX 470 features FreeSync tech that will free your games and their cinematics of screen tearing, and minimize stuttering.

AMD RADEON CONNECTIONS

3 x DisplayPort 1.4 | 1 x DVI-D DL | 1 x HDMI 2.0b

Specifications
Specifications
Chipset Radeon RX 470
Edition Single Fan Triple X
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 2048
Core Clock
Boost Clock 1226 MHz
Memory Size 4GB
Memory Type GDDR5
Memory Clock
Memory Speed (Effective with DDR) 6600 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth
Cooling Solution Single Fan (1)
Cooler Design XFX Ghost 4.0 Cooling
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 4096x2160
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 5 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 121 x 40 x 220 mm
Package Type Retail
