XFX RS Black Radeon RX470 4GB AMD Graphics Card with Hard Swap Fans
AMD XFX Black EDITION - Radeon RX 470 GPU
XFX Black EDITION RX 470 Graphics Card
This is a more advanced Radeon RX 470 from XFX, when compared to their single fan RX 470 RS. It boasts dual hard swap fans for easy cleaning and upgrading, among other clever technologies. Industry leading innovation and powerful performance enables the Radeon RX 470 to deliever premium experiences on high-end VR games, entertainment and applications. FinFET 14 technology empowers the Radeon RX 470 graphics card to operate at an intelligent level and with true efficiency.
THE XFX DIFFERENCE - RS
Better PCD Design
Better design means higher stability and overclockability.
Custom Thermal Solution
Tailor-made heat-spreader and overall design give it the best perfromance.
The components heatsink and fan noise, we’re the best across the board.
Convenience & Flexibility
A built-in switch allows you to instantly change the BIOS options.
XFX’s exclusive components make it unmatched among the competition.
Patented snap removable fans lets you instantly upgrade and customize.

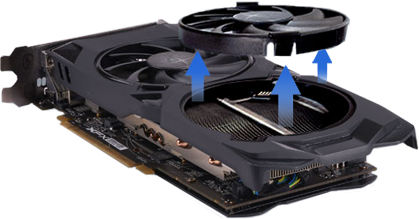

HARD SWAP RX 470 FAN DESIGN
XFX Exclusive GPU Design
XFX's Patent Pending Hard Swap Fan Technology is an exclusive technology you'll only find on XFX graphics cards. This special technology allows you to take fans off instantly, making it easy to interchange with new fans of different colours or replace broken fans in an instant.
Dedicated GPU Fan Controller Board
XFX's exclusive fan PCM circuit board is designed to make hard swap technology possible for the first time ever with GPU fans. It's also separated from the primary GPU board as an extra level of surge protection in the case of faults.

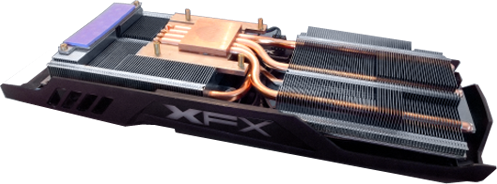

HIGH PERFORMANCE 470 UNIBODY HEATSINK
Enhancing the RX 470 Thermal Efficiency
The XFX RX 470 RS series features an all new Unibody VRM Heatsink construction enable direct transfer to the primary heatsink and heatpipes. This unique combination of material and construction, embedded into this RX 470, enhances thermal efficiency by a total of 40%.

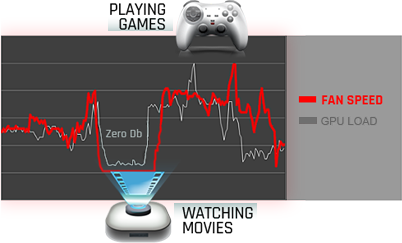

ZERO dB FAN SYSTEM
Smart Silent Card Cooling
Intelligent Adaptive Fan Control is XFX's special fan control technology that automatically stops fans under low loads and then ramps up when needed to match the designated performance needs. So you can enjoy silence when watching movies but get the cooling you need when enjoying high perfromance games.

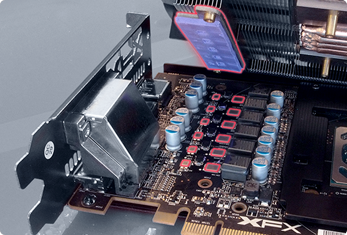

ENHANCED 470 VRM & MEMORY COOLING
XFX 470 Cooling Goes Further
After countless hours of research, development, and testing the engineers at XFX have developed an all new VRM and Memory cooling technology, reducing temperatures VRM by up to 30' C and GDDR temperatures by 20' C. This is all done while reducing dB noise by an additional 5%, and it’s all embedded into this Radeon RX 470 graphics card.
*Image for representation of technology only, actual circuitry will vary by model.

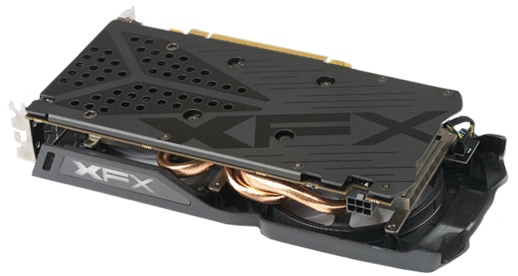

XFX RS BACKPLATE
Aluminium Graphics Card Backplate
The XFX Radeon RX 470 is designed with a full width solid aluminium backplate which provides reinforcement to prevent PCB bend which in cheaper cards causes instability and crashes.

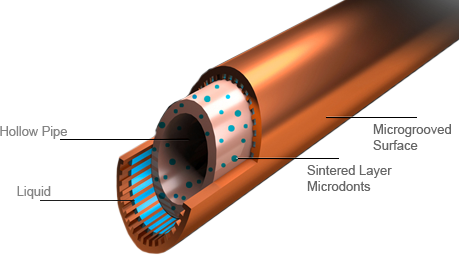

XFX 470 BIGGER HEATPIPES
Combining Tech for First GPU Super Heatpipe
The new composite heatpipe design used in the XFX Radeon RX 470 combines the technologies of both Liquid and Capilary Action heatpipes into one. Doing so allows us to increase the total heatpipe surface area by 30% which tremendously increases the thermal efficiency.
TRUE CLOCK XFX 470 TECH
The Best Radeon RX 470 Speeds
The competition might claim overclocking but it's simply software boosting, we don;'t do that, we give you 100% factory overclocking at the hardware level. This means our cards are designed and tested to maximize it's overclocking professional so our advertised overclocking is true and capable of constantly achieving the highest clock rate possible.

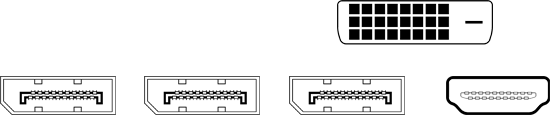

AMD RADEON CONNECTIONS
3 x DisplayPort 1.4 | 1 x DVI-D DL | 1 x HDMI 2.0b
|Chipset||Radeon RX 470|
|Edition||RS Black Edition with HARD SWAP|
|Manufacturing Process||14 nm|
|Boost Clock||1256 MHz|
|Memory Speed (Effective with DDR)||7000 MHz|
|Memory Data Rate|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||XFX Ghost 4.0 with Hard Swap Removable Fan Tech.|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||4096x2160|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||5 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||121 x 40 x 240 mm|
