Asus STRIX GAMING Radeon RX470 4GB AMD Graphics Card

4GB Asus Radeon RX 470 ROG STRIX GAMING OC, 14nm Polaris, PCIe 3.0, 6600MHz GDDR5, 1250MHz Boost, 2048 Streams

Asus
Scan code: LN74210 Manufacturer code: STRIX-RX470-O4G-GAMING Request call
£188.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review Mid Range
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD ASUS Strix OC - Radeon RX 470 GPU

ASUS Strix GAMING Radeon RX 470 GPU

This ASUS STRIX 470 is an impressive graphics card that takes a focus on gaming. This beautifully designed card comes with an abundant of beneficial features that concentrate on stabilizing graphics, enhancing performance, increasing airflow and customizing the style, amongst others. The STRIX RX 470 performance capabilities will display digital games with a crisp finish, enthralling you in games or any other media.

2048
Streams

4GB
GDDR5

1250MHz
Boost Clock

1270MHz
Boost OC Mode

STRIX GPU COOLING SYSTEM

DirectCU III Graphics Card Cooling Tech

This Strix AMD 470 will achieve up to 30% extra cooling performance when gaming thanks to the exclusive DirectCU III cooling technology. This tech featured on the Radeon RX 470 utilizes direct-GPU contact heat-pipes that will transport more heat away from the GPU and out-perform the reference designs.

*Image for illustration only. Actual design may vary.

ENHANCED STRIX 470 COOLING

Triple Wing-Blade GPU Cooling

DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink of the Strix RX 470 - while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

ASUS GPU FAN CONNECTIONS

GPU Controlled Fan Headers

*A 4-pin GPU-controlled fan header connected to system fan for optimal thermal cooling.

When gaming it is commonly found that GPU temperatures are higher than that of the CPU, due to chassis fans usually referencing CPU temps only - resulting in inefficient cooling. The Strix 470 graphics card features two 4-pin GPU controlled headers that can be connected to system fans for targeted cooling on your AMD 470.

STRIX RX 470 EMBEDDED LED

ASUS 470 Aura RGB Lighting

ASUS Strix 470 features Aura RGB Lighting on the shroud, these Strix graphics cards are capable of displaying millions of colors in six different effects. Experience a personalized gaming system with Strix Radeon RX 470.

GPU DURABILITY & EFFICIENCY

A More Reliable AMD 470

This 470 series, like various other ASUS boards, has had premium alloy components intergrated into their graphics card designs reinforcing the overall reliability. Super Alloy Power II components greatly enhance the Strix 470 efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.

STRIX RX 470 CONNECTIONS

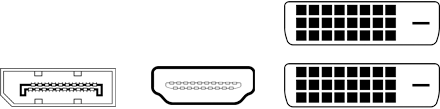

1x HDMI 2.0b | 1x DisplayPort 1.4 | 2x Dual-Link DVI

Specifications
Specifications
Chipset Radeon RX 470
Edition ROG STRIX GAMING OC
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 2048
Core Clock
Boost Clock 1250 (1270 in OC Mode) MHz
Memory Size 4GB
Memory Type GDDR5
Memory Clock 1650 MHz
Memory Speed (Effective with DDR) 6600 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth 211 GB/s
Cooling Solution Dual Fan (2)
Cooler Design DirectCU II
Fitted/Included Backplate No
Interface PCIe 3.0 (x16)
Connectivity
  • 1 x DisplayPort 1.4
  • 2 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions 129 x 42 x 242 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
TekSpek Guides
AMD Radeon RX 470
AMD Radeon RX 470
Date Issued: 4th Aug 2016

2016 has been chock-full of new graphics cards based on cutting-edge architectures that have given PC gamers plenty to be excited about. Both AMD and Nvidia have whet our appetites with cards such as the RX 480, GTX 1060, GTX 1070, GTX 1080 and Titan X, yet with manufacturer suggested retail prices starting at $199 and soaring to well beyond $1,000, there arguably hasn't been a GPU with genuine mainstream attraction.
