Scan code: LN95089 Manufacturer code: VCQRTX8000-PB

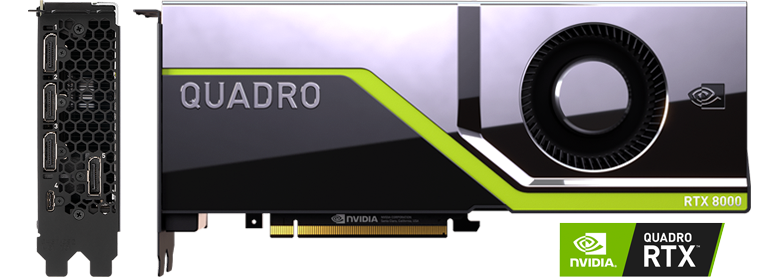

NVIDIA Quadro RTX 8000 48GB GDDR6 Turing Ray Tracing Workstation Graphic Card

48GB PNY NVIDIA Quadro RTX 8000, Turing, 4608 CUDA, 576 Tensor, 72 RT Cores, GDDR6, 16.3 TFLOPS FP32, DP/VirtualLink

MORE INFO

Thumbnail 1 : NVIDIA Quadro RTX 8000 48GB GDDR6 Turing Ray Tracing Workstation Graphic Card

NVIDIA Quadro RTX 8000 48GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 1

NVIDIA Quadro RTX 8000 48GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 2

NVIDIA Quadro RTX 8000 48GB GDDR6 Turing Ray Tracing Workstation Graphic Card : image 1

zoom

Scan code: LN95089 Manufacturer code: VCQRTX8000-PB

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£6,669.98Item currently awaiting an ETA

Pre Order

Pre order

With a 10% deposit from just £166.58 / month (APR 15.9%)

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services

48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview The new Quadro RTX 8000 is the world’s first ray tracing GPU. Armed with NVIDIA Turing architecture, 4608 CUDA cores, 576 Tensor cores and 48 GB memory, it is built to power the next generation of visual computing workflows. Features NVIDIA Turing GPU Architecture
World's most advanced GPU with the all-new RT Cores for ray tracing, 576 Tensor Cores for deep learning, and 4,608 NVIDIA CUDA® cores for parallel computing.

Next-Gen Memory
Equipped with industry-first 48 GB of ultra-fast GDDR6 memory to hold complex designs, massive architectural datasets, 8K movie content, and more.

NVIDIA NVLink™
Links two GPUs with a high-speed interconnect to scale memory capacity to 96 GB and drive higher performance with up to 100 GB/s of data transfer.

VirtualLink™
Industry-first implementation of VirtualLink to simplify connectivity to current and next-generation high-resolution VR head-mounted displays.

Specifications

Key Specifications
Graphics Chipset	Quadro RTX 8000
Edition
Manufacturing process	12 nm
Microarchitecture	Turing
GPU Name	1x TU102GL

Cores & Clocks
NVIDIA CUDA Cores	4608
Core Clock	1350 MHz
Boost Clock

Video Memory (VRAM)
Memory Size	48 GB
Memory Type	GDDR6
Memory Clock	1750 MHz
Memory Bit Rate	384 Bit
Memory Bandwidth	672 GB/s
ECC Technology	No

Cooling
Cooling	Single Fan (1)

I/O & Connectivity
Interface	PCIe 3.0 (x16)
Interface Bandwidth
Graphics Output	1 x 3-pin Stereo Audio Connector 4 x DisplayPort 1.4 1 x USB Type-C (VirtualLink)

Visuals
Multi GPU Support	2-Way NVLink
NVLink Support	Upto 2x Quadro RTX 8000 GPUs via NVLink
Total NVLink Bandwidth	100 GB/s
Microsoft DirectX Support
HDCP Ready	No
Multi Monitor Support	4 Displays
Concurent Users	N/A
H.264 1080p30 Streams	N/A
Maximum Digital Resolution	7680x4320 @ 60Hz (8K UHD)
Maximum VGA Resolution	N/A
Supported Graphics APIs	DirectX 12.0 DirectX 12.0 (12.1) OpenCL 1.2 OpenGL 4.6 Vulkan 1.1

Compute Performance
Supported Compute APIs	CUDA
Single Precision (FP32) Processing	Yes
Single Precision (FP32) Performance	16.3 teraFLOPS
Double Precision (FP64) Processing	Yes
Double Precision (FP64) Performance	0.509 teraFLOPS
Tensor Processing	No
Deep Learning (Tensor) Performance
NVIDIA Tensor Cores	576
Integer Operations (INT8)

Ray-Tracing
NVIDIA RT Cores	72
RTX-OPS	84T
Rays Cast	10 Giga Rays/Sec

Power & Thermals
Graphics Card Power Connectors	1 x 8-pin PCIe
Board Power	295 W
Minimum Recommended PSU
Maximum GPU Temperature

Physical
Form Factor	Dual Slot
Low Profile Compatible	No
Low Profile Support	N/A
Dimensions
Package Type	Retail

Additional Information
Scan Code	LN95089
Model Number	VCQRTX8000-PB
GTIN	3536403369866
