End Of Life Sale

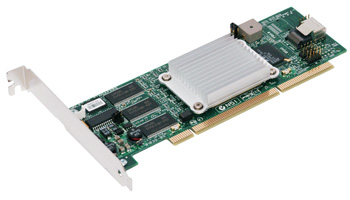

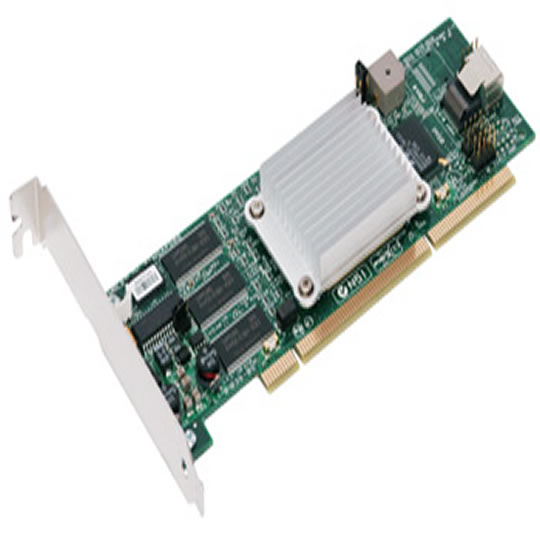

LSI MegaRAID SATA 300-4XLP Kit SATA II RAID storage adapter - Low Profile

4 Port LSI MegaRAID SATA 300-4XLP Kit SATA II RAID storage adapter - Low Profile

LSI
Scan code: LN18636 Manufacturer code: 300-4XLP Kit Request call
End Of Life
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Product Overview The MegaRAID® SATA 300-4XLP is the latest addition to the LSI family of SATA (Serial ATA) RAID solutions. Offering data transfer rates of up to 3 Gb/s per port in a low-profile form factor, the MegaRAID SATA 300-4XLP addresses the growing demand for RAID in high-density rack-mount chassis environments. Also, with the addition of individual drive activity and fault LED headers, you can view the status of hard drives through LEDs on the chassis. In addition to 3 Gb/s SATA transfer rates, the MegaRAID SATA 300-4XLP also supports Native Command Queuing (NCQ) and Enclosure Management (SAF-TE). Features • Internal SATA ports (4)
- x4 SATA connector with latch (1)
• 3 Gb/s throughput per port
• SATA 1.5 Gb/s and 3 Gb/s drive mode support
• Low-profile extended length PCI form factor
• RAID Levels 0, 1, 5, 10 and 50
• Intel® XScale™ IOP331 I/O processor
• Ships with 128MB embedded DDR SDRAM
• Individual drive activity LED headers (4)
• Individual drive fault LED headers (4)
• Enhanced error handling and reporting
• Comprehensive management and configuration utilities
