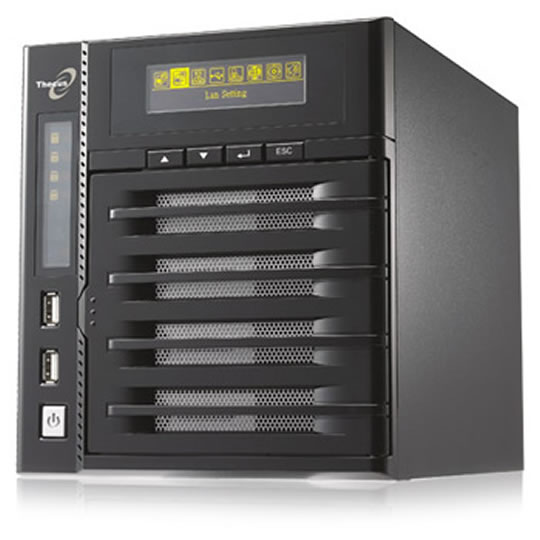

Thecus VisioGuard NVR42 4 Bay Network Video Surveillance Storage Solution NVR

4 Bay Thecus NVR42 Network Video Surveillance Raid SATA NVR Including Software & 5 IP Cam Licenses

Scan code: LN35786 Manufacturer code: NVR42 Request call
In stock
Pay on Scan Finance with a 10% deposit from just £14.39 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 22nd Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Thecus® Technology, a leader in digital storage solutions, is proud to announce a completely new lineup of Thecus® Networked Video Recording (NVR) systems. Engineered to deliver lightning-quick performance, robust features and massive storage capacity, Thecus® NVR systems are the number one choice for users who require a powerful yet flexible video recording and surveillance solution.

Multiple Devices in One
The NVR42 is actually a network video recorder, a real-time monitoring system, and a networked storage unit in one. There's no need to hook up and configure several devices - Thecus NVR Systems are your complete surveillance and storage solution.

Multiple Camera Support
These all-in-one network video recorders come with multiple camera support out of the box, allowing you to start monitoring several locations immediately without requiring additional devices to get started.

Real-Time Monitoring and Recording
Built with real-time monitoring and recording capabilities, the NVR42 is ideal for high security applications. You won't miss a beat with Thecus NVR.

Huge Storage
Engineered by the storage leader, the NVR42 comes with multiple SATA hard drive bays for massive storage capacity, perfect for organizations that need to retain and archive hours and hours of video footage.

Rock-Solid Data Protection
To protect critical video content, the NVR42 offers selective RAID modes so that administrators can configure them for optimal data protection and performance.

Complete Software Package
The NVR42 comes with NETAVIS Observer surveillance software and offers the most complete network video recording solution on the market, delivering unparalleled convenience and functionality for the modern enterprise.

1.Hardware Platform
Item Spec
Processor Intel® Atom™ Processor
System Memory 2GB DDR2 SDRAM
LAN Interface (PCI-e) RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
USB Interface USB 2.0 host port x6 (front x2, back x4) (Type A)
LCD Indicator HDD Power, Activity (yellow) / Fail (red)
LAN/WAN Activity (green)
USB COPY Busy (blue)
USB COPY Fail (red)
OLED Module 2.8” OLED display
4 buttons (ENTER, ESC, UP, DOWN)
Multi-lingual supported
Disk Interface 4 x SATA for internal
2 x eSATA for external
Power Supply External power adapter
PCI-e x4 Slot 1
Thermal/Fan Control Thermal sensor on processor temperature
CPU fan control
System fan control
Buttons Power button
OLED button
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis Tower base
Dimensions (HxWxD) 192 x 172 x 250 (mm)
NAS Form Factor
Storage (Included) N/A
Max. Storage Capacity
HDD Interface 4 x SATA II - 3Gb/s
HDD Form Factor
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Model
CPU Speed
RAM Memory Included 1GB
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 10/100/1000
Expansion Slots
External Connectivity
  • 2 x eSATA
  • 2 x LAN (10/100/1000)
  • 6 x USB 2.0
Noise Level
PSU Type
PSU Wattage
Max. Power Consumption
