End Of Life Sale

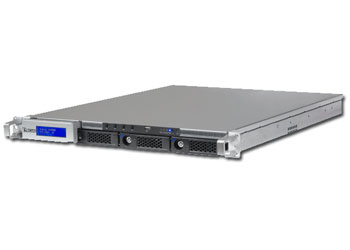

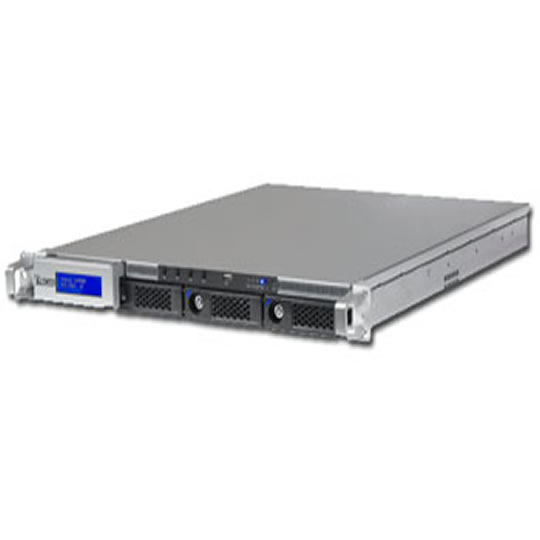

Thecus 1U4500 4 Bay 1U Performance NAS

4 Bay Thecus 1U4500 Redundant PSU SATA + eATA 1U NAS Ultra High Performance Server w/o HDD

Scan code: LN17491 Manufacturer code: 1U4500 Request call
End Of Life
review High End
Product Overview • Four-bay hot swappable network attached storage
• Enhanced system performance for storage computing
• RAID 0, 1, 5, 6, 10 and JBOD Support
• Multilingual support
• Supports SATA II hard drives and eSATA connection for easy expansion
• 802.3ad based load balancing and fail over
• LCD display for system setup and monitoring
Features Speciations
HDDs: 4 x 3.5" SATA II HDD, Hot-swappable
eSATA port: 1 x eSATA connector for capacity expansion
USB ports: 3 x USB A type (Host mode), 1 x USB B type (Client mode)
Ethernet ports: 2 x Gigabit RJ-45 Connector
LCD Control Panel: For basic configurations and status display
System LED Display: 4 x LED (System busy, Power, Network Activity x 2)
Form Factor: 1 U Rack mount
Power Supply: Redundant power supply, 100~240VAC, 50/60 Hz

Software Specifications
Network File Protocols
Microsoft Networks (CIFS/SMB)
Apple Filing Protocol (AFP 3)
Network File System (NFS v3)
File Transfer Protocol (FTP)
WebDisk thru HTTP/HTTPs

Local user account
Microsoft NT Domain Authentication
Microsoft Active Directory Authentication

Network Client Type
Microsoft Windows NT/2000/XP/2003
MAC OS X, OS 9, OS 8.6

Network Configuration
Fixed IP Address
Dynamic IP Address
802.3ad based Failover and Link Aggregation

Disk Management
Disk Status Monitoring (S.M.A.R.T.)

RAID 0, 1, 5, 6, 10, and JBOD
Auto Rebuild
Hot Swappable
Hot Spare
Disk Roaming
RAID Level Migration
RAID Expansion
HDD Capacity Supported : http://www.thecus.com/product.php?PROD_ID=7

Folder Management
Share Folder Level Permission
File Level Permission
Public Folder

Quota Management
Share Folder Quota Control

Thecus Backup Utility : Supports Microsoft Windows XP/2000 and MAC OS X
Nsync : A file-based remote backup service.

System Management
Multilingual Support (English, French, German, Italian, Traditional Chinese, Simplified Chinese, Japanese, Korean, and Spanish)
NTP supported

Event Notification
Email Notification
Buzzer Notification

UPS Support
UPS Monitoring thru RS-232 and System Shutdown on low battery

Printer Server
USB Printer (supports IPP)

Supported USB Devices
USB Printer
External HDD/Flash disk

Setup Utility
Windows 2000 / XP / 2003

Safety and Environment
CE, FCC, BSMI, C-Tick, RoHS Compliant


Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and maybe subject to change without notice."

Subject to 2 years manufacturer's warranty, direct with Scan.

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.

Questions & Answers
