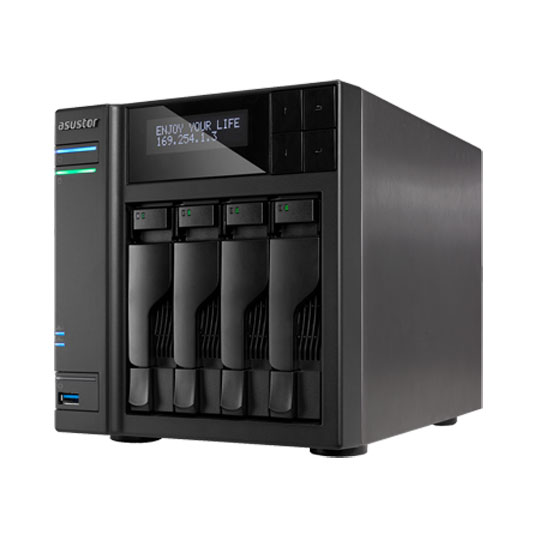

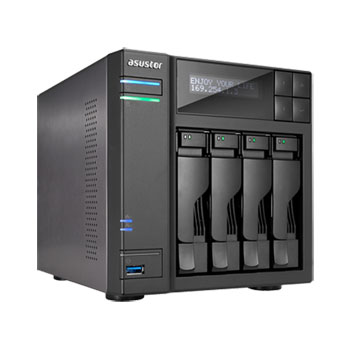

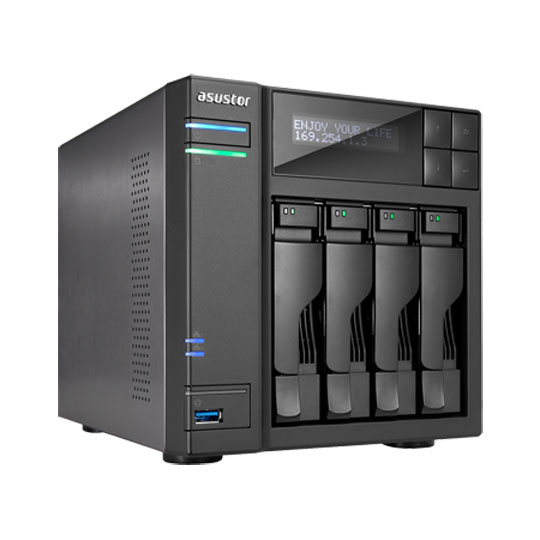

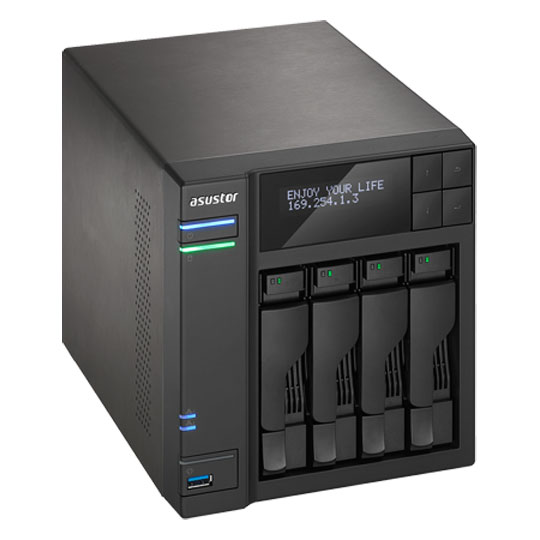

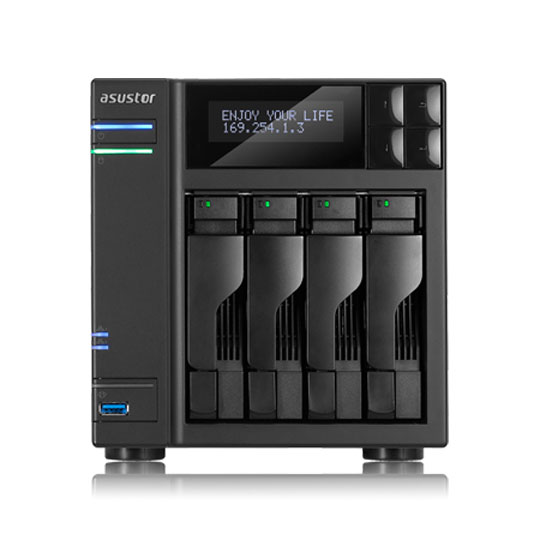

Asustor AS-604T 4 Bay SATA NAS with HDMI and full BOXEE Support PC/MAC

Product Overview ASUSTOR NAS devices are able to provide optimal data protection through RAID technology. A diverse array of automatic backup solutions is also supported, guaranteeing the security of your data. Seamless cross-platform file sharing allows you to easily connect to your NAS device no matter if you are using Windows, Mac OS, or Unix-like operating systems. When paired with mobile applications (iOS and Android), ASUSTOR's exclusive Cloud Connect™ technology lets you access the data from your NAS device from almost anywhere on the planet.

• Optimal price/performance ratio.
• Support for RAID 0, 1, 5, 6, 10 and hard drive hot swapping.
• Windows + Mac + Linux cross-platform file sharing.
• Your complete backup solution.
• Rich and full featured office apps.
• Energy efficient operation with a power rating of 33.2 watts.
• ASUSTOR's exclusive Cloud Connect via AiDownload App for Apple iOS Devices (Android coming soon)
Features Supporting Boxee
Play All Media Content Stored on NAS
Video Output via HDMI
TV Shows, Movies, Apps and More
ASUSTOR Customized Features
AiRemote Mobile App

Hardware Specifications

CPU: Intel® Atom™ 2.13 GHz Dual-Core Processor
Memory: 1GB SO-DIMM DDR3 (Expandable. Max. 3GB)
HDD: 2.5" or 3.5" SATA II/ III x 4
Expansion: USB 3.0 x 2, USB 2.0 x 4, eSATA x 2
Network: Gigabit Ethernet x 2
Output: HDMI x 1
System Fan: 70mm x 1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK

Operation
Power Consumption: 33.2W (Operation); 26.2W (Disk Hibernation); 1.4W (Sleep Mode)
Noise Level: 21.3 dB(A)
Operation Temperature: 5°C~35°C (40°F~95°F)
Humidity: 5% to 95% RH

Size and Weight

Size: 185.5(H) x 170(W) x 230(D) mm
Weight: 3.5 kg / 7.94 lb

Eco-Friendly Design
System Sleep Mode (S3)
Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep

Package Contents

AS-604T Unit x1
Installation CD x1
AC Power Cord x1 / AC Power Adapter x1
RJ-45 LAN Cable(Cat 5e) x2
Flat Head Screw (for 3.5" HDD) x16
Flat Head Screw (for 2.5" HDD) x16

Operating System

ADM 1.0 Onwards
Built-in App Central for Various Apps

Supported OS

Windows XP, Vista, 7, Server 2003, Server 2008
Mac OS X 10.4 Onward
UNIX, Linux, and BSD

Supported Languages

Deutsch, Dutch, English, Français, Italiano, Nederlands, Chinese
Supported Browsers
Internet Explorer 9
FireFox
Chrome
Safari

Network Protocols
CIFS/SMB, AFP, NFS, FTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS

File System
Internal Disk: EXT4
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+

Storage Management
Support Multiple Volumes with Spare Disks
Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration
Support for Online RAID Capacity Expansion

iSCSI
Maximum Targets: 256
Maximum LUNs: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO & MCS
Persistent (SCSI-3) Reservations

Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans

Network
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
ASUSTOR Cloud Connect
Wireless Network²
DDNS and EZ-Router

Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup

System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
Network Recycle Bin
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support

Access Control
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory

Security
AES 256-Bit Folder Encryption
Firewall: Prevent Unauthorized Access
Network Defender: Prevent Network Attacks
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH


Featured Apps

File Explorer
Web-based File Management
ISO File Mounting
Share Links

Surveillance Center
Live Monitoring (4 Free Channels)
Multiple Channel Playback with Audio
Supported Browsers: Internet Explorer, Chrome, FireFox (Windows only)
Event Notification

UPnP Media Server
Supports PS3 and other Digital Media Player Capable Devices
Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image³ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, PPM, RAF, RAW, RW2, SR2, X3F)
Supported Audio Formats: 3GP, AAC, AC3, AIFC, AIFF, AMR, APE, AU, AWB, FLAC1, M4A, M4R, MP2, MP3, OGG Vorbis1, PCM, WAV, WMA
Supported Video Formats: 3GP, 3G2, ASF, AVI, DAT, FLV, ISO, M2T, M2V, M2TS, M4V, MKV, MPv4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, RMVB, VDR, MPE

iTunes Server

For iTunes on Mac & Windows
Supports AirPlay
Supports iOS Remote Pairing
Supported Audio Formats: AIF4, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV4
Supported Video Formats: M4V, MOV, MP4
Supported Playlist Formats: M3U, WPL

Download Center

Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
Torrent Search
Choose Files Before a BT Task Starts
Customizable Download Schedule

Bandwidth Control
RSS Subscription and Automatic Downloading (Broadcatching)
ASUSTOR Download Assistant for Windows & Mac
AiDownload for iOS & Android
