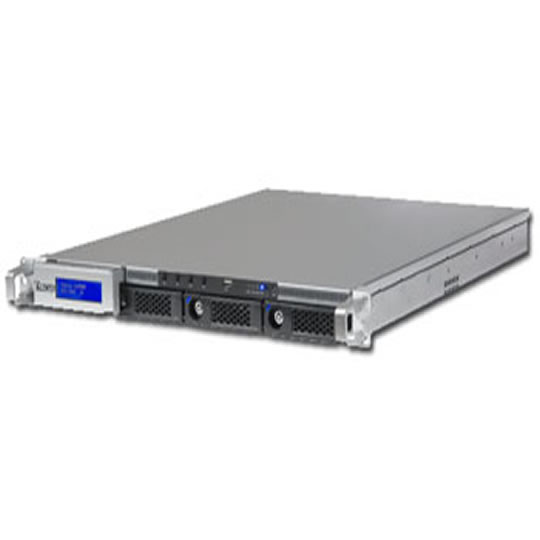

Thecus 1U4500 1U 4 Bay Performance NAS

4 Bay 1U Thecus 1U4500 Single PSU SATA + eATA 1U NAS Ultra High Performance Server w/o HDD

Scan code: LN17492 Manufacturer code: 1U4500S Request call
Was: £683.99
In stock
Pay on Scan Finance with a 10% deposit from just £11.99 / month (APR 15.9%)
review High End
Delivery options £11.50 By DPD On 24th May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview • Four-bay hot swappable network attached storage
• Enhanced system performance for storage computing
• RAID 0, 1, 5, 6, 10 and JBOD Support
• Multilingual support
• Supports SATA II hard drives and eSATA connection for easy expansion
• 802.3ad based load balancing and fail over
• LCD display for system setup and monitoring

Features Speciations
HDDs: 4 x 3.5" SATA II HDD, Hot-swappable
eSATA port: 1 x eSATA connector for capacity expansion
USB ports: 3 x USB A type (Host mode), 1 x USB B type (Client mode)
Ethernet ports: 2 x Gigabit RJ-45 Connector
LCD Control Panel: For basic configurations and status display
System LED Display: 4 x LED (System busy, Power, Network Activity x 2)
Form Factor: 1 U Rack mount
Power Supply: Single power supply, 100~240VAC, 50/60 Hz

Software Specifications
Network File Protocols
Microsoft Networks (CIFS/SMB)
Apple Filing Protocol (AFP 3)
Network File System (NFS v3)
File Transfer Protocol (FTP)
WebDisk thru HTTP/HTTPs

Local user account
Microsoft NT Domain Authentication
Microsoft Active Directory Authentication

Network Client Type
Microsoft Windows NT/2000/XP/2003
MAC OS X, OS 9, OS 8.6

Network Configuration
Fixed IP Address
Dynamic IP Address
802.3ad based Failover and Link Aggregation

Disk Management
Disk Status Monitoring (S.M.A.R.T.)

RAID 0, 1, 5, 6, 10, and JBOD
Auto Rebuild
Hot Swappable
Hot Spare
Disk Roaming
RAID Level Migration
RAID Expansion
HDD Capacity Supported : Up to 750 GB

Folder Management
Share Folder Level Permission
File Level Permission
Public Folder

Quota Management
Share Folder Quota Control

Thecus Backup Utility : Supports Microsoft Windows XP/2000 and MAC OS X
Nsync : A file-based remote backup service.

System Management
Multilingual Support (English, French, German, Italian, Traditional Chinese, Simplified Chinese, Japanese, Korean, and Spanish)
NTP supported

Event Notification
Email Notification
Buzzer Notification

UPS Support
UPS Monitoring thru RS-232 and System Shutdown on low battery

Printer Server
USB Printer (supports IPP)

Supported USB Devices
USB Printer
External HDD/Flash disk

Setup Utility
Windows 2000 / XP / 2003

Safety and Environment
CE, FCC, BSMI, C-Tick, RoHS Compliant

NAS Form Factor
Storage (Included) N/A
Max. Storage Capacity
HDD Interface
HDD Form Factor
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Model
CPU Speed
RAM Memory Included
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 10/100/1000
Expansion Slots
External Connectivity 2 x 10/100/1000 [LAN]
Noise Level
PSU Type
PSU Wattage
Max. Power Consumption
Dimensions 44 x 430.5 x 567.6 (WxHxD mm)
