3XS GWP-AEC A124R
3XS GWP-AEC A124R, AMD Ryzen 9 5900X, 32GB DDR4, 16GB NVIDIA RTX A4000, 1TB M.2 SSD, 2TB HDD - *SEE INFO*
- By DPD On 24th Sep to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
PLEASE NOTE
We have all the necessary components required to build your system in stock.
However due to demand and our current volume of orders, it will take 25 to 30 working days to build and dispatch your system. Orders will be fulfilled in a queue in a first-come-first-served basis.
Scan 3XS Graphics Workstations
Scan 3XS Graphics Workstations are based on the latest Turing-architecture NVIDIA Quadro GPUs, providing you with maximum performance and stability when working your favourite AEC and BIM applications.
This workstation features an 16GB NVIDIA RTX A4000 graphics card with an AMD Ryzen 9 5900X processor plus 32GB of DDR4 memory. An ultra-fast 1TB SSD is provided for the OS and your latest project plus a 2TB HDD for storing assets and documents. The system is built in a compact mid tower case with sound dampening materials and quiet fans ensuring a superior user experience.
The system is soak tested with creative applications and is pre-installed with Windows 10 Professional.
Optimised for AEC and BIM Applications
This workstation is optimised for AEC and BIM workflows in applications such as 3DS Max, AutoCAD, Revit and Rhino.
How does NVIDIA RTX Benefit Me?
NVIDIA RTX technology provides three main benefits for content creators in 40+ enabled applications.
RT cores enable hardware accelerated ray tracing
Tensor Cores accelerate AI workflows
CUDA cores / NV Encoder for rendering and video processing
Key Features
GRAPHICS NVIDIA Quadro RTX 4000 graphics ensures great performance and has ISV-certified drivers in hundreds of AEC and BIM applications.
PROCESSING The AMD Ryzen 9 5900X has 12 cores and 24 threads for great performance in a wide variety of AEC and BIM applications.
MEMORY The 32GB of RAM enables you to run high-end AEC and BIM applications.
STORAGE This workstation features a lighting fast SSD for the OS and key applications plus an HDD for storing your projects and documents.
CONNECTIVITY The system features four USB 3.2 Gen 2 ports, two USB 3.2 Gen 1 ports plus two USB 2.0 ports to deliver blazing data-transfer speeds of up to 10Gbps.
WINDOWS This system is pre-installed with genuine Microsoft Windows 10 Pro 64-bit, the most modern and up to date operating system for a PC.

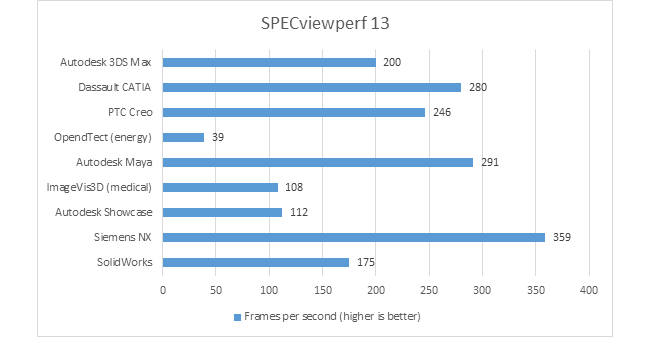

How fast is this workstation in AEC and BIM applications?
We have benchmarked this workstation in some of the most popular AEC and BIM applications using SPECviewperf 13 so you can compare its performance with other systems in our range. You can download and run the same benchmark on your existing workstation to see how much faster your new workstation is.
Detailed Specifications
| Component | Description | Chassis | Fractal Design Meshify 2 with 3XS Custom Front Panel |
|---|---|
| Motherboard | Asus Prime X570-P |
| Processor | AMD Ryzen 9 5900X, 12C/24T, 3.7GHz – 4.8GHz |
| CPU Cooler | Corsair Hydro H100x |
| Memory | 32GB Corsair Vengeance LPX 3200MHz DDR4 |
| Graphics Card | 16GB NVIDIA RTX A4000 |
| Power Supply | Corsair RM650x - 80PLUS GOLD |
| System Drive | 1TB Corsair MP600 M.2 SSD |
| Storage Drive | 2TB Seagate Barracuda HDD |
| Networking | Gigabit LAN |
| Operating System | Microsoft Windows 10 Pro 64bit |
| Recovery Media | USB drive with system image and diagnostic software |
| Warranty | 3 Year Premium Warranty - 1st Year Onsite, 2nd & 3rd Year Return to Base (inc Parts & Labour) |
| Accessories | 3XS Branded Corsair MM300 Mouse Pad, 3XS Mug & Cable Tidying Kit |
Why buy a 3XS Pro Graphics Workstation?
Professionally Built PCs vs Self-BuiltAnyone can build a PC, so what really makes the difference between building your own PC and a 3XS Workstation? Our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. These are the benefits you receive when buying a 3XS Workstation versus building a system yourself.
No Compatibility Headaches
It can take weeks to research the right combination of components, not just to ensure you get the most bang for your buck but to minimise the chance of one component being incompatible with another. This is especially true for creative applications as these workloads put intense load on components such as the GPU and CPU. We specially choose all the components in our Workstation with these conditions in mind, ensuring your system works flawlessly and delivers consistent performance.
Intensively Tested
Building a PC only takes a few hours, but installing all the software and making sure that everything is configured properly and that your software runs stably takes up a huge amount of time. By ordering a 3XS Workstation our engineers take this painful process away, as all our systems undergo a rigorous Quality Control procedure which includes installing Windows, installing the latest drivers and BIOS.
Peace of Mind
Unfortunately PC components do occasionally fail, and when this happens if you’ve built your PC yourself you’re on your own. However, with a professionally built 3XS Workstation system we have a dedicated team of support engineers and data scientists to help resolve any issues. Our technical support team is available 7 days a week, from 9am to 10pm Mon - Fri, 10am to 6pm on Saturdays and 10am to 4pm on Sundays. Click here for more info on how to get technical support for your 3XS system.
If our support team is unable to fix your 3XS Workstation remotely and it’s still under warranty we’ll either send out an engineer to visit your home or office or repair it or have it repaired in our state of the art factory in Lancashire.
Next Day Delivery
3XS Workstations are pre-built, soak tested and ready to ship from our warehouse for next-day delivery in the mainland UK.
Warranty & Technical Support
3XS Workstations are covered by our Premium 3 Year Warranty. This means that if your system develops a fault in its first year we can send an engineer to your home or office to repair it. In the remaining two years of the warranty we'll still repair or replace any faulty parts, but do this from our state of the art factory in Lancashire. Click here for more info on how to get technical support for your 3XS system.
