AMD Ryzen 5 Audio Workstation

3XS Audio Workstation, AMD Ryzen 5 3600X, 16GB DDR4, 480GB M.2 SSD, 1TB HDD, Win 10

Scan code: LN102089 Manufacturer code: R5STUDIO
3xs Approved
£1,059.00
From £50.83 / month (APR 14.9%)
Monthly Payment: £183.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,059.00
Total inc. interest: £1,102.55
Monthly Payment: £95.07
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,059.00
Total inc. interest: £1,140.84
Monthly Payment: £65.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,059.00
Total inc. interest: £1,179.96
Monthly Payment: £50.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,059.00
Total inc. interest: £1,219.94
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £26.45 / month (APR 15.9%)
Delivery Options
  • By DPD On 27th Jan to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

3XS Ryzen 5 Studio

Our 3XS Ryzen 5 Studio system is based around the latest AMD "Zen 2" CPU, with this model featuring a 6-core Ryzen 5 3600X running on a X470 motherboard to offer the best value combination.

The system has 16GB of Corsair memory included, which we find is ample for a lot of production duties carried out on this level of machine. We do however ensure that we leave you with two additional memory slots free, just so that if you wish to expand further in the future then you will have an easy upgrade route ready and waiting.

We also include a superfast NVMe SSD drive for your Windows OS installation, which means that you should also have plenty of space in which to setup your sequencer of choice as well as all of your plugins. Alongside that OS drive, we fit an additional 1TB Seagate Barracuda mechanical drive for general storage and your sample libraries. Should you also wish to migrate over your old project drives or if you wish to ensure that you have additional storage expansion options in the future, then rest assured that the case in this system has 6 more drive bays making it certain to be able to accommodate any future storage expansion that you may wish to carry out.

As with all of our studio-based systems, the performance to noise level is a key concern, where we always strive to ensure we get the maximum amount of performance with the least amount of disruptive system noise through careful component consideration. 3XS represents the last word in quality and reliability. We build thousands of bespoke systems every month and we are confident that our reputation speaks for itself. You will find reviews of our systems in many popular publications both online and in print.

The 3XS Ryzen 5 Studio is pre-built and ready to ship for next-day delivery and comes with Windows 10 Home pre-installed and a premium 3-year warranty.

Cooling and Acoustic Management

Audio PC Components

Our audio system components are chosen based on performance, value and most importantly with the studio environment in mind, givng consideration to the overall noise levels generated by the system. We build with hardware from renowned firms such as “Fractal Design”, “be quiet!” & “Noctua” to ensure that our case and cooling options strike a balance between great performance and ensuring that you have the minimal distractions or interruptions to your workflow.

Processors to Power your PC

Audio PC CPU

The CPU choice for your system is another important decision for your recording setup, as this where your processing performance comes from when it comes to writing and recording music. Audio handling works on a buffer system where the data is captured in a regular cycle and passed over to the CPU to carry out the important work, meaning that as long as everything is processed before the next buffer fills up then everything great.

When the CPU fails to completely process all that data before the next buffer fills up, this is when we experience crackling in our audio signal. The general advice has always been that fast cores are important for audio work and to a degree this is very true, although once we have a number of chips running at roughly the same speed, then it switches to having more cores being better as that means that you can handle more channels overall.

Modern D.A.W software tends to be able to handle an ever growing number of cores with even the most basic of programs now being able to handle 12 cores (24 threads) and the vast majority of them can effectively manage 16 cores (32 threads) without issue. It is always worth checking what your D.A.W software of choice can handle effectively, as this will allow you to optimize best choice in matching your hardware to your software’s abilities.

Here in Scan we test and compare our available CPUs using the DAWBench testing suite, so we can understand the performance differences between these chips. You may not always need the highest performing machine in the range and for many smaller acts working largely with audio and perhaps only a few dozen channels may find one of our entry-level machines extremely effective for the task in hand.

The DAWBench DSP chart below shows the result of adding multiple instances of the SGA 1566 effect, stacked on a project until the audio starts to crackle as the CPU begins to overload. This gives us a baseline metric to compare the CPU’s against each other and a rough guide to how each system will compare against other solutions. We measure at a number of buffer settings using our RME Babyface so that you can see how it may handle in both low latency-recording situations, as well as more relaxed buffer settings that you might use whilst mixing.

The DAWBench DSP chart shows the result of adding multiple instances of the SGA 1566 effect stacked on a project until the audio starts to crackle as the CPU overloads. It gives us a baseline metric to compare the CPU’s against each other and a rough guide to how the system will compare against other solutions. We measure at a number of buffer settings using our RME Babyface so you can see how it may handle in both low latency-recording situations and more relaxed buffer settings you may use whilst mixing.

Click image to enlarge

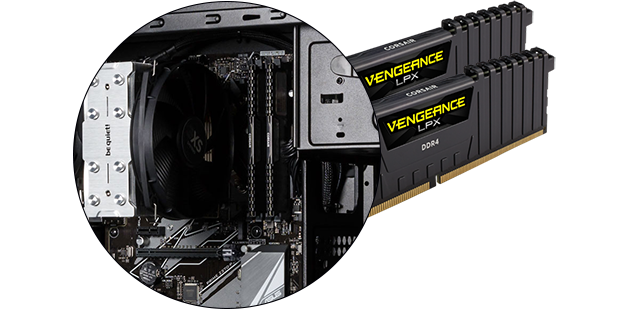

Tried and Tested Memory

Audio PC memory

Physical RAM is a key consideration for any audio system and a crucial one for composers working with larger sound collections. The memory functions as the local buffer between your storage and CPU, offering a place for your session to hold recorded audio and sample content for playback quickly by the sequencer.

Having enough RAM is crucial and for users working with small band projects where audio is used more than large sample libraries then 16GB tends to be a reasonable starting point, although some of those more demanding users may benefit from working with 32GB. For users working “in the box” like dance music producers and users scoring music to film then 32GB might prove to be your starting point and we always aim to include enough slots to allow you to upgrade further if required.

The benefits of RAM speed vary between platforms, with each model of Intel chip having a recommended RAM speed that it works with and we find that there are no real benefit for audio production specifically to be obtained by exceeding these. AMD in contrast benefits from having its RAM closely matched to the internal bus and ensuring the timings are as tight as possible in order to allow the CPU to work at its very best.

With our pre-built systems, we choose the RAM with the knowledge above in mind and this will ensure that you get the very best from your system.

System Storage

Storage is a key concern for any modern composer or recording artist. Whilst storage drive sizes have grown exponentially over the years, traditional mechanical hard drives are quickly falling by the wayside for high performance machines. We use a number of different storage options for our systems and we always ensure that you have plenty of connections remaining in order that you may port over your own sample collection drives or expand your storage space as your needs grow.

down

M.2M.2. NVMe drives are the fastest of the storage options that we offer, with high performance drives providing up to 3500MB/s read and write speeds, we often use these as your Windows OS and program installation drive. Secondary slower, larger capacity options are also offered, as they tend to offer great value for sound library storage and most modern mainboards can support 2 or 3 of these card options.

up

SSDSolid state drives (SSD’s) share many the same benefits as M.2 drives in that they offer low latency and great access times when searching through your library, but they only max out at around 550MB/s read and write speeds. They do however offer better value on larger storage capacities with drives reaching up to 4TB in size, making this style of drive perfect for accessing and working with your sound collection.

up

HDDClassic hard disk drives (HDD’s) remain the cheapest mass storage option for backing up and archiving data. Offering a maximum transfer speed of around 180MB/s and due to the nature of the moving read head found in the design of mechanical drives, the natural physical latency makes them the slowest choice for sound library streaming in comparison to newer designs. They do however offer unmatched prices on larger capacities and this makes them ideal for keeping backups and archival of your data.

Audio System Optimization

Audio PC Latency Test

All of our audio systems are optimized in both the BIOS and Windows itself in order to ensure you get the best from your system. The core of this optimization is dealing with DPC (Deferred Procedure Call) which is a measurement of how long it takes for your audio to gain access to and then fully process your ASIO audio buffer.

Windows itself allows up to a 1000μs (microseconds) for each driver to process a cycle, whereas audio requirements state that we need the entire stack of software to process in less than 1000μs. This means if we have 20 plus programs and drivers looking to run, then anything that is poorly implemented may cause us problems, possibly manifesting as an audio overloading causing audio to break-up far earlier than it otherwise should.

All of our audio systems receive extended testing before leaving the factory, specifically testing them for possibility of CPU overloading and ensuring that you have plenty of overhead for your projects.

Detailed Specifications

Component Description
Chassis Game Max Silent
Motherboard ASUS PRIME X470-Pro
Processor AMD Ryzen 5 "Zen 2" 3.8GHz Six Core with SMT
CPU Cooler Be Quiet! Shadow Rock SL
Memory 16GB Corsair Vengeance LPX 3200Hz DDR4
Graphics Card AMD Radeon R5 230
Power Supply 500W be quiet! Straight Power 11 – 80PLUS GOLDD
System Drive 480GB Corsair MP510 M.2 SSD
Storage Drive 1TB Seagate Barracuda HDD
Networking LAN
Operating System Microsoft Windows 10 Home 64bit
Recovery Media Recovery USB drive with system image and diagnostic software
Warranty 3 Year Premium Warranty - 1st Year Onsite, 2nd & 3rd Year Return to Base (inc Parts & Labour)
Accessories 3XS Branded Corsair MM300 Mouse Pad, 3XS Mug & Cable Tie

WHY BUY BUILT?

Professionally Built PCs vs Self-Built Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. These are the benefits you receive when buying a professionally built 3XS system versus building a system yourself.

No Compatibility Headaches

It can take weeks to research the right combination of components, not just to ensure you get the most bang for your buck but to minimise the chance of one component being incompatible with another. Whether you buy a system from our configurator or a custom spec system our engineers will do all this hard work for you, ensuring that when your system is delivered it performs flawlessly.

Intensively Tested

Building a PC only takes a few hours, but installing all the software and making sure that everything is configured properly and that your software runs stably takes up a huge amount of time. By ordering a 3XS system our engineers take this painful process away, as all our systems undergo a strenuous Quality Control procedure which includes updating Windows, installing the latest drivers and motherboard BIOS. Overclocked systems receive an additional 24 hour burn-in test to ensure stability.

Peace of Mind

Unfortunately PC components do occasionally fail, and when this happens if you’ve built your PC yourself you’re on your own. However, with a professionally built Scan 3XS system you’re no longer alone. Our technical support team is available 7 days a week, from 9am to 10pm Mon - Fri, 10am to 6pm on Saturdays and 10am to 4pm on Sundays. Click here for more info on how to get technical support for your 3XS system.

If our support team is unable to fix your system remotely and it’s still under warranty we’ll either send out an engineer to visit your home or office or repair it or have it repaired in our state of the art factory in Lancashire.

A Work of Art

We don't just build PCs in our state-of-the-art factory, we craft them. For instance, we route and tidy all the cables around the sides of the case. This not only makes your PC look great and easier to upgrade in the future, but eases airflow through the case resulting in a cooler and quieter PC. In addition, we can customise your PC for you, not just the components inside but also its appearance, so if you fancy a PC in an unusual shape or colour we look forward to hearing from you.

Widely Acclaimed

Our 3XS PCs have won hundreds of awards in the press from publications such as Custom PC, Develop3D, Expert Reviews, HEXUS, PC Gamer and PC Pro. In addition 3XS has won Custom PC’s annual Dream PC competition every year it has run since 2007. You can read all our reviews here plus customer reviews on the configurator.

Rapid Delivery

Sometimes you just need a system right now. Maybe your existing system has kicked the bucket or you’ve found that your old workhorse can’t cope with the latest game or application you just bought. F-series systems are pre-built and tested in our factory, so can be collected same day or delivered next-day to your home or office.

Warranty & Technical Support

Another key difference is that all Scan 3XS Custom Series PCs are covered by our Premium 3 Year Warranty. This means that if your system develops a fault in its first year we can send an engineer to your home or office to repair it. In the remaining two years of the warranty we'll still repair or replace any faulty parts, but do this from our state of the art factory in Lancashire. Click here for more info on how to get technical support for your 3XS system.

Specifications
Processor
CPU Type AMD Ryzen™ 5
CPU Model 3600X
Professionally Overclocked No
CPU Speed 3.8 GHz
CPU Boost/Turbo Speed 4.4 GHz
CPU Cores 6 Core
CPU Threads 12
CPU Cooler Air Cooler (Heatsink + Fan/s)
Motherboard
Motherboard Chipset AMD X470
Motherboard Form Factor ATX
RAM Memory
Memory 16GB (2x8GB)
Memory Type DDR4
Memory Speed DDR4 - 3200
Graphics
Graphics AMD
Graphics Chipset Radeon R5 230
Graphics Card Cooler
NVLink/SLi/CrossFire Multi GPU System No
Real-Time Ray Tracing No
VR Ready No
GPU Cores/Streams 160
GPU Core Clock 650 MHz
GPU Boost Clock
GPU Memory 2GB
GPU Memory Type DDR3
GPU Memory Clock 1200 MHz
GPU Memory Bit Rate
Graphics Card Connectors
  • 1 x D-Sub (VGA)
  • 1 x DVI-D DL
  • 1 x HDMI
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 480 GB
SSD Project Drive Installed No
SSD Project Drive Type N/A
SSD Project Drive Capacity N/A
Hard Drive Installed Yes
Hard Drive Type SATA HDD
Hard Drive Capacity 1000 GB
Additional Specifications
Operating System Windows 10 Home (64 bit)
Wireless LAN No
PSU Wattage 500 W
Colour Black
Case Form Factor ATX
Dimensions (Tower) 230 x 468 x 475 (WxHxD)
Optical Drive
I/O
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 5 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
  • 2 x USB 3.1 Gen2 Type-A
Front / Side Panel
Additional Information
Scan Code LN102089
Model Number R5STUDIO
GTIN 5055948915836
