Scan code: LN94901 Manufacturer code: FD-FAN-PRI-AL14-PWM-3P

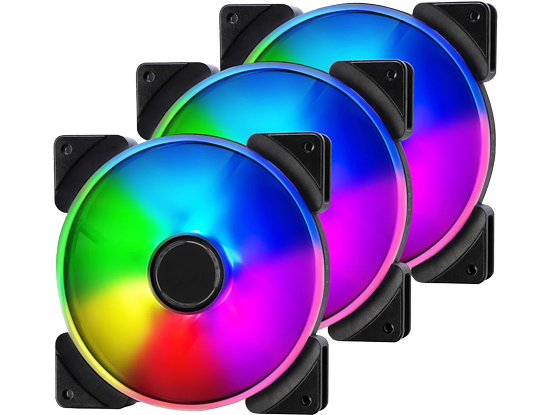

Fractal Design 140mm Addressable RGB LED Prisma AL-14 4-pin PWM PC Cooling Fan Triple Pack

3x 140mm Fractal Design Prisma AL-14 PWM ARGB Pack, 7 Blade, PWM Fans, 1700rpm, 103.85CFM, 34.1dBA, LLS, ARGB LED, 4-pin

Thumbnail 1 : Fractal Design 140mm Addressable RGB LED Prisma AL-14 4-pin PWM PC Cooling Fan Triple Pack Thumbnail 2 : Fractal Design 140mm Addressable RGB LED Prisma AL-14 4-pin PWM PC Cooling Fan Triple Pack Thumbnail 3 : Fractal Design 140mm Addressable RGB LED Prisma AL-14 4-pin PWM PC Cooling Fan Triple Pack Thumbnail 4 : Fractal Design 140mm Addressable RGB LED Prisma AL-14 4-pin PWM PC Cooling Fan Triple Pack
Scan code: LN94901 Manufacturer code: FD-FAN-PRI-AL14-PWM-3P
£63.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Prisma AL ARGB: Shine Bright
Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller* to switch between colours, brightness, and motion effects with the push of button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM* options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Vibrant Colour

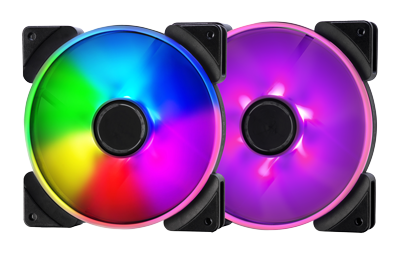

Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of colour choices.

Manually Controllable
Connect Prisma to the Adjust R1 RGB controller* for physical control of colours and effects.

Maximum Compatibility
Prisma fully supports Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome

Ideal for:
Ideal for users looking for a silent and reliable 3-pin or PWM* fan with addressable RGB LEDs, high-quality uniform light output, and compatibility with standard LED controls.

Important – Please Note: Adjust R1 RGB controller is Not Included, Available Separately. PWM functionality is only available on PWM models - please check specifications for PWM support & functionality. Features • Six individually addressable hub-mounted RGB LEDs.
• Specially designed fan blades and outer ring produce an exceptionally uniform glow.
• LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan.
• Integrated vibration-damping corners made from high-quality synthetic rubber.
• Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency.
• Aerodynamic stator struts with embedded wiring reduce noise and turbulence.

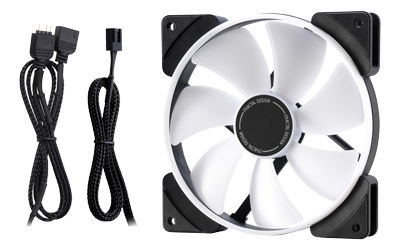

• Chainable RGB cables simplify wiring and make the most of available connections.
• PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only).
• Black sleeved power cables offer an extra touch of style.
• Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support.
• Adjust R1 RGB controller (Not Included, Available Separately) enables physical control of colours and effects.
• 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets.
Specifications
Pack Information
Edition Prisma AL-14 PWM ARGB
Pack Type Triple (3) Fan Expansion Pack
Includes 3 x 140mm Fan/s
Individual Fan Specifications
Fan Diameter 140mm
Fan Depth 25 mm
Fan Speed 500 - 1700 rpm
Fan Blades 7
PWM Yes
Fan Specialization Airflow/Pressure
Airflow 31.67 - 103.85 CFM
Air Pressure 0.44 - 2.38 mm H²O
Sound Level (dBA) 15.1 - 34.1 dBA
Sound Level (Sone)
Motor Type
Bearing Type LLS (Long Life Sleeve)
Manual Speed Controller No
Material
Fan Colour White/Black
LED Yes
LED Colour Addressable RGB
MTBF 100,000 Hours
Fan Fixing Screw Fixing
Cable length 500 mm
Connectors 3 x 4-pin
Additional Information
Scan Code LN94901
Model Number FD-FAN-PRI-AL14-PWM-3P
GTIN 7340172701651
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
Quiet PC
Telephone:
01653668000
