Scan code: LN115379 Manufacturer code: SSDPF2KX038TZ01

Intel 3.84TB D7-P5510 2.5" U.2 PCIe 3D NAND Enterprise Datacenter SSD

3.84TB Intel D7-P5510 2.5" U.2 SSD, PCIe 4.0 (x4), NVMe 1.3c, 3D TLC NAND, 7000MB/s Read, 4194MB/s Write, 930k/190k IOPS

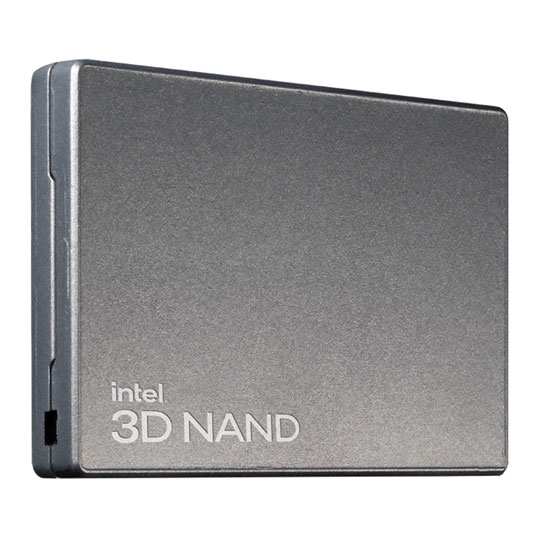

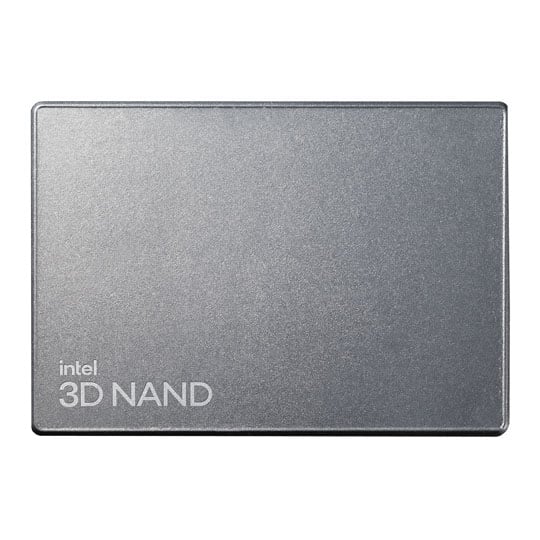

Thumbnail 1 : Intel 3.84TB D7-P5510 2.5" U.2 PCIe 3D NAND Enterprise Datacenter SSD Thumbnail 2 : Intel 3.84TB D7-P5510 2.5" U.2 PCIe 3D NAND Enterprise Datacenter SSD
Scan code: LN115379 Manufacturer code: SSDPF2KX038TZ01
£683.99
Order in the next 1 hr 12 mins and get it tomorrow (upgrade to Sunday delivery at checkout)
From £23.37 / month (APR 14.9%)
Monthly Payment: £61.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £683.99
Total inc. interest: £736.83
Monthly Payment: £32.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £683.99
Total inc. interest: £787.91
Monthly Payment: £23.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £683.99
Total inc. interest: £841.15
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £17.08 / month (APR 15.9%)
Delivery Options
  • By DPD On 25th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Cloud Inspired. Performance Optimized

Architected with 144-layer, TLC, Intel® 3D NAND technology, the Intel® SSD D7-P5510 offers optimized performance and capacity for all-flash arrays and is designed to advance IT efficiency and data security. The Intel SSD D7-P5510 includes an Intel PCIe 4.0 controller and firmware that brings low latency, enhanced management capabilities, scalability and critical new NVMe features for Enterprise and Cloud environments.


Improve Performance with Lower Latency

The Intel SSD D7-P5510 delivers predictably fast high performance and can greatly accelerate all-flash arrays. The performance-optimized D7-P5510 brings up to 2X higher sequential read performance, 50% lower latencies and a 50% increase in mixed workload IOPs (70% read, 30% write) compared to the previous-generation Intel SSD.

A new TRIM architecture further improves the performance on real life workload where dataset management commands are used. Optimized TRIM architecture now runs as a background process without interference to workloads, improving performance and QoS during concurrent TRIMs. The TRIM process is improved with reduced write amplification that helps drives meet their endurance goal.


Firmware Enhancements for Drive Performance, IT Efficiency, Data Security, and Manageability

The Intel SSD D7-P5510 include numerous firmware enhancements specifically designed to improve IT efficiency and data security in an increasingly data-centric world.

Dynamic multiple namespaces enhance runtime provisioning and storage management. Overprovision drive with single smaller namespace to improve endurance and random write performance.

• Expanded LBA format support provides flexibility to host software to pass metadata and protection information along with payload data. Intel SSD D7-P5510 supports VSS with the following sector sizes: 512/520/4096/4104/4160B.
• Scatter Gather List (SGL) improves performance by removing the need for data alignment at the host.
• Enhanced SMART monitoring, which reports drive health status without disrupting I/O data flow using an in-band mechanism and out-of-band access.
• Device Self-Test improves customer experience by ensuring devices are operating as expected. Host system can request the storage device (SSD) to perform tests to ensure it is functioning properly including SMART check, Volatile Memory Backup, NVM integrity, Drive life.
• Telemetry makes a wide range of stored data accessible and includes intelligent error tracking and logging. This increases the reliability of finding and mitigating issues and supports accelerated qualification cycles—all of which result in increased IT efficiency.
• Additional security features like TCG Opal 2.0, Configurable Namespace Locking, Sanitize and Format NVM are supported.
• A Power-Loss imminent (PLI) protection scheme with built-in self-testing guards against data loss if system power is suddenly lost. Coupled with an industry-leading end-to-end data path protection scheme, PLI features also enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.


NAND Technology Industry Leader

Intel’s 144-layer 3D NAND technology delivers industry-leading areal density and data retention, enabling enterprise customers to confidently scale storage arrays to meet their growing needs. The swift adoption of software-defined and hyperconverged infrastructures increases the requirement to maximize efficiency, revitalize existing hardware, and increase server agility—all while maintaining operational reliability.

Top enterprise server manufacturers have responded by openly embracing PCIe/NVMe-based SSDs with scalable performance, low latency, and continuous innovation. Meeting the demand of increasingly I/O-intensive workloads, including AI and Analytics, has become a core element for any enterprise strategy.

Features


• Next gen 144-layer TLC Intel® 3D NAND technology
• Accelerate wide range of cloud data center workloads with lower latency
• Improve enterprise security and manageability
• Responsiveness under mixed IO

Specifications
Capacity 3.84TB
Edition D7-P5510
Form Factor 2.5"
Height 15 mm
Interface PCIe 4.0 (x4)
Host Controller Interface NVMe 1.3
Controller
Flash Memory Type None
Max. Read 7000 MB/s
Max. Write 4194 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 930K IOPS
Max. Random Write 4K 190K IOPS
Latency N/A
Special Features UBER: <1 sector per 10^17 bits read
Power Consumption (active) 18W
Max. Endurance Rating 1 DWPD
MTBF 2 million Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x U.2
OS Support
Bracket N/A
Dimensions
Weight
Package Type
Additional Information
Scan Code LN115379
Model Number SSDPF2KX038TZ01
GTIN 735858456319
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
