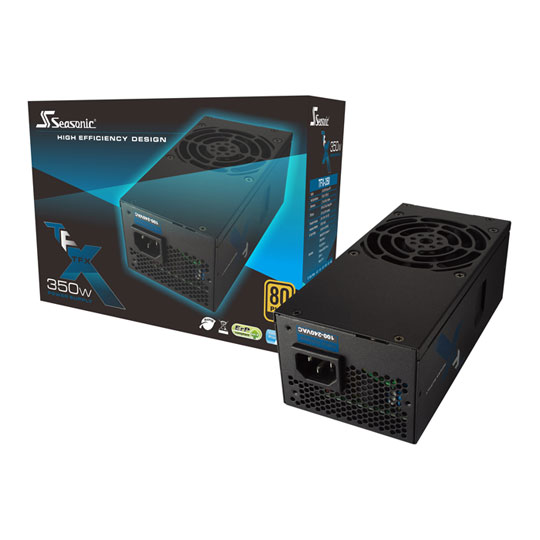

Seasonic TFX-350 Modular 350W Power Supply

350W Seasonic TFX-350 SS-350TGM, Full Modular, 80 PLUS Gold, Dual Rail, EPS 12V, 80mm Quiet Fan, TFX, PSU - Black

Seasonic
Scan code: LN62999 Manufacturer code: SS-350TGM Request call
£69.98Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Fully Modular 350W TFX BLack Power supply for Intel & AMD Based Compact PCs. Features • 80 PLUS Gold Certified
• Smart and Silent Fan Control [S FC]
• DC to DC Converter Design
• 8 cm Ball Bearing Cooling Fan
• 5 Years Warranty
• Conductive Polymer Aluminum Solid Capacitors
• Highly Reliable 105C Japanese Brand Capacitors
• Tight Voltage Regulation [} 3 %]
• Ample +12 V Power Output
• Universal AC Input [Full Range]
• All-in-One DC Cabling Design
Specifications
Specifications
Size TFX
Edition TFX-350
Wattage 350 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency
Cooling Fan
Fans 1 x 80mm
Internal +12V Rails Dual Rail
Rail 1 +12V 18 A
Rail 2 +12V 18 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 36 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 1 x 4+4pin CPU +12V
  • 2 x 4pin Molex
  • 1 x 6+2pin PCI-E Power
  • 1 x FDD Power
  • 4 x SATA Power
Dimensions 85 x 65 x 175 mm (WxHxD)
