Scan code: LN105261 Manufacturer code: TCSV100SM-32GB-PB

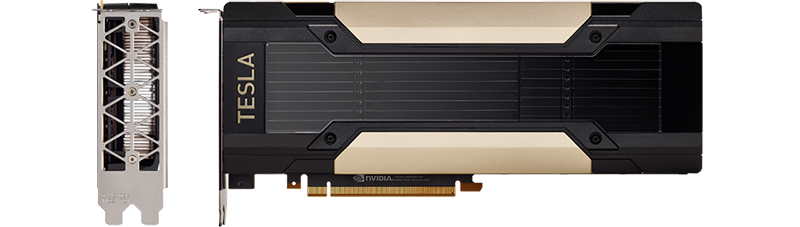

PNY 32GB NVIDIA Tesla V100S PCIe Module Accelerator Card

32GB PNY NVIDIA Tesla V100S PCIe Module Accelerator Card, PCIe 3.0 (x16), Volta, 5120 Core, 16.4 Tflops SP, Passive

Thumbnail 1 : PNY 32GB NVIDIA Tesla V100S PCIe Module Accelerator Card Thumbnail 2 : PNY 32GB NVIDIA Tesla V100S PCIe Module Accelerator Card Thumbnail 3 : PNY 32GB NVIDIA Tesla V100S PCIe Module Accelerator Card Thumbnail 4 : PNY 32GB NVIDIA Tesla V100S PCIe Module Accelerator Card
Scan code: LN105261 Manufacturer code: TCSV100SM-32GB-PB
£8,399.99Item currently awaiting an ETA
Pre order
From £229.42 / month (APR 14.9%)
Monthly Payment: £754.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,399.99
Total inc. interest: £9,049.10
Monthly Payment: £403.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,399.99
Total inc. interest: £9,676.53
Monthly Payment: £286.97
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,399.99
Total inc. interest: £10,330.85
Monthly Payment: £229.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,399.99
Total inc. interest: £11,011.89
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

32GB PNY NVIDIA Tesla V100S PCIe Module Accelerator Card

Quadro RTX

The Most Advanced Data Centre GPU Ever BuiltNVIDIA® Tesla® V100S is the world’s most advanced data centre GPU ever built to accelerate AI, HPC, and graphics. Powered by NVIDIA Volta™, the latest GPU architecture, Tesla V100S offers the performance of up to 100 CPUs in a single GPU—enabling data scientists, researchers, and engineers to tackle challenges that were once thought impossible. Tesla V100 is the flagship product of Tesla data centre computing platform for deep learning, HPC, and graphics. The Tesla platform accelerates over 550 HPC applications and every major deep learning framework. It is available everywhere from desktops to servers to cloud services, delivering both dramatic performance gains and cost savings opportunities.
Includes 1 x PCIe 8-pin to single CPU 9-pin power adapter.

5120 / 640CUDA / Tensor Cores

32GBHBM2 Memory

16,4 TflopsSingle Precision Performance

8,2 TFLOPSDouble Precision Performance

130 TflopsTensor Performance

Real Time Means Real Breakthroughs

down

VOLTA ARCHITECTUREBy pairing CUDA Cores and Tensor Cores within a unified architecture, a single server with Tesla V100S GPUs can replace hundreds of commodity CPU servers for traditional HPC and Deep Learning.

up

TENSOR COREEquipped with 640 Tensor Cores, Tesla V100S delivers 120 TeraFLOPS of deep learning performance. That’s 12X Tensor FLOPS for DL Training, and 6X Tensor FLOPS for DL Inference when compared to NVIDIA Pascal™ GPUs.

up

HBM2With a combination of improved raw bandwidth of 900 GB/s and higher DRAM utilisation efficiency at 95%, Tesla V100 delivers 1.5X higher memory bandwidth over Pascal GPUs as measured on STREAM.

up

MAXIMUM EFFICIENCY MODEThe new maximum efficiency mode allows data centres to achieve up to 40% higher compute capacity per rack within the existing power budget. In this mode, Tesla V100S runs at peak processing efficiency, providing up to 80% of the performance at half the power consumption.

up

PROGRAMMABILITYTesla V100S is architected from the ground up to simplify programmability. Its new independent thread scheduling enables finer-grain synchronisation and improves GPU utilisation by sharing resources among small jobs.

Specifications
Key Specifications
Graphics Chipset NVIDIA Tesla V100
Edition PNY NVIDIA Tesla V100S
Manufacturing process 12 nm
Microarchitecture Volta
GPU Name
Cores & Clocks
NVIDIA CUDA Cores 5120
Core Clock
Boost Clock
Video Memory (VRAM)
Memory Size 32 GB
Memory Type HBM2
Memory Clock
Memory Bit Rate 4096 Bit
Memory Bandwidth 1134 GB/s
ECC Technology Yes
Cooling
Cooling Passive
I/O & Connectivity
Interface PCIe 3.0 (x16)
Interface Bandwidth
Graphics Output
Visuals
Multi GPU Support
NVLink Support N/A
Total NVLink Bandwidth N/A
Microsoft DirectX Support
HDCP Ready No
Multi Monitor Support
Concurent Users N/A
H.264 1080p30 Streams N/A
Maximum Digital Resolution
Maximum VGA Resolution
Supported Graphics APIs
Compute Performance
Supported Compute APIs
  • CUDA
  • DirectCompute
  • OpenACC
  • OpenCL
Single Precision (FP32) Processing Yes
Single Precision (FP32) Performance 16.4 teraFLOPS
Double Precision (FP64) Processing Yes
Double Precision (FP64) Performance 8.2 teraFLOPS
Tensor Processing Yes
Deep Learning (Tensor) Performance 130 teraFLOPS
NVIDIA Tensor Cores 640
Integer Operations (INT8)
Ray-Tracing
NVIDIA RT Cores
RTX-OPS
Rays Cast
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Board Power 250 W
Minimum Recommended PSU
Maximum GPU Temperature
Physical
Form Factor Dual Slot
Low Profile Compatible No
Low Profile Support
Dimensions 111.15 x 267.7 mm
Package Type Retail
Additional Information
Scan Code LN105261
Model Number TCSV100SM-32GB-PB
GTIN 3536403375157
