Adam Hall - 'K 28 C 30' Stage Box

Adam Hall

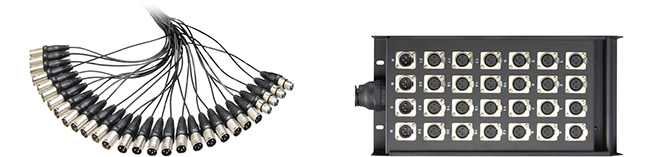

Multicore with Stage Box 24/4 30 m The ‘K 28 C 30’ from Adam Hall is a 28-channel (24 send and four return paths) multicore with permanently attached 30-metre cable ending in Adam Hall XLR plugs. This is a metal stage box which has a solid strain relief in the transitional area between box and cable. The sides protect the sockets on the stage box against damage and it has a built-in handle for easy handling and prepared mounting possibilities. The additionally reinforced transition to the terminations prevents fatigue and cable breakage.


28Channels

24/4Pin-out

30mLength

The Tech Spec

Features Specification
Type Multicore cable
Channels 28
Pin-Out 24/4
Length 30 m
Colour Black
Cable diameter 23.6 mm
Connector 1-A (stage box) XLR
Number of connectors connector 1-A 24
Gender of connector 1-A Female
Connector 1-B (stage box) XLR
Number of connectors connector 1-B 4
Gender of connector 1-B Male
Connector 2-A (Splice) XLR
Number of connectors connector 2-A 24
Gender of connector 1-A Male
Connector 2-B (splice) XLR
Number of connectors connector 2 4
Gender of connector 2 Female
Specifications
Connector A
  • 24 x XLR Female (3 Pin)
  • 4 x XLR Male (3 Pin)
Connector B
  • 4 x XLR Female (3 Pin)
  • 24 x XLR Male (3 Pin)
Length 30 Metre
Cable Quality High Quality - Suitable for Heavy / Live Use
Additional Information
Scan Code LN105151
Model Number K28C30
GTIN 4049521032424
