Scan code: LN1158 Manufacturer code: C-CABLE-LSOH-300-UTP

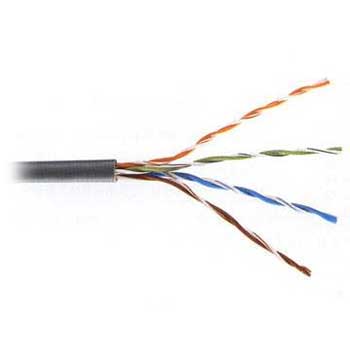

305m SOLID CABLE (LSZH) VIOLET Low Smoke Cat5e Cable

305m LMS-DATA LSZH (Low smoke) CAT-5e Boxed Reel RJ45 UTP Purple Cable 10/100/GbE 24AWGx4 Solid Pair

Thumbnail 1 : 305m SOLID CABLE (LSZH) VIOLET Low Smoke Cat5e Cable
305m SOLID CABLE (LSZH) VIOLET Low Smoke Cat5e Cable : image 1
Scan code: LN1158 Manufacturer code: C-CABLE-LSOH-300-UTP
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Aug 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview LSZH Version (Low-Smoke)

SuperLAN from LMS Data offers your Data and Voice installations the bandwidth to cope with current and future Networking technologies.

SuperLAN CAT5E is a fully cross-compliant Category 5E Enhanced 4-Pair 24AWG (American wire gauge) solid core with improved NEXT, ELFEXT and SNR (Signal-to-noise Ratio)
performance to help you exceed your installation objectives and allow excellent frequency headroom for compliance with future networking
technologies without the need to replace the cabling.

Fully Gigabit (1000BaseT), ATM622 and backward Fast Ethernet Compliant, SuperLAN from LMS Data comes in standard 305 metre (1000Ft) reverse
metre-marked EasyPull™ snag-free dispensing hard wearing boxes.

Features • Type: UTP 24AWG x 4 solid Pair with PVC metre marked sheath
• Performance: CAT5E (enhanced) 1000BaseT (Gigabit)
• ATM-622 Compliant, 10/100BaseT Compliant
• Standards: ISO/IEC-11801, ETA/TIA-568B, UL Approved
• EC Verified, RoHS Standard, international approvals
• Conductor Resistance: = 9.5O/100 metres
• Insulation Resistance: = 5000MOKm (DC500V Charged 1 Min)
• Conductor: Soft annealed bare copper, 1/0.50 composition
• Insulation (Outer): PVC light Purple sheath (LSZH optional) (low Smoke), Rip Cord
• Insulation (Inner): HDPE insulate, white/blue, white/orange white/green, white/brown, 0.20mm thickness
• Cable Dispensing: EasyPull 305m (1000ft) box design, reverse metre marked on cable, snag-free design
Length 305 m
Connector From
Connector To
Connector Features
Cable Features
Colour Grey
Total Weight

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
