Scan code: LN76410 Manufacturer code: SYS-2028TP-HC1TR

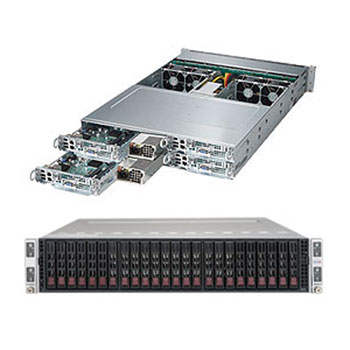

SuperMicro 2U SuperServer SYS-2028TP-HC1TR

2U SuperMicro SuperServer 2028TP-HC1TR, For Intel Xeon processor E5-2600 v4/ v3 family,

Scan code: LN76410 Manufacturer code: SYS-2028TP-HC1TR
£5,134.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview SuperMicro 2U SuperServer 2028TP-HC1TR Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s.
• Up to 2TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz ; 16x DIMM slots.
• 1x PCI-E 3.0 x16 slot.
• Intel® X540 Dual port 10GBase-T LAN.
• Integrated IPMI 2.0 with KVM and Dedicated LAN.
• 6x 2.5" Hot-swap SAS/SATA HDD Bays.
• LSI 3108 SAS3 controller (6 ports); RAID 0, 1, 5, 6, 10, 50, 60.
• 2000W Redundant Power Supplies Titanium Level (96%).
Form Factor 2U Rackmount
CPU Included No
CPU Type Intel Xeon
CPU Model
Manufacturing Process
Unlocked CPU No
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 2011
Chipset Intel C612
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 2TB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)
Expansion Slots 1 x PCIe 3.0 x16 (LP)
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays 6 x 2.5" SAS/SATA Hot-Swap
Backplane I/O
RAID Support SAS
Internal I/O 6 x SAS 12Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
  • 1 x D-Sub (VGA) Out
  • 2 x RJ-45
  • 1 x RJ45 Dedicated IPMI port
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 2000 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black/ Silver
Dimensions 438 x 88 x 730 (mm WxHxD)
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN76410
Model Number SYS-2028TP-HC1TR
GTIN 672042165490
