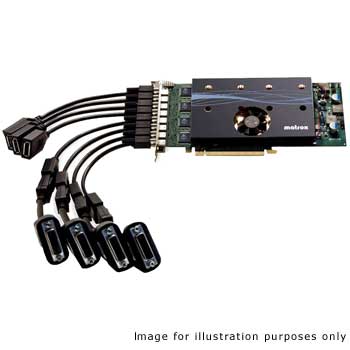

Matrox M9188 Octal Graphics Card 2GB PCI Express Graphics Card

2GB Matrox M9188 Octal Graphics Card, PCI-E (x16) , 8x mini DisplayPort, Fan Cooling

Matrox
Scan code: LN37687 Manufacturer code: M9188 Request call
£1,535.48Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance. Features High-resolution eight DisplayPort or DVI monitor support
Support resolutions up to 2560 x 1600 (DisplayPort) and 1920 x 1200 (DVI) per output

Native PCI Express (PCIe) x16 performance
Maximum bandwidth to ensure best performance

2 GB of memory
For enhanced performance in demanding multi-monitor control room monitoring applications

ATX form factor

Stretched and independent desktop modes
Expand your desktop across multiple monitors or set each monitor independent of each other

Edge Overlap New for Windows 7
Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.

M-Series multi-card support
Add an additional M-Series card into the same system to drive up to 16 displays from two cards

Joined graphics card mode
Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop

Matrox Clone
View a copy of one display on the other displays

Wide enterprise flexibility
Unified driver package compatible with other Matrox products

Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors

Multiple operating system support
Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Specifications
• Independent Desktop Mode
• Stretched Desktop Mode
• Matrox Clone
• Pivot Support
• Unified Driver Package
• PowerDesk Software
• Bus Type: PCIe x16
• Graphics Memory: 2048MB
• Card Form Factor (PCB / bracket): ATX
• Card Dimensions: 9.0" (L) x 4.4" (H)
• On-board Connectors: 8 x Mini DisplayPort
• Connector Adapters: 8 x Mini DisplayPort to DisplayPort, 8 x DisplayPort to DVI
• Supported Display Output Types: DisplayPort , DVI SL
• Max DisplayPort Resolution per Output: 2560x1600
• Max DVI Resolution per Output: 1920x1200
EMC Certifications: Class B
Specifications
Specifications
Chipset M9188
Chipset Features OpenGL 2.0
Memory Size 2GB
RAMDAC Frequency
Interface PCIe (x16)
Connectivity 8 x mini DisplayPort
Cooling Single Fan (1)
Other Features RoHS
Video Output Standards
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
1 days
Manufacturer Contact Details
Manufacturer:
MATROX
Telephone:
01753 665522
