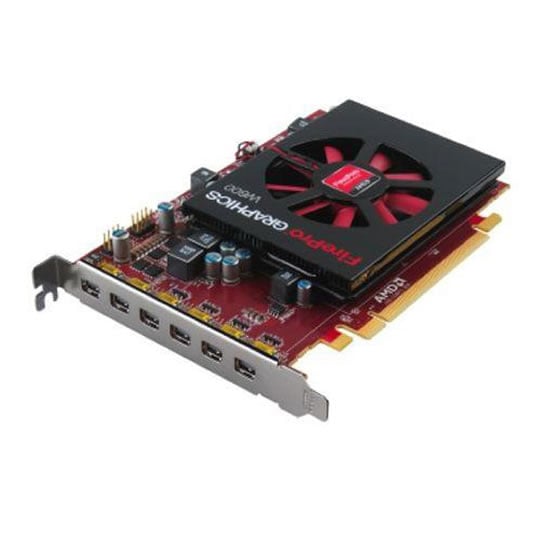

AMD FirePro W600 Graphics Card - 2GB

2GB AMD FirePro W600, PCIe 3.0 (x16), 128 bit GDDR5 Memory, 6x mini DisplayPort, Full height/ Half length

AMD
Scan code: LN46062 Manufacturer code: 100-505968 Request call
£513.49Item overdue since 07 December 2016
Pre order
Pay on Scan Finance with a 10% deposit from just £12.82 / month (APR 15.9%)
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview AMD FirePro™ W600 professional graphics is the ideal solution for powering display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. It’s the powerful, flexible and affordable multi-display professional graphics product the display wall market needs.

AMD FirePro™ W600 professional graphics is the most powerful solution available for configuring display walls featuring multiple displays – no other single-slot professional graphics card is capable of driving up to six displays (with independent audio streams), features the latest graphics memory technology for exceptional multimedia performance and only consumes 75W maximum power. Features • Six Mini DisplayPort outputs for driving six displays or projectors
• Bezel compensation and projector overlap
• Maximum resolution of 4096 x 2304, 30 bits per pixel at 60Hz
• Decode two simultaneous HD video streams
• 2GB graphics memory
• 75W maximum power consumption
• PCIe® x16 bus interface, PCIe® 3.0 compliant
• Full height / half-length form factor
• OpenGL 4.2 and DirectX® 11 support
Specifications
Specifications
Chipset FirePro W600
Edition N/A
Manufacturing process 28 nm
Microarchitecture
Cores N/A
Streams N/A
Core Clock
Boost Clock N/A
Memory Size 2GB
Memory Type GDDR5
Memory Clock
Memory Bus 128 Bit
Cooling Solution Single Fan (1)
Cooler Design
Included/Fitted Backplate No
Interface PCIe 3.0 (x16)
Connectivity 6 x mini DisplayPort
Maximum Digital Resolution 4096x2160
Maximum Analog (VGA) Resolution
Max. Concurrent Displays 6 Displays
NVIDIA SLI Support
GeForce GTX VR Ready No
Microsoft DirectX Support
HDCP Ready Yes
Width Single Slot
Low Profile Compatible No
Low Profile Support N/A
Graphics Card TDP/Power 75W
Graphics Card Power Connectors
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan / AMD Europe
Telephone:
01276 932318
