Scan code: LN20551 Manufacturer code: P69-MDDE256LAUF

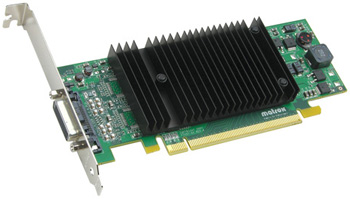

Matrox P690 Graphics Card

256MB Matrox P69-MDDE256LAUF, Millennium P690, PCI-E (x16), LFH-60, Low Profile, Passive Cooling

Scan code: LN20551 Manufacturer code: P69-MDDE256LAUF

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Call for price

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Suggested alternatives

512Mb Matrox M9120-E512LAU1F PCIe x1 Low Profile DualHead, 1920x1200 digital/analog, Passive cooling LN24068
£214.49£5.48 NEXT DAY DELIVERY
Pre Order
Pre order
No customer review

Product Overview Reliable, ultra-low power graphics solution with wide enterprise flexibility
The low-profile Matrox Millennium P690 Plus LP PCIe x16 offers 256MB of graphics memory, full DualHead® support for two digital or analog monitors at high resolution and pristine image quality, and can be upgraded (via a Quad-HD15 cable) to drive four analog monitors. With ultra-low power consumption, fanless cooling, and unified display drivers for easy deployment across multiple systems, the P690 Plus LP PCIe x16 is suitable for a wide range of professional applications. This graphics card builds upon the reliability, stability, and features of the proven Millennium P-Series product line, making it an ideal choice for use in long-life environments.

Features • Card type: PCIe x16 (PCI Express x16)
• Graphics memory: 256 MB DDR2
• Bracket connector: LFH60
• Card form factor: LP (Low-Profile)
• Bracket form factor: ATX
• EMC certifications: Class A - ACA, CE, CSA, FCC, VCCI
• Maximum resolutions (per display):
• Digital, 1-2 monitors: 1920 x 1200
• Analog, 1-2 monitor: 2048 x 1536
• Analog, 3-4 monitors: 1920 x 1200

Matrox DualHead® technology with support for two digital or analog monitors at a time
Independent resolutions* and stretched desktop both supported
Native PCI Express x16 support
Low-profile form factor to fit in a wider variety of systems
Passive cooling (heat sink with no fan) for silent operation and extra reliability
Ultra low power consumption: 11.8 watts
Quad upgradeable option: An adapter cable with support for up to four analog monitors can be purchased separately to replace the factory-installed dual monitor cable
Can be combined with an additional P690 Plus LP PCIe x16 or P690 Plus LP PCI graphics card for a 512MB quad-display solution including support for a stretched taskbar across all four monitors
Unified driver package also compatible with other products in P-Series, G-Series, QID Series, MMS Series, Parhelia Series, and Extio Series
Display drivers for Windows XP and XP x64, Windows 2000, Windows Vista (XDDM) and Vista x64 (XDDM), Windows Server 2003 and Server 2003 x64
Easy-to-use Matrox PowerDesk desktop management software
Support for customizable unattended installation of drivers for multi-system set-up
Compatible with Matrox PowerSpace for augmented multi-display desktop functionality including multiple workspace configuration support, program autostart, desktop recall, RDP recognition support, and multi-system workspace import/export
Joined graphics card mode enables an additional Matrox DualHead or TripleHead graphics card to work in tandem in one system to drive up to four displays using advanced multi-card features
Widescreen resolution support and additional functionality via Matrox PowerRes
Display pivoting (rotation) support
Global sales and technical support
RoHS and WEEE compliant
Hardware included:
Matrox P690 Plus LP PCIe x16 graphics card (with factory-installed ATX bracket)
LFH60-to-DVI-I dual-monitor adapter cable (1 foot)
Two DVI-I-to-HD15 connector adapters
Separate low-profile bracket

Specifications
Chipset	P690
Chipset Features
Memory Size	256MB
RAMDAC Frequency
Interface	PCIe (x16)
Connectivity	1 x LFH-60
Cooling	Passive
Other Features	RoHS
