Scan code: LN111140 Manufacturer code: SB-ROCKET-256

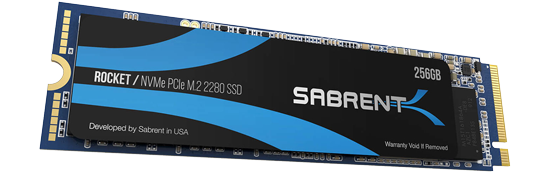

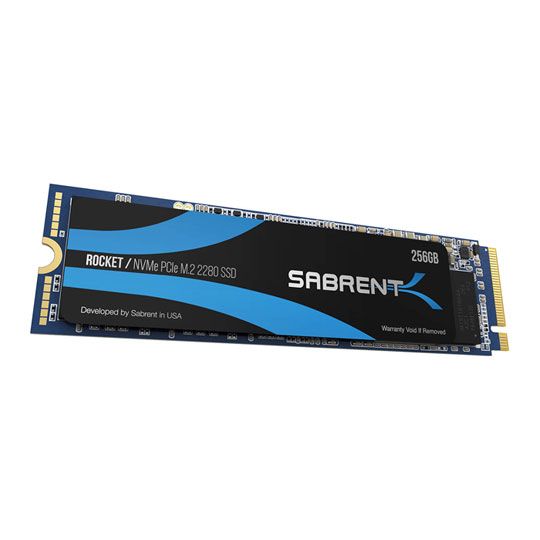

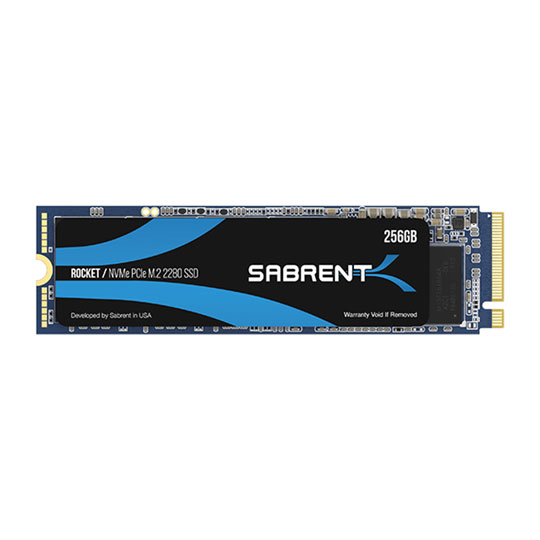

Sabrent Rocket 256GB NVMe PCIe M.2 Solid State Drive

256GB Sabrent Rocket M.2 (2280) NVMe PCIe 3.0 (x4) SSD, Phison, 3D TLC NAND, 3100MB/s Read, 1050MB/s Write,167k/256k

MORE INFO
MORE INFO
Thumbnail 1 : Sabrent Rocket 256GB NVMe PCIe M.2 Solid State Drive Thumbnail 2 : Sabrent Rocket 256GB NVMe PCIe M.2 Solid State Drive
Scan code: LN111140 Manufacturer code: SB-ROCKET-256
£37.99Item due on 01 June 2021
Pre Order
Due 1st Jun
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Exceptional Performance

The Sabrent 256GB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-256) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3100 MB/s (read) and 1050 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

Features

• M.2 PCIe Gen3 x 4 Interface.
• PCIe 3.1 Compliant / NVMe 1.3 Compliant.
• Power Management Support for APST / ASPM / L1.2.
• Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
• Advanced Wear Leveling, Bad Block Management, and Over-Provision.
Specifications
Capacity 256GB
Edition SB-ROCKET-256
Form Factor M.2 (2280)
Height 2.38 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller Phison PS5016-E16
Flash Memory Type Toshiba BiCS3 3D NAND TLC Flash
Max. Read 3100 MB/s
Max. Write 1050 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 167,000 IOPS
Max. Random Write 4K 256,000 IOPS
Latency N/A
Special Features
  • S.M.A.R.T Support
  • TRIM Support
Power Consumption (active) 5.1W (Read), 3.1W (Write)
Max. Endurance Rating
MTBF 1,800,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock 1500G
Max. Non-operating Shock 1500G
Connectivity 1 x M.2 (PCIe)
OS Support
Bracket N/A
Dimensions 22 x 2.35 x 80 mm (WxHxD)
Weight
Package Type Retail
