Intel 760p 256GB M.2 PCIe Performance NVMe SSD/Solid State Drive

256GB Intel SSD 760p Series, M.2 (2280) PCIe 3.1 (x4) NVMe SSD, TLC 3D NAND, 3210MB/s Read, 1315MB/s Write, 205k/265k

Thumbnail 1 : Intel 760p 256GB M.2 PCIe Performance NVMe SSD/Solid State Drive Thumbnail 2 : Intel 760p 256GB M.2 PCIe Performance NVMe SSD/Solid State Drive Thumbnail 3 : Intel 760p 256GB M.2 PCIe Performance NVMe SSD/Solid State Drive Thumbnail 4 : Intel 760p 256GB M.2 PCIe Performance NVMe SSD/Solid State Drive
Scan code: LN87927 Manufacturer code: SSDPEKKW256G8XT
£44.99
Order now and get it tomorrow, Fri 14th Aug
Delivery Options
  • By DPD On 14th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Intel 760p 256GB M.2 PCIe NVMe SSD

Intel 760p series 256GB SSD

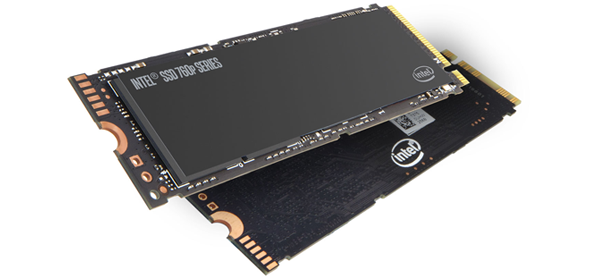

take your pc performance to new levels The Intel® 760p SSD Series combines PCIe performance, versatile capacities, and high-quality Intel® 3D NAND technology to deliver twice the performance and up to 50% of the power consumption than its previous generation. The 760p SSD by Intel features an M.2 thin profile with PCIe Gen3 x4, NVMe interfaces, and is ideal for a wide range of devices from desktops to laptops. The 760p SSD enables PC users to experience enhanced efficiency and achieve a seamless workflow.

256GB

M.222x80

PCIe 3.1NVMe

3210MB/sSequential Read

1315MB/sSequential Write

205K IOPSRandom Read

265K IOPSRandom Write

Twice the Performance. Half the Power Consumption The Intel 760p SSD is designed to effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The 760p SSD enables PC users to experience efficiency with the applications they care about, and up to 6x better performance than SATA SSDs.

Other Solid State Drives in the Intel 760p Series NVMe PCIe range:

128GB 512GB 1TB 2TB

Efficent Flexibility with Intel

capacity

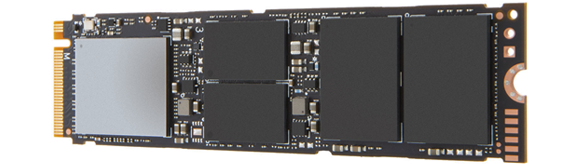

VERSATILE CAPABILITIES ALL IN ONE The Intel 760p SSD offers capacity points up to 512GB on single-sided M.2 (80mm), enabling system designers the flexibility to design for thin/light systems or to provide space for other components. The combination of Intel 3D NAND technology and PCIe enables Intel SSDs to push the limits of performance and value. The 760p SSD provides extended battery life through low power modes. It reduces idle consumption by compared to a typical hard disk drive, reducing power consumption from watts to milliwatts.

Quality and Reliability you can Trust

high performanceAccelerate your PC with PCIe* bandwidth, 64-layer Intel® 3D NAND Technology, twice the capacity, and twice the performance of its previous generation – the Intel® SSD 600p Series.

LOW POWER CONSUMPTIONCompared with its previous generation, the Intel® 760p SSD Series reduces its active power up to 50%.

INTEL 5 YEAR WARRANTYThanks to Intel’s industry leading quality and reliability, the Intel® 760p SSD Series supports AES 256-bit self-encryption and offers a 5-year limited warranty.

EASY INSTALLATIONA small M.2 (80mm) form factor offers a wide range of capacities and simply plugs into M.2 - M key slots on major motherboards..

Specifications
Capacity 256GB
Edition 760p Series
Form Factor M.2 (2280)
Height 2.38 mm
Interface PCIe 3.1 (x4)
Host Controller Interface NVMe
Controller
Flash Memory Type Intel 64-Layer TLC 3D NAND
Max. Read 3210 MB/s
Max. Write 1315 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 205,000 IOPS
Max. Random Write 4K 265,000 IOPS
Latency N/A
Special Features
  • AES 256-bit self-encryption
  • End-to-End Data Protection
  • Intel Rapid Start Technology Support
  • Intel Smart Response Technology Support
  • Intel Solid State Drive Toolbox w/ SSD Optimizer
  • UBER: <1 sector per 10^15 bits read
Power Consumption (active) 50mW
Max. Endurance Rating 144 TBW
MTBF 1,600,000 Hours
Max. Operating Vibration 2.17 GRMS
Max. Non-operating Vibration 3.13 GRMS
Max. Operating Shock 1000G
Max. Non-operating Shock 1000G
Connectivity 1 x M.2 (PCIe)
OS Support
Bracket N/A
Dimensions 22 x 2.38 x 80 mm (WxHxD)
Weight 10 g
Package Type Retail
Additional Information
Scan Code LN87927
Model Number SSDPEKKW256G8XT
GTIN 5032037118248
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Intel
Telephone:
08706072439
Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

SSDs
SSDs
Date Issued: 7th May 2010

Solid-state drives (SSDs) are fast becoming the must-have PC components of 2010. Serving as primary storage space for high-end computers, SSD's super-fast transfer rates and near-instant accesses offer genuine advantages over traditional spindle-based magnetic drives.

Read More

PCI Express
PCI Express
Date Issued: 20th Oct 2008

A motherboard’s main job is to act as a conduit between the various hardware elements that make up a PC. It needs to be able to link the desired CPU(s), system memory, graphics card, hard drive(s), and add-in cards and enable them to work in harmony.

Read More

Reviews
256GB Intel SSD 760p Series, M.2 (2280) PCIe 3.1 (x4) NVMe SSD, TLC 3D NAND, 3210MB/s Read, 1315MB/s Write, 205k/265k is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from video editing is faster and smoother easy to install and video editing is faster and smoother
Date published: 2020-04-06
Rated 5 out of 5 by from Great fast NVME drive. I had A Western Digital black 256GB NVMe drive in my my PC was was struggling to break the 1700MB/s read barrier often seen on the 256GB drive (yes I had a heatsink on the controller but not the flash ram) (note the WD 250gb NVME drive is much faster I have one in another PC) , plus my Daughter wanted a new PC So I've 'given her my 256GB WD black as part of her new build and 'upgraded' my NVMe drive to this Intel 760P drive. wow my max read speeds have jumped up from well under 1700MB/s to 2679MB/s and thats with all to normal windows stuff going on in the background.... impressive. I've using an EK NVMe heatsink but with a modified back plate to allow me to trim the thermal pads and move the clips to just cool the controller not the Flash ram again as I did with my WD drive cooling the flash ram considerably shortens its write cycles..(kills the drive quicker) But on the other hand cooling the controller stops thermal throttling when writing large files like large video edits. If you don't write lots of large files or continuously bench mark your drive you'd be better off with no heatsink on this drive at all. There is really noticable difference when loading large video files . For performance per £ this is one of the best drives I've come across.
Date published: 2019-02-12
Rated 5 out of 5 by from Class Item. Very good M.2 from Intel,Fast and with a reasonable price. very happy with this. I would recommend this ssd to anyone.
Date published: 2018-08-20
  • y_2020, m_8, d_11, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_87927, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Can 256GB Intel SSD 760p Series PCIe 3.1 (x4) be used with PCIe 3.0 (x4) motherboards?

Asked by: wysiwug
Hi, Intel state the interface is PCIe NVMe 3.1 x4 too however they are backwards compatible with earlier PCIe generations. https://ark.intel.com/products/134583/Intel-SSD-760p-Series-256GB-M-2-80mm-PCIe-3-0-x4-3D2-TLC- Regards,
Answered by: JackB
Date published: 2018-11-06

When is this item likely to be back in stock?

Asked by: Jacobm1778482
Good Afternoon, I'm afraid we do not currently have an ETA on this at the moment, as soon as we are provided with one the website will be updated. If you've pre-ordered, we will email you directly as soon as we have received an update from the supplier. Kind Regards,
Answered by: LukeW
Date published: 2019-09-04
