New
Scan code: LN109301 Manufacturer code: GP-UDPRO256G

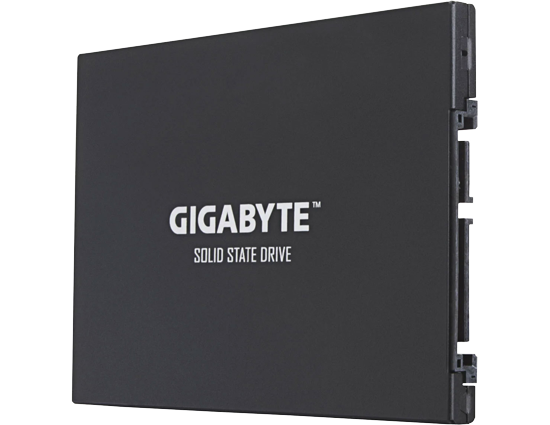

Gigabyte UD PRO 256GB 2.5" SATA SSD/Solid State Drive

256GB Gigabyte UD PRO, 2.5" SSD, SATA 3.0 (6Gb/s), TLC 3D NAND, 256MB Cache, 550MB/s Read, 530MB/s Write, 98k/89k IOPS

Thumbnail 1 : Gigabyte UD PRO 256GB 2.5" SATA SSD/Solid State Drive Thumbnail 2 : Gigabyte UD PRO 256GB 2.5" SATA SSD/Solid State Drive Thumbnail 3 : Gigabyte UD PRO 256GB 2.5" SATA SSD/Solid State Drive
Scan code: LN109301 Manufacturer code: GP-UDPRO256G
£44.99Item due on 30 August 2020
Due 30th Aug
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

256GB Gigabyte UD PRO 2.5" SATA III Solid State Drive

Gigabyte UD PRO 256GB 2.5-inch SATA SSD

Superior Performance & Stability Introducing the 256GB Gigabyte UD PRO 2.5" SATA SSD, featuring rapid sequential read/write speeds. This 2.5" form factor features a height of just 7mm and a SATA 6.0Gb/s interface. Discover incredible computing with storage capabilities and experience an SSD that includes SSD Tool Box, the application that assists users in monitoring their SSD Status. 3D TLC NAND Flash offers blazing speed, high capacity and enhanced reliability. Plus, featuring external DDR3 DRAM Cache for better sustainable speed. With both high data transferring speed and enhanced endurance, GIGABYTE provides MTBF of 1‎.6M hours and 5 years limited warranty.


2.5" / 256GB CapacitySATA 3.0 (6Gb/s)

550 / 530 MBsMaximum Read / Write

98K / 89K IOPSRandom Read / Write

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD's firmware version and system hardware & configuration.
Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.
* TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 5-year or 175TBW, whichever comes first.

Other Solid State Drives in the Gigabyte UD PRO 2.5" SATA III range:

256GB 512GB 1TB

What are the Benefits of 3D NAND Flash?

SSD NAND Flash

Industry-leading 3D NAND Flash What users get from 3D NAND Flash is higher density and capacity, faster programming, more reliability and it uses less power. GIGABYTE UD PRO series SSDs adopt 3D TLC NAND flash, which has higher bit capacity, R/W speed performance, endurance and reliability compared to 2D TLC flash. Moreover, with an optimized controller and firmware, GIGABYTE UD PRO series SSDs provide excellent performance for a smooth PC experience.

External DDR3L SDRAM Cache

SSD cache

SUPERB, POWERFUL PERFORMANCE. The UD PRO SSD is equipped with high speed SDRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.

Monitor Your Drive with SSD Tool Box

SSD Tool Box

learn more about the health of your drive The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
* SSD tool box function may vary by model.

Specifications
Capacity 256GB
Edition UD PRO
Form Factor 2.5"
Height 7 mm
Interface SATA 3.0 (6Gb/s)
Host Controller Interface AHCI
Controller
Flash Memory Type TLC NAND
Max. Read 550 MB/s
Max. Write 530 MB/s
DRAM Cache Memory 256MB
DRAM Cache Memory Type
Max. Random Read 4K 98,000 IOPS
Max. Random Write 4K 89,000 IOPS
Latency N/A
Special Features
  • Gigabyte SSD Tool Bbox Support
  • S.M.A.R.T Support
  • TRIM Support
Power Consumption (active) 2.1W (Read), 2.0W (Write)
Max. Endurance Rating 175TBW
MTBF 1,600,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x SATA 3.0 (6Gb/s)
OS Support Windows OS
Bracket N/A
Dimensions 69.85 x 7 x 100 mm (WxHxD)
Weight
Package Type Retail
Additional Information
Scan Code LN109301
Model Number GP-UDPRO256G
GTIN 4719331808624
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster
