Scan code: LN104590 Manufacturer code: SEDC1000BM8/240G

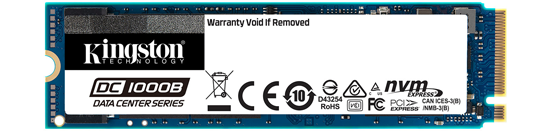

Kingston DC1000B 240GB M.2 PCIe NVMe SSD/Solid State Drive

240GB Kingston DC1000B, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, 2200MB/s Read, 290MB/s, 111k/12k IOPS

Thumbnail 1 : Kingston DC1000B 240GB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 2 : Kingston DC1000B 240GB M.2 PCIe NVMe SSD/Solid State Drive
Scan code: LN104590 Manufacturer code: SEDC1000BM8/240G
£87.98Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Kingston DC1000B Data Center Series SSD

240GB Kingston DC1000B SSD

Kingston’s Data Center DC1000B is a superbly high-performance M.2 NVMe PCIe SSD using the latest Gen3 interface with 64-layer 3D TLC NAND. DC1000B is preferably suitable to be used in high-volume rack-mount servers as an internal boot drive(s) as well as for use in tailor-made systems, where a superior M.2 SSD is desirable that includes on-board power loss protection (PLP). The DC1000B provides data centers an economical boot drive solution with the assurance they are purchasing a solid state drive engineered for server use.

240GB / M.2 (2280)Capacity / Form Factor

2,200 / 290 MBsMaximum Read / Write

111K / 12K IOPSRandom Read / Write

Enterprise Data Centre NVMe Boot SSD

Whitebox and Tier 1 Server OEMs are starting to equip server motherboards with one, or occasionally two M.2 sockets for boot resolutions. While the M.2 form-factor was initially intended as a client SSD form-factor, its small bodily size and high-performance make it eye-catching for server use. M.2 NVMe SSDs are developing within the data center providing proficiencies in booting servers to preserve valuable front-loading drive bays for data storage. Not all SSDs are produced alike and using a client SSD in a server application may result in reduced, inconsistent performance.

Other brands of boot drives are used predominantly for booting an OS, but in many instances today the boot drive has another purpose by logging application data and/or configured as a high-speed local cache drive. Hence, the Kingston DC1000B was created with additional durability (0.5 DWPD for 5-years) to handle the OS workload as well as the extra write workload of caching and data logging. Designed for long-term reliability the DC1000B is intended to offer enterprise-level performance, consistency and low latency features normally not established on client SSDs.

Fine-Tuned Kingston DC1000B Key Features

battery life

M.2 (2280) NVMe Performance Incredible speeds of up to 2.6GB/s and 200K IOPS.


Optimized Server Boot Drive Enhanced for boot workloads as well as caching and logging applications.


Power Loss Protection Reduce the possibility of data loss and/or corruption on ungraceful power-off.


Maximize Drive Bays Move boot drives internally frees up front loading drive bays for additional data storage.


Application optimized Other capacities keep costs low.



Self-Encrypting Drive (SED) with AES-XTS 256bit.

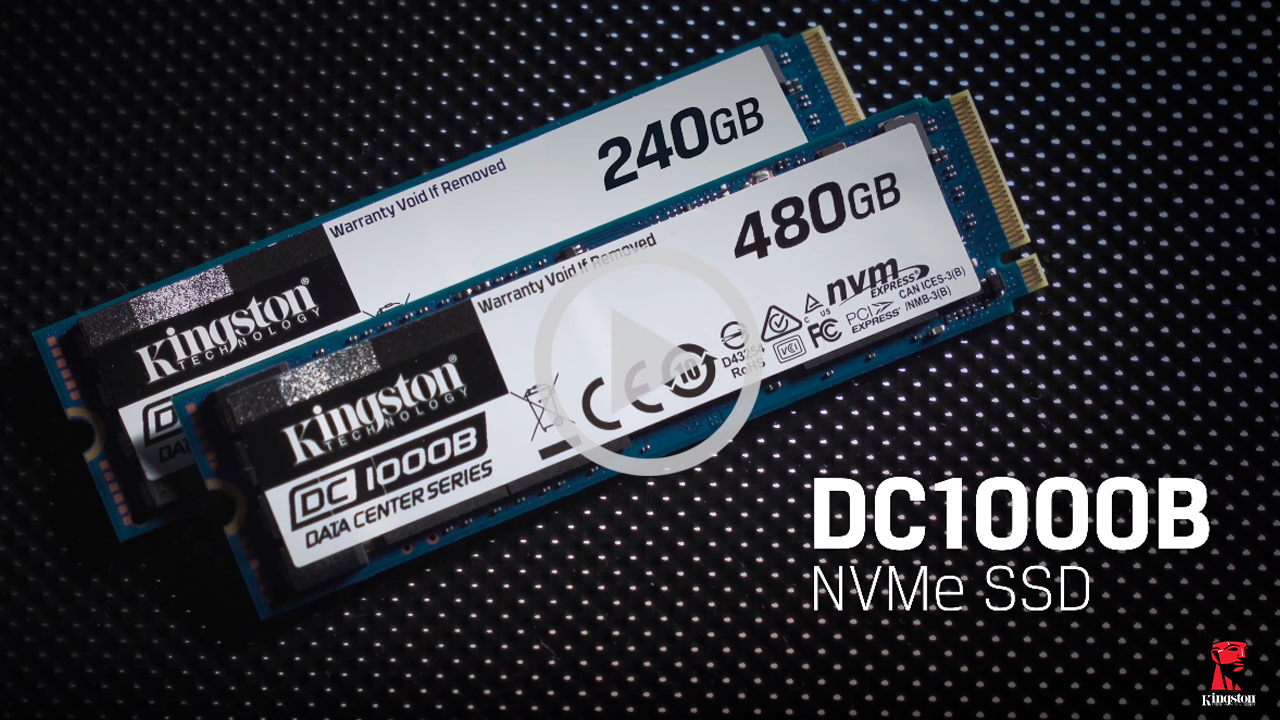

Kingston M.2 Optimized Server Boot Drive

video image
Capacity 240GB
Edition DC1000B 240GB
Form Factor M.2 (2280)
Height 22 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Flash Memory Type 3D NAND
Max. Read 2,200 MB/s
Max. Write 290 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 111,000 IOPS
Max. Random Write 4K 12,000 IOPS
Latency 161/75µs
Special Features Power-Loss Protection (Data-At-Rest)
Power Consumption (active) 3.56W
Max. Endurance Rating 0.5 DWPD/5yrs
MTBF 2,000,000 Hours
Max. Operating Vibration 2.17g (7-800Hz)
Max. Non-operating Vibration 20G (10-2,000Hz)
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x PCIe 3.0 (x4)
OS Support
Bracket N/A
Dimensions 3.5 x 22 x 80 mm (WxHxD)
Weight 8.5 g
Package Type Retail
Additional Information
Scan Code LN104590
Model Number SEDC1000BM8/240G
GTIN 0740617303599
