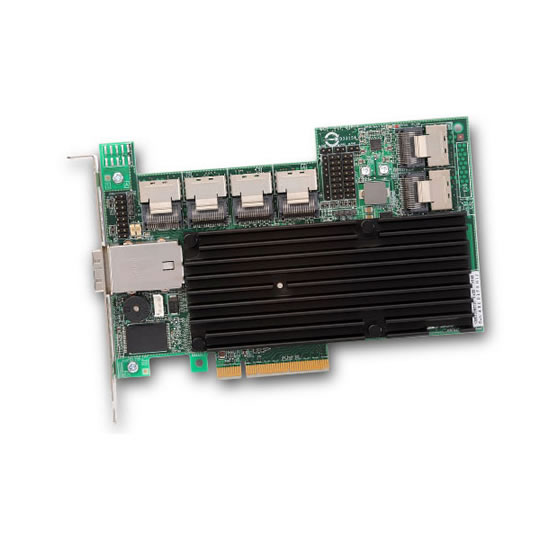

LSI MegaRAID SAS 9280-24i4e SGL - 24-Port Internal 4 Port External SAS/SATA Controller

24 Port LSI MegaRAID SAS 9280-24i4e SGL 4-Port Ext., 6Gb/s SATA+SAS, PCIe 2.0, 512MB

LSI
Scan code: LN43403 Manufacturer code: LSI00211 Request call
£1,279.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview LSI™ MegaRAID SATA+SAS controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges driven by unprecedented data growth. The MegaRAID SAS 9280-24i4e, with twenty-four internal and four external ports, supports both internal drive storage and external JBOD expansion for up to 240 SATA or SAS drives. With a large number of internal ports, the 9280-24i4e connects up to 24 drives inside the server via direct connection or passive backplane. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.

• Twenty-four internal + four external 6 GB/s SATA+SAS ports.
• Six internal mini-SAS SFF-8087 x4 connectors.
• One mini-SAS SFF-8088 external connector.
• 6 GB/s throughput per port.
• PCI Express 2.0 x 8 host interface.
• 512MB DDRII cache (800MHz).
• Connect up to 240 SATA and/or SAS devices. Features http://www.lsi.com/channel/products/storagecomponents/Pages/MegaRAIDSAS9280-24i4e.aspx
Specifications
Specifications
Ports Total 28 Port
Ports Internal 24 Int Ports
Ports External 4 Ext Ports
Connectors
  • 6 x Mini SAS
  • 1 x SFF-8088
Interface PCIe 2.0 x8
JBOD No
RAID Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
  • RAID 6
  • RAID 60
Low Profile Compatible No
Cables Inc.
Cache Memory 512MB
