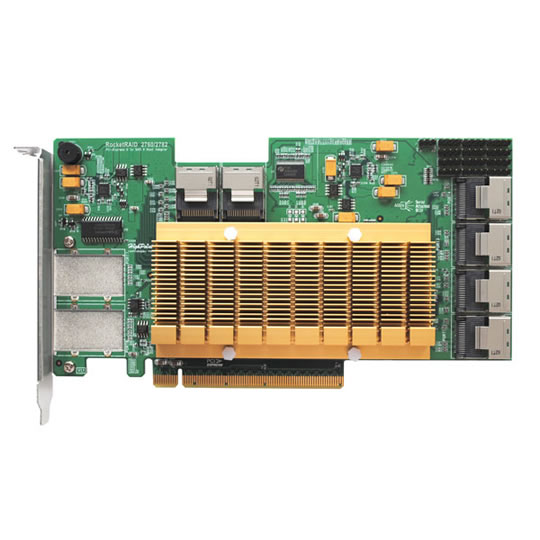

HBA SAS Raid Card 24 port Internal SFF-8087 / 8 Port External SFF-8088
Scan code: LN41291
Manufacturer code: RR2782
End Of Life
HBA SAS Raid Card 24 port Internal SFF-8087 / 8 Port External SFF-8088
24 Port Highpoint RocketRAID 2782 x16 PCI-e 2.0, 24 int / 8 Ext, Raid Level 0, 1, 5, 10, 50, JBOD
Scan code:
LN41291
Manufacturer code:
RR2782
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
RocketRAID 2700 HBA’s - High Port Count Series
Available with up to 32 dedicated ports, RocketRAID high port count SAS RAID HBA’s provide maximum port count and deliver a connectivity bandwidth up to 19200 MB/s; ideal for a wide-range of high-performance and high-density storage applications.
RocketRAID RR2782 PCI-E Gen 2.0 x16 SAS Switch Architecture:
HighPoint’s PCI-E Gen 2.0 x16 SAS Switch Architecture is a revolutionary hardware design which aggregates multiple SAS Controllers to deliver maximized performance, overcoming the performance bottleneck of conventional HBA’s.
Feature Highlights:
• Alarm/Buzzer: Yes.
• Activity/Fail LED: Yes (Internal only). Features Controller Specification:
• PCI-Express Bus: 2.0 x16.
• Port Count: 24 Internal / 8 External.
• Connector Type: SFF-8088/ SFF-8087.
• RAID Level: 0, 1, 5, 10, 50, JBOD.
• Form Factor: Full Height.
Dimensions:
• 7.99 in(L) X 4.37 in(W).
Card Information:
• Operating Temperature:
- Work Temp: +5°C to + 55°C.
- Storage Temp: -20°C to +80°C.
- Relative Humidity: 5% to 60% non condensing.
• Operating Voltage: 3.3V (4W max) / 12V (1W max).
• Regulator Certification: EMI: FCC Part 15 Class B and CE.
• MTBF: Mean Time Before Failure 920,585 Hours.
Available with up to 32 dedicated ports, RocketRAID high port count SAS RAID HBA’s provide maximum port count and deliver a connectivity bandwidth up to 19200 MB/s; ideal for a wide-range of high-performance and high-density storage applications.
RocketRAID RR2782 PCI-E Gen 2.0 x16 SAS Switch Architecture:
HighPoint’s PCI-E Gen 2.0 x16 SAS Switch Architecture is a revolutionary hardware design which aggregates multiple SAS Controllers to deliver maximized performance, overcoming the performance bottleneck of conventional HBA’s.
Feature Highlights:
• Alarm/Buzzer: Yes.
• Activity/Fail LED: Yes (Internal only). Features Controller Specification:
• PCI-Express Bus: 2.0 x16.
• Port Count: 24 Internal / 8 External.
• Connector Type: SFF-8088/ SFF-8087.
• RAID Level: 0, 1, 5, 10, 50, JBOD.
• Form Factor: Full Height.
Dimensions:
• 7.99 in(L) X 4.37 in(W).
Card Information:
• Operating Temperature:
- Work Temp: +5°C to + 55°C.
- Storage Temp: -20°C to +80°C.
- Relative Humidity: 5% to 60% non condensing.
• Operating Voltage: 3.3V (4W max) / 12V (1W max).
• Regulator Certification: EMI: FCC Part 15 Class B and CE.
• MTBF: Mean Time Before Failure 920,585 Hours.
