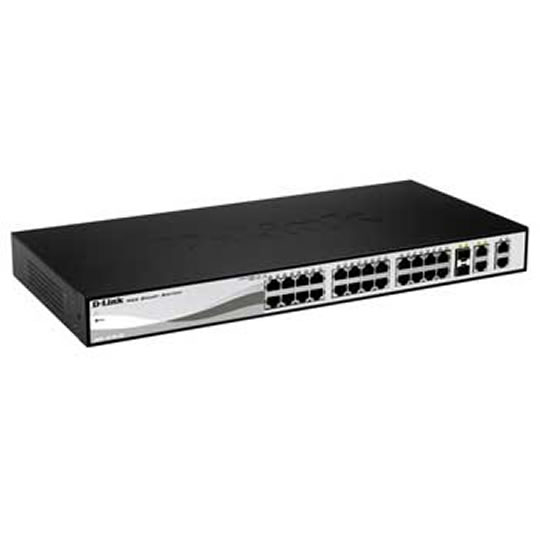

Port Dlink DES-1210-28P 24 10/100 Power over Ethernet (PoE) Network Switch

24 Port Dlink DES-1210-28P 10/100 Mbps EasySmart PoE Network Switch

D-Link
Scan code: LN37191 Manufacturer code: DES-1210-28P Request call
£208.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview The DES-1210 Series is the latest generation of Smart Switches. Equipped with 8, 24 or 48 Fast Ethernet ports, 2 Gigabit ports and 2 combo Gigabit/SFP ports3, this series offers all the features needed in a small and medium business, without the complexity or cost involved. The built-in web interface and PC based SmartConsole Utility make these switches easy to deploy, configure and troubleshoot. Its complete set of features allows for seamless integration in every environment. The PoE versions in this series are the 8 & 24 port which integrate power-saving technologies such as time-based PoE which allows the power to be shut off at a predetermined time, saving power on VoIP phones, Wireless Access Points or any other PoE equipment. The DES-1210-28P integrates the Smart Fan feature which automatically turns on the built in fans only when a certain temperature is reached, providing continuous operation, increasing the switch's lifespan. The DES-1210-28P is also compliant with the new PoE+ standard, enabling it to feed up to 30 Watts to connected devices.

Data Sheet
Features Green Technology
• Time-based PoE

Security Features
• Access Control List
• D-Link Safeguard Engine –protects CPU from malicious traffic
• Port Security
• ARP spoofing*
• DHCP server screening*

Intuitive Management
• PC-based SmartConsole
• Web-based GUI
• SNMP compatible
• Compact CLI through Telnet
• Firmware-upgradeable

VoIP & IP Surveillance
• Highest priority for VoIP services
• Auto Voice VLAN

QoS
• Ensures efficient delivery of mission critical data
• Layer 2 QoS (4 queues)
• Layer 3 CoS (DSCP)

Advanced Features
• Loopback Detection automatically disables a port when a loop is detected
• Cable Diagnostics allows administrators to determine the cable status
• Rapid Spanning Tree – prevents loops and ensures availability
• IGMP snooping - save bandwidth on multicast traffic

Online Help via Web-based Management
• Link to local support website
• Online User Guide

* Available in next firmware upgrade
Specifications
Specifications
Edition Smart
Network Ports
  • 2 x Dual-ports (RJ-45/SFP)
  • 24 x Fast Ethernet 10/100
  • 2 x Gigabit 10/100/1000
PoE Ports 24 x Fast Ethernet 10/100
Other Ports
Built-in Memory 16MB
Bandwidth 12.8 Gbps
Network Protocols
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IPv4
Mean Time Between Failures (MTBF) 197,343 hours
Acoustic Noise 53.9 dB
Max. Power Consumption 254 W
Dimensions (WxHxD) 440 x 44 x 250 mm
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
