End Of Life
Scan code: LN5711 Manufacturer code: DES-1024D/B

Dlink DES-1024D 10/100 Ethernet Desktop Switch 24 Port

24 Port Dlink DES-1024D 10/100 Ethernet Desktop Switch

Thumbnail 1 : Dlink DES-1024D 10/100 Ethernet Desktop Switch 24 Port

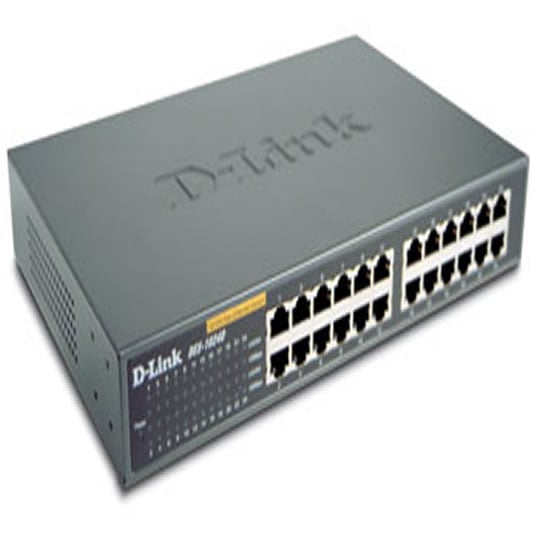

Dlink DES-1024D 10/100 Ethernet Desktop Switch 24 Port : image 1
Scan code: LN5711 Manufacturer code: DES-1024D/B
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview This desktop switch is designed for small offices and larger workgroups.

All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.

IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer Features 24 10/100Mbps ports
Full/half duplex support for each port
MDI uplink port for easy expansion
Auto-learning of network configuration
Flow control in full duplex mode for protection against data loss
Back pressure in half duplex mode
RAM buffer dynamically allocated for each port

Dimensions (W x H x D):11.02 x 7.09 x 1.73 in.(280 x 180 x 44 mm)
Weight: 4.19 lbs. (1.9 kg.)
Metal Housing Casing - Side Air Vents with Fanless Air-Cooling Design

Standards Support
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p QoS Support (2 Queues)
