Scan code: LN39167 Manufacturer code: DGS-1100-24

D-Link DGS-1100 Smart Managed 24-Port Gigabit Switch

24 Port D-Link DGS-1100 Gigabit EasySmart Manages Network Switch

Free ScanFX 3 in 1 Network Cabling Kit worth £9.99

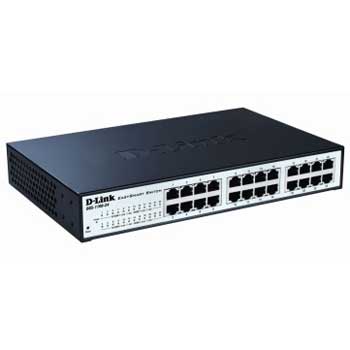

Thumbnail 1 : D-Link DGS-1100 Smart Managed 24-Port Gigabit Switch
D-Link DGS-1100 Smart Managed 24-Port Gigabit Switch : image 1
Scan code: LN39167 Manufacturer code: DGS-1100-24
£93.98Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview D-Link’s DGS-1100 Series is the newest addition to EasySmart Switches featuring D-Link Green Technology. Compliant with IEEE802.3az Energy Efficient Ethernet, this switch consumes less power during idle periods. The DGS-1100 Series consists of 24 Gigabit port model and comes in a compact 11” desktop/rackmount enclosure. These switches also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports features such as port VLANs, Quality of Service (QoS), and IGMP snooping to optimise performance for multicast applications. Its fanless design allows for quieter operation and provides a longer product life. Features • Basic managed functions for small networks.
• 11-inch metal case.
• VLAN support for traffic segmentation.
• AutoSurveillance VLAN for easy integration with IP-based surveillance systems.
• Loopback detection and broadcast storm control to avoid network downtime.
• QoS (Quality of Service) and bandwidth control to ensure smooth operation.
• Cable diagnostics function to help to troubleshoot wiring problems.
• Configurable through a web interface or SmartConsole utility.
• 802.3az Energy Efficient Ethernet (EEE) compliant.
• Improved resiliency, longer MTBF (Mean Time Between Failures).
• Fanless, silent operation to fit in any environment.
Edition EasySmart
Form Factor
Total Network Ports 24 x Gigabit 10/100/1000
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate 48
MAC Address Table Size
Network Capacity
Built-in Flash Memory 2MB
RAM Memory
Network Protocols
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise 0 dB
Max. Power Consumption 7.68 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 774990 hours
Power Supply
Dimensions (WxHxD) 280 x 44 x 180 mm
Weight 1.6 kg
Additional Information
Scan Code LN39167
Model Number DGS-1100-24
GTIN 790069345180
