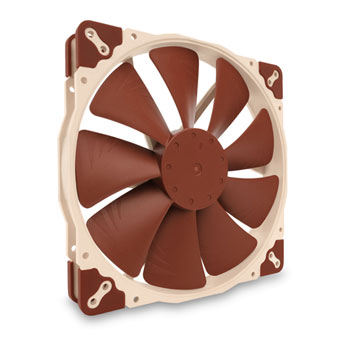

200mm Noctua NF-A20 FLX Fan

200mm Noctua, 800rpm, 86.4CFM, 18.1dB, Beige/Brown Case Fan

Noctua
Scan code: LN82069 Manufacturer code: NF-A20 FLX Request call
£25.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 15th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Noctua have crammed all of their expertise in to this exceptionally quiet new 200mm 3-pin fan.

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctua's award-winning A-series to the increasingly popular 200mm form factor. The FLX version provides 800/550rpm speed settings via the supplied Low-Noise Adaptor in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua's trusted premium quality make the NF-A20 an elite choice for the highest demands.

Award-winning Noctua quality in 200mm size
While more and more PC cases support 200mm intake, side-panel or exhaust fans, many of the bundled stock units and available aftermarket options are of questionable quality. By contrast, the NF-A20 is a true premium grade solution worthy of Noctua's award-winning A-series.

154mm, 110x180mm and 170mm hole spacing
In order to ensure broad compatibility with today's PC cases, the NF-A20 features three sets of mounting holes: While the 154x154mm and 110x180mm spacing allow it to replace most 200mm fans, the 170x170mm spacing is used by many 230 and 250mm fans, which can thus also be replaced by the NF-A20.*

Flow Acceleration Channels
The NF-A20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO Frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Smooth Commutation Drive 2
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.

Low-Noise Adaptor for full flexibility
The NF-A420 FLX (Flexibility) is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 800 to 550rpm so that it can be fine-tuned for superior airflow or maximum quietness.

Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply.

SSO2 bearing
The NF-A20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. Features • Award-winning Noctua quality in a 200mm fan
• Noctua's AAO (Advanced Acoustic Optimisation)
• 154mm, 110x180mm and 170mm hole spacing
• Integrated Anti-Vibration Pads
• From 59.3 CFM, 10.7 dBA at 550 RPM
Specifications
Pack Information
Edition
Pack Type
Includes
Individual Fan Specifications
Fan Diameter 200mm
Fan Depth 30 mm
Fan Speed 800 rpm
Fan Blades
PWM No
Fan Specialization
Airflow 86.4 CFM
Air Pressure
Sound Level (dB) 18.1 dB
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic
Fan Colour Beige/Brown
LED No
LED Colour
MTBF
Fan Fixing
Cable length
Connectors 1 x 3-pin
