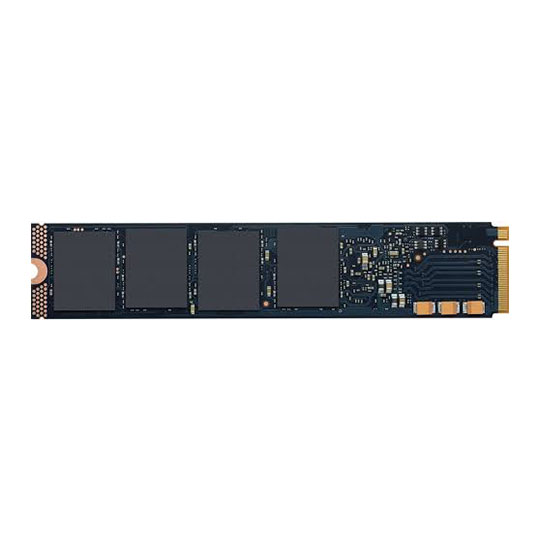

Intel Optane DC 200GB M.2 PCIe SSD/Solid State Drive

200GB Intel Optane DC P4801X, M.2 (22110), PCIe 3.0 (x4), NVMe, 2200MB/s Read, 2000MB/s Write, 550k/400k IOPS

Thumbnail 1 : Intel Optane DC 200GB M.2 PCIe SSD/Solid State Drive Thumbnail 2 : Intel Optane DC 200GB M.2 PCIe SSD/Solid State Drive
Scan code: LN98203 Manufacturer code: SSDPEL1K200GA01
£539.99Item currently awaiting an ETA
Pre order
From £25.92 / month (APR 14.9%)
Monthly Payment: £93.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £562.21
Monthly Payment: £48.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £581.73
Monthly Payment: £33.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £601.66
Monthly Payment: £25.92
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £622.05
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.49 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Solve the most demanding storage and memory challenges with the Intel® Optane™ SSD DC P4800X/P4801X series.

Every day, the amount of data created across the world is exploding to new levels. Enterprises and cloud service providers thrive on this data to make critical decisions, gain new insights from the data, and differentiate services. But, today’s current storage technologies leave a gap in data storage tiers. DRAM is far too expensive to scale and while NAND has the capacity and cost structure to scale, it lacks sufficient performance to function in the memory space. To address the gap, a storage solution that behaves like system memory is needed.

Combines Attributes of Memory and Storage
The Intel® Optane™ SSD DC P4800X series is the first product to combine the attributes of memory and storage. With an industry-leading combination of high throughput, low latency, high QoS, and high endurance, this innovative solution is optimized to break through data access bottlenecks by providing a new data storage tier. The DC P4800X/ P4801X accelerate applications with fast caching and fast storage to increase scale per server and reduce transaction costs for latency sensitive workloads. In addition, the Intel® Optane™ DC P4800X enables data centres to deploy bigger and more affordable datasets to gain new insights from large memory pools.

High Throughput for Breakthrough Performance
Realize breakthrough application performance with the Intel® Optane™ DC P4800X/P4801X. It is designed to deliver up to 6x faster performance at low queue depth workloads, exhibiting extremely high throughput for single accesses and super low latency. Where NAND-based SSDs are often measured at a queue depth of 32 (SATA) or 128 (NVMe*) in order to showcase maximum throughput, the Intel® Optane™ DC P4800X/P4801X can reach as many as 550,000 IOPS at a queue depth of 16.2 This new technology is perfectly suited to accelerate enterprise applications to new, breakthrough levels of performance.

Low Latency: Responsive Under Load
With a new data storage tier created by Intel® Optane™ technology, data centres can consistently realize amazing response times under any workload. With NAND-based SSDs, random write operations require an immense amount of background media management. These tasks can add significant delay to the read operations. The Intel® Optane™ SSD DC P4800X/P4801X maintains consistent read response times regardless of the write throughput applied to the drive. Average read response times remain below <30μs while maintaining a 70/30 mixed read/write bandwidth of 2GB/s.2

Predictably Fast Service: QoS
In an environment of fast growing data and ever demanding needs, data centres must deploy solutions that enable predictably fast service. The Intel® Optane™ DC P4800X/ P4801X are ideal for critical applications with demanding latency requirements. Its 99% read response time is up to 63x better than that of a high-endurance NAND SSD under random write workload.3 Optimized to minimize delays in data access times, the Intel® Optane™ DC P4800X /P4801X results in faster time to insight for decision making.

High Endurance
Endurance affects the life expectancy and costs of enterprise SSDs. The DC P4800X/P4801X is designed for high write environments, and can withstand intense write traffic that is typically demanded of memory. With its extremely high endurance, the life of the DC P4800X/P4801X is extended, making it suitable for write-intensive applications such as online transaction processing, high performance computing, write caching, boot, and logging.

Use Cases for Today’s Data Centre
The Intel® Optane™ DC P4800X provides a new storage tier that breaks through the bottlenecks of traditional NAND storage to accelerate applications and enable more work to get done per server. This unique capability means data centres can explore three key use cases, including caching, fast storage, and extended memory. The DC P4801X can also provide fast logging, caching, boot, or extended memory. Caching and fast storage refer to the tiering and layering that support a better memory-to-storage hierarchy. The Intel® Optane™ SSD facilitates dynamic placement of data that enables fast access to both read and/or write data. In addition, this high performing SSD meets the requirement of an application to accelerate storage access.

An Intel® Optane™ SSD can also extend memory, offering bigger or more affordable memory by participating in a shared memory pool with DRAM at either the OS or application level. Bigger memory dramatically increases the size of ‘working sets’ to enable new insights from data in growing segments such as scientific computing, healthcare, and autonomous driving. More affordable memory means data centres can use Intel® Optane™ SSDs to displace some DRAM. Features • High throughput for breakthrough performance.
• Low latency for responsiveness under load.
• Predictably fast service for Quality of Service (QoS).
• Ultra high endurance for today’s data centre.
Specifications
Capacity 200GB
Edition OPTANE%99 SSD DC P4801X 200 GB
Form Factor M.2
Height 22 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller
Flash Memory Type None
Max. Read 2200 MB/s
Max. Write 2000 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 550000 IOPS
Max. Random Write 4K 400000 IOPS
Latency 12 %B5s
Special Features
  • AES 256-bit Hardware Encryption
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • High Endurance Technology (HET)
  • Temperature Monitoring and Logging
Power Consumption (active) 9 W
Max. Endurance Rating 21.9 PBW
MTBF 2 million Hours
Max. Operating Vibration 2.17 GRMS
Max. Non-operating Vibration 3.13 GRMS
Max. Operating Shock 1000 G
Max. Non-operating Shock 0.5 msec
Connectivity 1 x M.2
OS Support
Bracket N/A
Dimensions 22 x 110 mm (WxHxD)
Weight
Package Type Retail
Additional Information
Scan Code LN98203
Model Number SSDPEL1K200GA01
