Highpoint RocketRAID 620 (RR620) 2 channel Internal PCI-e v2 x1 to SATA 6Gb/s RAID controller(card)

2 Port Highpoint RocketRAID 620 Internal PCI-e v2 x1 to SATA 6Gb/s RAID controller card

MORE INFO
MORE INFO

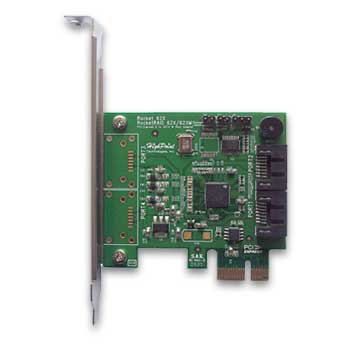

Thumbnail 1 : Highpoint RocketRAID 620 (RR620) 2 channel Internal PCI-e v2 x1 to SATA 6Gb/s RAID controller(card)
Highpoint RocketRAID 620 (RR620) 2 channel Internal PCI-e v2 x1 to SATA 6Gb/s RAID controller(card) : image 1
Scan code: LN31878 Manufacturer code: RR620
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The RocketRAID 600 series are designed to optimize storage performance and redundancy with RAID levels 0, 1, 5 and 10 with port multiplier enclosure, and JBOD.

Storage connected directly to the RocketRAID 600 series data ports deliver the highest performance while external disk enclosures with port multiplier device will enable higher storage capacities

The RocketRAID 622enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy 1.5 or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration.

The RocketRAID 600 Series offers the next generation of SATA 6Gb/s connectivity support to port multiplier enclosures for a maximum of 10 SATA devices.

Using PCI-Express 2.0 doubles the bandwidth of existing PCI-Express bus for faster data throughput. Each PCI-Express lane provides up 500MB/s of throughput. It is also backward compatible with previous generation.
Features Controller Specification

PCI-Express 2.0 x1 (Compatible with PCI-Express 1.0)
Up to 2 SATA devices with point-to-point connectivity
Port Multiplier support up to 10 Drives
RAID level 0, 1, 5, 10 and JBOD
Multiple RAID Support
BIOS Boot to RAID with point-to-point connectivity or through port multiplier
Quick, Background or Foreground Initialization
Multiple logical drive support
OCE/ORLM (Online Capacity Expansion / Online RAID Level Migration)
Hot plug and Hot Swap
Hard drive activity and failed LED
HighPoint RAID Management Suite (Browser based, CLI and BIOS management through hotkey (ctrl-h)
Monitoring (SHI Storage Health Inspector), Event log, SMTP and Alarm

Operating System Support

Windows 7
Windows Vista, 2008, 2003, XP, 2000 x64bit Edition
RHEL/CentOS, SLES, OpenSuSE, Fedora Core, Debian, Ubuntu
Mac OS X 10.4.x and above
FreeBSD up to 7.2

Package Contents

RocketRAID 620 controller
Quick Installation Guide
Software CD
2 SATA Cables
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
2 Port Highpoint RocketRAID 620 Internal PCI-e v2 x1 to SATA 6Gb/s RAID controller card is rated 2.5 out of 5 by 2.
Rated 1 out of 5 by from Cheap but unworkable Highpoint support is terrible, they posted wrong bios and also failed to properly assist my tickets. This card does not work with modern UEFI motherboards (i tried with a AsusH110M-Plus and it and its subsequent replacement it failed to be bootable with) Do yourself a favour and just buy a motherboard with onboard raid. It will NOT give you the bootmenu to enable you to setup a raid and thus cannot be installed onto.
Date published: 2016-12-27
Rated 4 out of 5 by from A simple and effective RAID controller As the title says, this card is simple and effective. It installed easily into an existing build. I chose to pre-install the Windows 10 driver before installing the card. A slight scare on first boot as the BIOS boot order had been changed but that was an easy fix. The first Windows 10 boot with the card installed produced a "Driver loaded but hardware not found" message in Device Manager - at this point I had no drives connected to the card. Shut down, connect a drive and re-start and card/driver was happy. Shut down machine, unplug drive and boot up again and this time I was met with a shrill "whistle" alerting me to a drive failure - it certainly gets your attention! I didn't see anyway to turn this off in the card's BIOS which means you have to install the card's management software which is simple to do. Once installed, the "whistle" can be acknowledged and if desired, turned off completely. The software also allows email alerts to be configured which will be useful. I eventually installed two 3TB drives in a mirrored configuration and this works very well.
Date published: 2015-09-08
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_31878, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

does this work with 5tb drives?

My Asus p8p67 doesn't even recognise 5tb at BIOS level so wanted to know if this will be compatible...
Asked by: Danny970
I can't say for 5tb drives, I've got two WD Red 3tb drives connected and detected fine - my motherboard's on-board RAID controller only saw them as 2GB each.
Answered by: FlippyFF
Date published: 2015-11-08
