Scan code: LN39060 Manufacturer code: PSD-203

2 port PoE Extender IEEE 802.3af/3/3u Cat.5 (1x In, 1x out) Extends the range of PoE by 100 meters

2 port eten 802.3af 10/100 Metal PoE Extender 1-port PoE Splitter (PD) 1-port PoE Injector (PSE)

MORE INFO

Thumbnail 1 : 2 port PoE Extender IEEE 802.3af/3/3u Cat.5 (1x In, 1x out) Extends the range of PoE by 100 meters

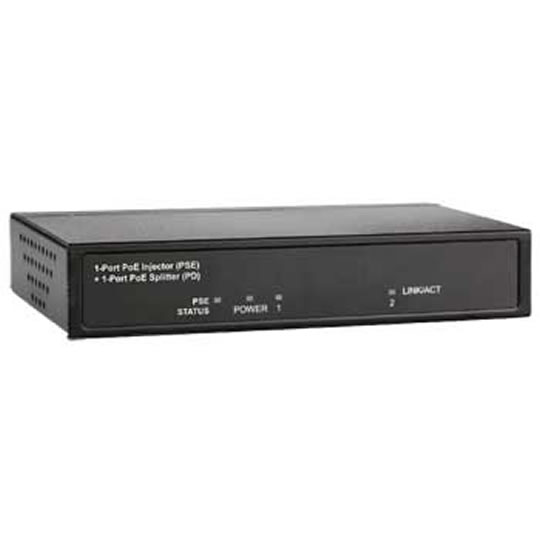

2 port PoE Extender IEEE 802.3af/3/3u Cat.5 (1x In, 1x out) Extends the range of PoE by 100 meters : image 1

Scan code: LN39060 Manufacturer code: PSD-203

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£46.99

Add To Basket

In stock

Order now and receive it by Wednesday, 27th January

Delivery Options

By DPD On 27th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview PSD-203 is 2-port PoE externder (1-port PoE Splitter (PD) and 1-port PoE Injector (PSE)) that is designed for extending distance for another 100M per extender and cascading for longer distances via Cat.5 cable. It is powered by PoE switch or PoE injector without extra power required. Plug and play - It's easy to install into the network environment.
It's a great accessory for you to extend PoE network.

IEEE 802.3af Power over Ethernet (PoE) ports
PSD-203 features IEEE 802.3af Power over Ethernet (PoE). This product runs over existing LAN cable to power IEEE 802.3af compliant network accessories. It also features PoE awareness to verify whether the network device receive power is IEEE 802.3af compliant, or only the data will be sent through LAN cable. By adding PSD-203 to the existing networking, the installed networking products, such as: Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located or the networking can be extending distance for another 100M per extender and cascading for longer distances.

No Special Networking Cable Required
By adding PoE devices, you can use an existing standard Cat-5 Ethernet cable without a new electrical outlet for both power and data. It helps you reduce installation time and cost.

Features Standards
• IEEE-802.3af
• IEEE 802.3 10BaseT
• IEEE 802.3u 100BaseTX

Features
• Number of Ports: 1 x PoE Splitter and 1x PoE Injector

Filtering/Forwarding Rates
• 100Mbps port - 148,800pps
• 10Mbps port - 14,880pps

Transmission Media
• 100BaseTX Cat. 5 UTP/STP

Led Indicators
• PD: Power (Link)
• PD: Data/Act
• PSE: Link (provide power)
• PSE: Data/Act

Power Output
• 1 port 48V/DC Output

Dimensions
• 130 × 77 × 24 mm (L x W x H)

Operating Temperature
• 0 to 40c

Storage Temperature
• -20 to 90c

Humidity
• 10 to 90% RH (non-condensing)

Certifications
• FCC Class A, CE

Specifications
Edition
Form Factor
Total Network Ports
PoE Support Type
No. of Ports Providing PoE	2 x Fast Ethernet 10/100
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols	IEEE 802.3 IEEE 802.3af IEEE 802.3u
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD)	75 x 24 x 130 mm
Weight	0.2 kg

Additional Information
Scan Code	LN39060
Model Number	PSD-203
GTIN	39060
