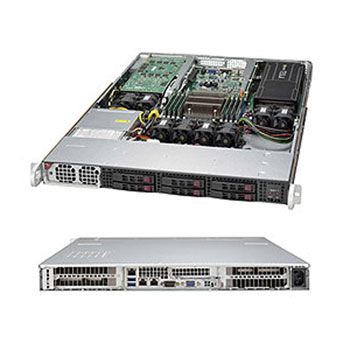

Supermicro 1U Rackmount SuperServer 1018GR-T

1U Supermicro SuperServer 1018GR-T, Rackmount, 6x 2.5" Drive Bays, 2x PCIe 3.0 x16, 1400w 80 Plus Platinum PSU, Dual GbE

Supermicro
Scan code: LN76448 Manufacturer code: SYS-1018GR-T Request call
£1,579.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £39.45 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview SuperMicro 1U SuperServer 1018GR-T Features • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/ v3 and E5-1600 v4/ v3 family.
• Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 8x DIMM slots.
• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot.
• Integrated IPMI 2.0 with KVM and Dedicated LAN.
• Intel® i350 Dual-Port GbE Controller.
• 6x 2.5" Hot-swap drive bays.
• 1400W High-efficiency Power Supply Platinum Level (94%+) Digital Switching Control & PMBus 1.2.
• 8x Counter rotating fans w/ optimal fan speed control.
Specifications
Specifications
Edition
Form Factor 1U Rackmount
CPU Included No
CPU Type Intel Xeon
Core
No. of Threads N/A
CPU Model
Clock Speed N/A
Burst Frequency N/A
CPU Cooler
CPU Socket 2011
Chipset Intel C612
Motherboard Form Factor
Memory Type DDR4
Memory Included No
Memory Capacity Included N/A
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 512GB (8x64GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip Aspeed AST2400 Integrated
Discrete GPU No
GPU Chipset
GPU Cores
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)
Expansion Slots
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x8
SATA SATA3
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 6 x 2.5" SATA Hot-swap
RAID Support SATA
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x Management LAN
  • 2 x USB 3.0
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable
PSU Wattage 1400 W
Operating System Included No
Operating System N/A
Colour Silver/ Black
Dimensions 724 x 43 x 437 (mm WxHxD)
