Scan code: LN9425 Manufacturer code: SM-6014P-8R-B

Supermicro 6014P-8R 1U Superserver Black

1U Supermicro 6014P-8R Superserver, Black

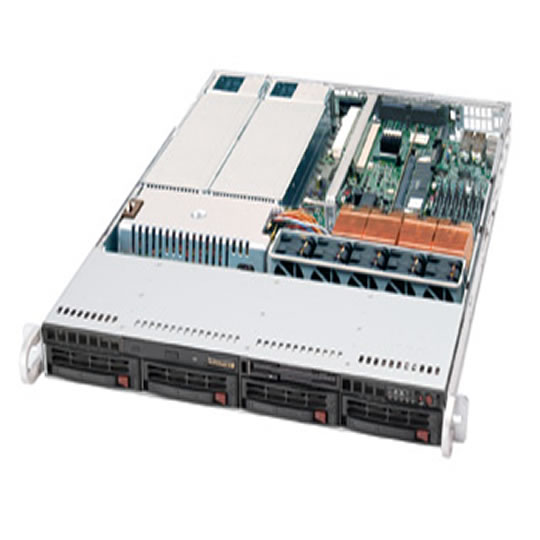

Thumbnail 1 : Supermicro 6014P-8R 1U Superserver Black
Supermicro 6014P-8R 1U Superserver Black : image 1
Scan code: LN9425 Manufacturer code: SM-6014P-8R-B
£120.49
From £10.82 / month (APR 14.9%)
Monthly Payment: £20.91
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £120.49
Total inc. interest: £125.45
Monthly Payment: £10.82
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £120.49
Total inc. interest: £129.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Designed for high-performance servers clustering and business critical applications, these Supermicro 1U rack servers support the latest 800MHz FSB Xeon™ with EM64T. It features a pair of universal expansion slots that can be utilized for either PCI-X-133/100 or the latest PCI-Express cards to provide outstanding I/O flexibility.
Features • Dual Intel® 64-bit Xeon® Support up to 3.60 GHz.
• Up to 12GB DDR 333 SDRAM (or) Up to 24GB DDR 266 SDRAM.
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz Full-height / length PCI-X Slot.
• 2 x Intel® 82546GB Gigabit Ethernet Ports.
• Zero Channel RAID Support.
• 4 x 3.5"" Ultra320 SCSI Hot-swap Drive Bays.
• 560W Hot-swap Redundant Power.
Specifications
Edition
Form Factor 1U Rackmount
CPU Included No
CPU Type 800MHz
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 604 x 2
Chipset Intel E7520
Motherboard Form Factor
Motherboard Model
Memory Type DDR
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / FB-DIMM
Memory Speed (Mhz)
  • DDR - 266
  • DDR - 333
Max. Memory Capacity 24GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCI
Expansion Slots 1 x Universal Slot
SATA N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 4 x 3.5" Internal
Backplane I/O
RAID Support SCSI
Internal I/O
  • 1 x 20-pin (Power)
  • 1 x Chassis Intrusion connector
  • 5 x Fan Header (V)
  • 1 x Floppy
  • 2 x IDE
  • 2 x SCSI
  • 1 x Serial (COM) Header
  • 2 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
  • 2 x 10/100 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial (COM)
  • 2 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 560 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 438 x 43 x 681 mm (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
