Scan code: LN98205 Manufacturer code: SSDPELKX010T801

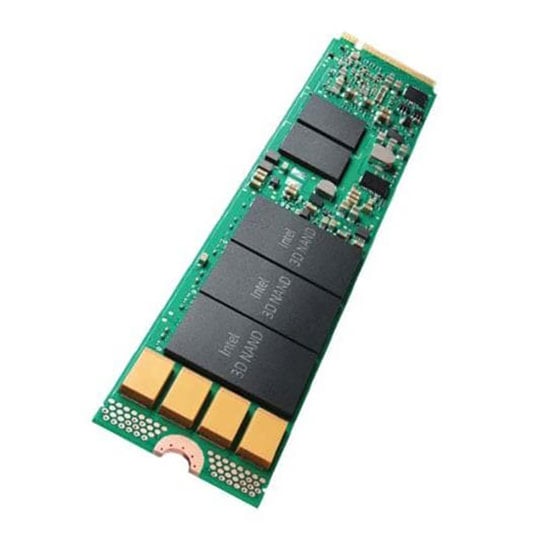

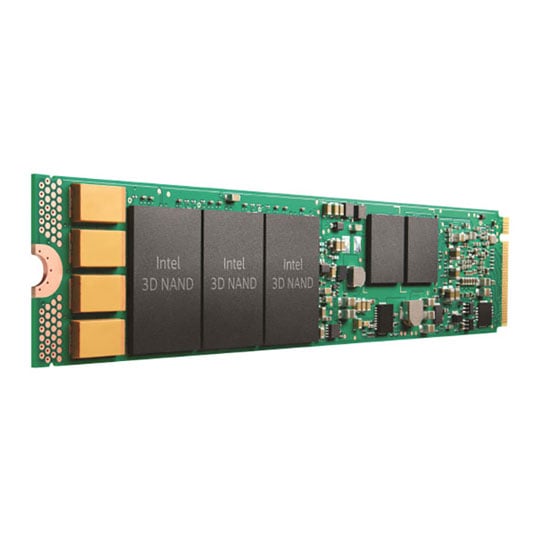

Intel 1TB DC P4511 M.2 PCIe SSD/Solid State Drive

1TB Intel DC P4511, M.2(22110), PCIe 3.1 (x4), NVMe, 1950MB/s Read, 1000MB/s Write, 295k/310k IOPS

Thumbnail 1 : Intel 1TB DC P4511  M.2 PCIe SSD/Solid State Drive Thumbnail 2 : Intel 1TB DC P4511  M.2 PCIe SSD/Solid State Drive
Scan code: LN98205 Manufacturer code: SSDPELKX010T801
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Performance, Capacity & Quality

Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing costs for power conscious and space constrained storage solutions.

Built from the success of its cloud-inspired predecessor and architected with 64-layer TLC Intel® 3D NAND technology, the Intel® SSD DC P4511 Series delivers performance, quality of service (QoS), and capacity improvements to further optimise storage efficiency, enabling data centres to do more per server, minimise service disruptions, and efficiently manage at scale. Built on NVMe specification 1.2, these PCIe SSDs are available in 1TB, and 2TB in the M.2 (110mm) form factor.

Power-Efficient SSD Built for Cloud Storage Architectures

Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe*/NVMe*-based SSDs with scalable performance, low latency, and continued innovation. As software-defined and converged infrastructures are swiftly adopted, the need increases to maximise efficiency, revitalise existing hardware, deploy new workloads, and yet reduce operational expenditures. The Intel® SSD DC P4511 Series meets these requirements. It significantly increases server agility and utilisation, and accelerates applications across a wide range of cloud workloads.

Do More per Server

Built on 64-layer TLC 3D NAND technology, the SSD DC P4511 enables data centres to optimize for space and power-efficient capacities in a M.2 (110mm) form factor. The DC P4511 delivers up to 5x faster read bandwidth, up to 1.5x performance/watt, and up to 3.4x reduction of service time at QoS metric of 99.99% availability for random access workload.1 2 3 Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data reads and writes at an optimum balance. With this level of workload ability and agility, data centres can refresh existing hardware and reduce operational expenditures.

Minimise Service Disruptions

To ensure telemetry information without disrupting ongoing I/Os, the DC P4511 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme – with a built-in self-test – guards against data loss if system power is suddenly cut. Coupled with our industry-leading end-to-end data path protection scheme, PLI features enables ease of deployment into resilient data centres where data corruption from system-level glitches is not tolerated.6 The DC P4511 combines firmware enhancements with new 3D NAND features to prioritise host workload and ensure better service levels.

Efficiently Manage at Scale

To help data centres make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to permit more users and scale deployment.With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4511 improves integration and increases the ease and efficiency of deploying at scale.

Choose the DC P4511 for Data Centre Storage

With the increased density of Intel 64-layer 3D NAND and enhanced firmware features, the DC P4511 is built to handle read-intensive workloads and beyond. The DC P4511 provides energy and space efficient storage solutions for greater quality of service, bandwidth, and performance, leading data centres through their evolving transformation.

• Power-Efficient SSD Built for Cloud Storage Architectures.
• Do More per Server.
• Minimize Service Disruptions.
• Efficiently Manage at Scale.
• Choose the DC P4511 for Data Centre Storage.
Capacity 1TB
Edition SSD DC P4511 1 TB
Form Factor M.2
Height 22 mm
Interface PCIe 3.1 (x4)
Host Controller Interface NVMe
Flash Memory Type Intel 64-Layer TLC 3D NAND
Max. Read 1950 MB/s
Max. Write 1000 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 295000 IOPS
Max. Random Write 4K 31000 IOPS
Latency 40 %B5s
Special Features
  • AES 256-bit Hardware Encryption
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • Temperature Monitoring and Logging
Power Consumption (active) 7.6 W
Max. Endurance Rating Up to 0.98 PBW
MTBF 2 million Hours
Max. Operating Vibration 2.17 GRMS (5 - 700 Hz)
Max. Non-operating Vibration 3.13 GRMS (5 - 800 Hz)
Max. Operating Shock 1000G
Max. Non-operating Shock 0.5 ms
Connectivity 1 x M.2
OS Support
Bracket N/A
Dimensions 22 x 110 mm (WxHxD)
Weight 14 g
Package Type Retail
Additional Information
Scan Code LN98205
Model Number SSDPELKX010T801
GTIN 5055948915478

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
