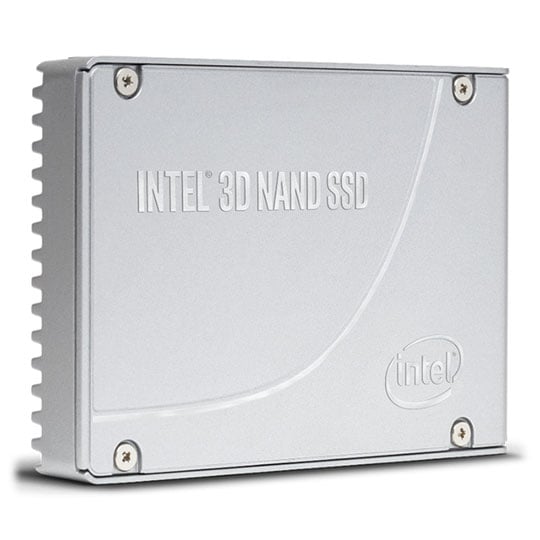

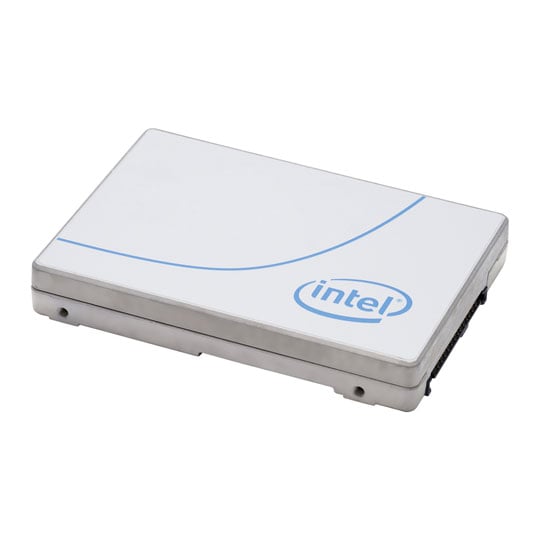

Intel 1TB DC P4510 2.5" U.2 PCIe 3D NAND Enterprise Datacenter SSD
1TB Intel DC P4510 2.5" U.2 SSD, PCIe 3.1 (x4), NVMe 1.2, 3D TLC NAND, 2850MB/s Read, 1100MB/s Write, 465k/70k IOPS
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing storage costs.
Packed with a deep feature set, this cloud-inspired Intel® 3D NAND SSD is optimized for cloud infrastructures, offering outstanding quality, reliability, advanced manageability and serviceability to minimize service disruptions.
Built from the success of its cloud-inspired predecessor – the Intel® SSD DC P4500 Series – and architected with 64-layer, TLC, Intel® 3D NAND Technology, the Intel® SSD DC P4510 Series delivers performance, Quality of Service (QoS), and capacity improvements to further optimize storage efficiency, enabling data centers to do more per server, minimize service disruptions, and efficiently manage at scale.
Built on NVMe specification 1.2, these PCIe* SSDs are available in 1TB, 2TB, 4TB, and 8TB in the U.2 2.5” (15mm) form factor.
An SSD Built for Cloud Storage Architectures
Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe/NVMe-based SSDs with scalable performance, low latency, and continued innovation.
As software-defined and converged infrastructures are swiftly adopted, the need increases to maximize efficiency, revitalize existing hardware, deploy new workloads, and yet reduce operational expenditures.
The Intel® SSD DC P4510 Series meets these requirements. It significantly increases server agility and utilization, and accelerates applications across a wide range of cloud workloads.
Do More Per Server
Intel’s 64-layer, TLC, 3D NAND technology enables the DC P4510 to double the capacity available compared to its immediate predecessor, the Intel® SSD DC P4500 Series. This increased density is the key to supporting broader workloads, allowing cloud service providers to increase users and improve data service levels. Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data read/write at an optimum balance.
With the DC P4510, host applications will not only have access to double the capacity, but will also be serviced at up to 80% faster write rate, up to 2x better random write IOPS/TB, and up to 10x reduction of service time (compared to the DC P4500) at a QoS metric of 99.99% availability for random access workload.
With this level of workload ability and agility, data centers can refresh existing hardware and reduce operational expenditures.
Minimize Service Disruptions
To ensure telemetry information without disrupting ongoing I/Os, the DC P4510 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme with a built-in self-test guards against data loss if system power is suddenly cut.
Coupled with our industry-leading end-to-end data path protection scheme, PLI features enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated. The DC P4510 combines firmware enhancements with new 3D NAND features to prioritize host workload and ensure better service levels. The result: 6x workload support at a given service level response time.
Efficiently Manage at Scale
To help data centers make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to enable more users and scale deployment. The DC P4510 also provides security features like TCG Opal* 2.0 and built-in AES-XTS 256-bit encryption engine, required by some secure platforms.
With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4510 improves integration and increases the ease and efficiency of deploying at scale.
Choose the DC P4510 for Data Center Storage
With the increased density of Intel 64-layer 3D NAND and enhanced firmware features, the DC P4510 is built to handle read-intensive workloads and beyond. The DC P4510 creates greater Quality of Service, bandwidth, and performance to lead data centers through their evolving transformation. Features • Built for Cloud Storage: Significantly increases server agility and utilization across a wide range of workloads.
• Do More per Server: 64-layer, TLC, 3D NAND technology enables greater capacity for increased density.
• Minimize Service Disruptions: Enhanced SMART monitoring and power loss imminent (PLI) protection.
• Efficiently Manage at Scale: Dynamic namespace management, security features and built-in AES-XTS 256-bit encryption.
|Edition||DC P4510 Series|
|Interface||PCIe 3.1 (x4)|
|Host Controller Interface||NVMe 1.2|
|Flash Memory Type||Intel 64-Layer TLC 3D NAND|
|Max. Read||2850 MB/s|
|Max. Write||1100 MB/s|
|DRAM Cache Memory||N/A|
|DRAM Cache Memory Type|
|Max. Random Read 4K||465,000 IOPS|
|Max. Random Write 4K||70,000 IOPS|
|Latency||10 µs Read / 12 µs Write|
|Power Consumption (active)||10W|
|Max. Endurance Rating||1.92 PBW|
|Max. Operating Vibration||2.17GRMS(5-700MHz)|
|Max. Non-operating Vibration||3.13GRMS(5-800MHz)|
|Max. Operating Shock||1000G(0.5ms)|
|Max. Non-operating Shock||1000G(0.5ms)|
|Connectivity||1 x U.2 (SFF-8639)|
