End Of Life Sale

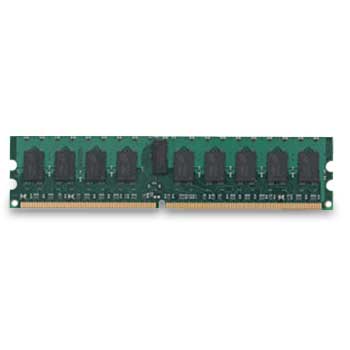

Hynix 1GB DDR3 PC3-8500 (1066) Single Channel Server Memory

1GB Hynix Server Memory, DDR3, PC3-8500 (1066MHz), 240 Pin, Registered, CAS 7-7-7

SK hynix
Scan code: LN27478 Manufacturer code: HMT112R7AFP4C-G7TB Request call
End Of Life
Mid Range
Product Overview DDR3 SDRAM, which upholds the next generation main memory standard, can transfer data twice as fast as the current generation DRAM. Hynix's DDR3 SDRAM boasts high performance and low power consumption. It supports data transfer rate up to 1.6Gb/s and operate at a voltage as low as 1.5V comparable to DDR2 which a previous version of DDR3. Hynix's DDR3 also featuring functions such as 2Q calibrations, fly-by topology, dynamic on-die-termination and write levelization to ensure signal integrity and thus higher performance. Features • VDD=VDDQ=1.5V
• Fully differential clock inputs (CK, /CK) operation
• Differential Data Strobe (DQS, /DQS)
• On chip DLL align DQ, DQS and /DQS transition with CK transition
• DM masks write data-in at the both rising and falling edges of the data strobe
• All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock
• Programmable burst length 4/8 with both nibble sequential and interleave mode
• BL switch on the fly
• 8banks
• 8K refresh cycles /64ms
• DDR3 SDRAM Package : JEDEC standard 82ball FBGA(x4/x8) , 100ball FBGA(x16) with support balls
• Driver strength selected by EMRS
• Dynamic On Die Termination supported
• Asynchronous RESET pin supported
• ZQ calibration supported
• TDQS (Termination Data Strobe) supported (x8 only)
• Write Levelization supported
• Auto Self Refresh supported
• 8 bit pre-fetch

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details

Additional Notes:
Lifetime Manufacturer Warranty Direct
