Scan code: LN93618 Manufacturer code: VCQRTX5000-PB

NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card

16GB PNY NVIDIA Quadro RTX 5000, Turing, 3072 CUDA, 384 Tensor, 48 RT Cores, GDDR6, 11.2 TFLOPS FP32, DP/VirtualLink

Thumbnail 1 : NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 2 : NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 3 : NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 4 : NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 1 NVIDIA Quadro RTX 5000 16GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 2
Scan code: LN93618 Manufacturer code: VCQRTX5000-PB
£2,037.98
From £97.82 / month (APR 14.9%)
Monthly Payment: £353.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,037.98
Total inc. interest: £2,121.82
Monthly Payment: £182.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,037.98
Total inc. interest: £2,195.47
Monthly Payment: £126.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,037.98
Total inc. interest: £2,270.76
Monthly Payment: £97.82
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,037.98
Total inc. interest: £2,347.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £50.90 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th Nov 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview NVIDIA Quadro RTX 5000: Real Time Ray Tracing for Professionals
Shatter the boundaries of what’s possible with the NVIDIA® Quadro RTX™ 5000, powered by NVIDIA Turing GPU to bring real-time ray tracing and accelerated AI to next-generation workflows. Creative and technical professionals can supercharge demanding design and visualization workloads and make more informed decisions faster than ever before. Equipped with 3072 CUDA cores, 384 Tensor cores, 48 RT Cores and 16 GB GDDR6 memory, Quadro RTX 5000 can render complex models and scenes with physically accurate shadows, reflections, and refractions to empower users with instant insight. Support for NVIDIA NVLink enables applications to scale memory and performance with multi-GPU configurations. In addition, with the industry’s first implementation of the new VirtualLink®, Quadro RTX 5000 provides connectivity to the next-generation of high-resolution VR head-mounted displays to let designers view their work in the most compelling virtual environments possible.

Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.

NVIDIA Turing GPU Architecture
Armed with the all-new RTCore for ray tracing, 384 Tensor Cores for AI and 3072 CUDA cores for parallel computing, NVIDIA Turing is simply the world's most advanced GPU.

Next-Gen Memory
Equipped with 16GB of ultra-fast GDDR6 memory to hold large datasets – complex designs for products, architectural walkthroughs, media assets and more.

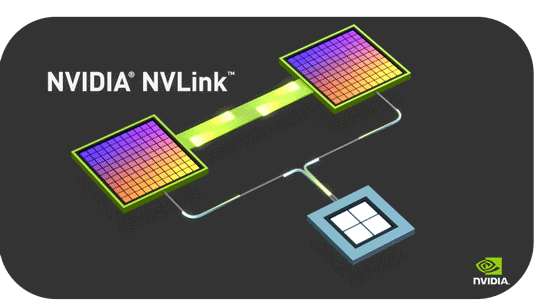

NVIDIA NVLink™
Link two GPUs with a high-speed interconnect to scale memory capacity to 32GB and drive higher performance with up to 50 GB/s of data transfer.

VirtualLink™
Be ready for next-generation of high-resolution VR head-mounted displays and enjoy simplified cabling with support for the industry standard VirtualLink connector. Features • Four DisplayPort 1.4 Connectors.
• DisplayPort with Audio.
• 3D Stereo Support with Stereo Connector.
• NVIDIA GPUDirect™ Support.
• Quadro Sync II Compatibility.
• NVIDIA nView® Desktop Management Software.
• HDCP 2.2 Support.
• NVIDIA Mosaic.
• VirtualLink Connector.

Includes:
• NVIDIA Quadro RTX 5000 Professional Graphics Board.
• Printed Support Guide.
• Printed Quick Start Guide.
• 8-Pin Auxiliary Power Cable.
• One DP to DVI-D SL Adapters.
• One DP to HDMI Adapter.

Warranty and Support:
• 3-Year Warranty.
• Pre- and Post-Sales Technical Support.
• Dedicated Field Application Engineers.
• Direct Tech Support Hot Lines.
Specifications
Key Specifications
Graphics Chipset Quadro RTX 5000
Edition
Manufacturing process 12 nm
Microarchitecture Turing
GPU Name 1x TU104GL
Cores & Clocks
NVIDIA CUDA Cores 3072
Core Clock 1350 MHz
Boost Clock
Video Memory (VRAM)
Memory Size 16 GB
Memory Type GDDR6
Memory Clock 1750 MHz
Memory Bit Rate 256 Bit
Memory Bandwidth 448 GB/s
ECC Technology Yes
Cooling
Cooling Single Fan (1)
I/O & Connectivity
Interface PCIe 3.0 (x16)
Interface Bandwidth
Graphics Output
  • 1 x 3-pin Stereo Audio Connector
  • 4 x DisplayPort 1.4
  • 1 x USB Type-C (VirtualLink)
Visuals
Multi GPU Support 2-Way NVLink
NVLink Support Upto 2x Quadro RTX 5000 GPUs via NVLink
Total NVLink Bandwidth 50 GB/s
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Multi Monitor Support 4 Displays
Concurent Users N/A
H.264 1080p30 Streams N/A
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum VGA Resolution N/A
Supported Graphics APIs
  • DirectX 12.0
  • DirectX 12.0 (12.1)
  • OpenCL 1.2
  • OpenGL 4.5
  • OpenGL 4.6
  • Shader Model 5.1
  • Vulkan 1.0
  • Vulkan 1.1
Compute Performance
Supported Compute APIs
  • CUDA
  • DirectCompute
  • OpenCL
Single Precision (FP32) Processing Yes
Single Precision (FP32) Performance 11.2 teraFLOPS
Double Precision (FP64) Processing Yes
Double Precision (FP64) Performance 0.350 teraFLOPS
Tensor Processing Yes
Deep Learning (Tensor) Performance 89.2 teraFLOPS
NVIDIA Tensor Cores 384
Integer Operations (INT8)
Ray-Tracing
NVIDIA RT Cores 48
RTX-OPS 62T
Rays Cast 8 Giga Rays/Sec
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Board Power 265 W
Minimum Recommended PSU
Maximum GPU Temperature
Physical
Form Factor Dual Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 111.76 x 266.7 mm
Package Type Retail
Additional Information
Scan Code LN93618
Model Number VCQRTX5000-PB
GTIN 3536403367237
