Corsair Dominator Platinum Champion Orange DDR4 3400MHz 4x4GB - 16GB Kit

16GB (4x4GB) Corsair DDR4 Dominator Platinum Orange, PC4-27200 (3400), Non-ECC, CAS 16-18-18-40, DHX, XMP 2.0, 1.2V

Corsair
Scan code: LN64867 Manufacturer code: CMD16GX4M4B3400C16 Request call
£246.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

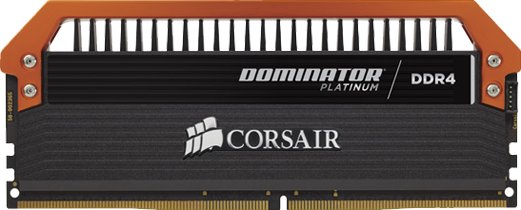

Corsair DDR4 Dominator Platinum 16GB (4x4GB) 3400MHz Memory (Orange)

CORSAIR DDR4 DOMINATOR PLATINUM RAM

With four modules of RAM at 4GBs each, your 16GB memory will have no problem running next-gen games or data processing. By utilizing both DDR4 and Dominator Platinum advantage’s this memory type and density is sure to keep the average desktop PC comfortable with any and every task it is set. At 3400MHz these speeds are capable of smoothly running all regular uses of desktop PCs, plus they are very well future-proofed. Such a high bandwidth can help with playing, but also hosting online games! Will run word processing and most pro applications with ease.

3400MHz
Speed

16-18-18-40
CAS Latency

1.2V
Voltage

16GB (4x4GB)
Capacity

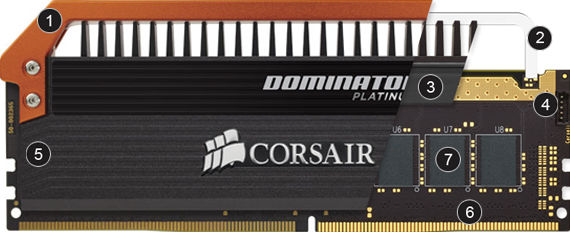

DOMINATOR PLATINUM FEATURES

1

Configurable and upgradable top bar

2

Configurable and upgradable light pipe

3

Patented Dominator DHX Cooling Technology

4

Corsair Link to monitor temperature and voltage

5

Machined aluminum hear sinks for convective heat dissipation

6

Custom PCB optimized for conductive heat transfer out of the memory

7

Hand sorted performance ICs: the foundation for highly overclockable memory

MEMORY PERFORMANCE ADVANCEMENTS

Voltage
(Lower is better)

Density
(Higher is better)

Speed
(Higher is better)

DDR

DDR2

DDR3

DDR4

Experience the True Power of DDR4 RAM

It was 2007 that the DDR3 standard was announced and in the years since then technology has only been pushed further. Eventually the memory standard was pushed to the edge of DDR3 limits, until DDR4 smashed through those limits! Corsair DDR4 doubled the bandwidth and dramatically increase clock speeds, whilst consuming less power than ever before.

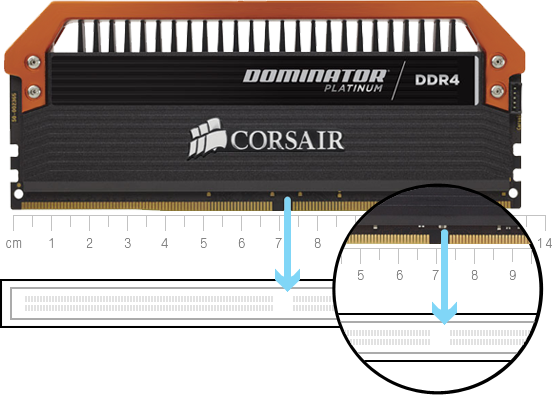

INSTALLING DDR4 MEMORY

Motherboard Socket DDR4 Optimization

Pin Out: 288
Dominator Platinum DDR4 form factor is optimized and compatibility-tested for the latest Intel X99 and 100 series motherboards, forging reliably fast performance. With any standard DDR4 DIMM memory socketed motherboard you shouldn’t have any trouble installing the powerful Dominator Platinum DDR4 series.

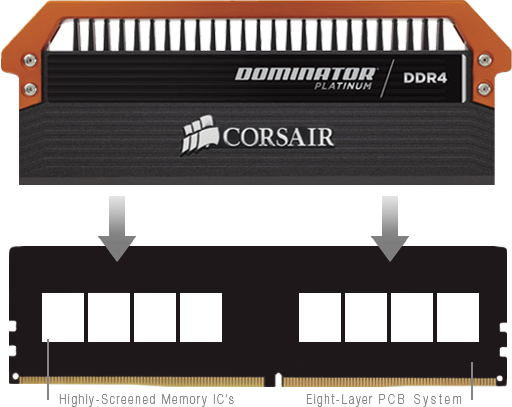

OVERCLOCKING DDR4 RAM

Pushing RAM Performance Even Further

Corsair have heavily designed the Dominator Platinum DDR4 around high-performance overclocking. Each module from the Dominator RAM series is built with highly-screened memory ICs and an eight-layer PCB, with further overclocking improvments through the efficient heat spreader that provides effective cooling.

PCB System

These DDR4 memory sticks boast an eight layer PCB system. If your computer is trying to squeeze too much information into one layer then you are going to experience a significant rise in temperature. That rise in temperature will evetually cause overheating, resistances changes and things will stop working correctly - utlizing eight layers helps eliminate this problem.

Screened IC's

Each computer memory module is equipped with numerous ICs or Integrated Circuits. Each IC in the Corsair DDR4 Dominator Platinum series is rigorously tested to check for defects in the technology. This is done by applying particular ‘patterns’ to them to see if the outcome has any faulty circuit behavior, and if so determine the cause of failure. Using the best of the best IC’s leads to highly overclockable memory.

EASY XMP RAM OVERCLOCKING

Utilize XMP for Overclocking in Seconds

XMP 2.0 is supported by both Dominator Platinum DRAM and Intel’s X99 and 100 series motherboards. Simply select XMP mode in the BIOS and it will automatically adjust to the fastest safe speed for the Corsair DDR4 Platinum kit. You’ll get amazing, reliable performance without lockups or other strange behavior. Enjoy trouble-free, automatic overclocking with the support of XMP 2.0.

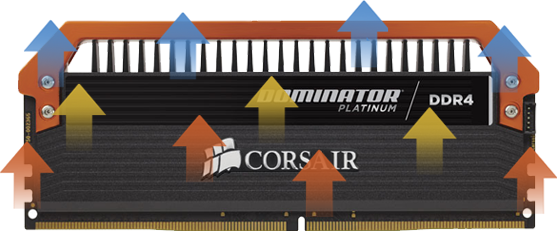

DHX DOMINATOR HEAT SPREADER

Cooler Memory for Better Performance

The heat spreader on Corsair LPX DDR4 memory is made of pure aluminum, creating a faster heat dissipation and a cooler operation. Usually the overclocking overhead is limited by operating temperature, but not for the Vengeance LPX. Due to the unique design of the heat spreader, the temperature is constantly lowered as heat is pulled away from the ICs and into your system’s cooling path. Not only does the heat spreader allow Vengeance LPX to perform better, but the aggressive yet refined form factor looks great in any system.

DOMINATOR DDR4 LIGHTKIT

x2 light Bars | 2x Arctic White Colour Inserts | 2x Cerulean Blue Colour Inserts | z10 Spare Screws and Nuts | Installation Tool | Quick Start Guide

Cooler Memory for Better Performance

With the Dominator Platinum memory you can personalize your modules more than ever before. The Dominator Platinum Light kit contains all you will need to upgrade two memory modules to either Corsair signature Arctic White or Cerulean Blue illumination - or even one of each. Upgrade by simply removing the top bar and install a coloured lens before reattaching the bar. All needed tools are included.

LightKit comes with specific Dominator memory, always make sure to check

Specifications
Specifications
Size 16GB (4x4GB)
Memory Model Dominator Platinum
Memory Channel Quad
Memory Type DDR4
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed PC4-27200 (3400)
Pins 288
CAS Latency 16-18-18-40
Voltage 1.2 V
Cooler Heat Spreader
Features
  • DHX Technology
  • XMP 2.0
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
