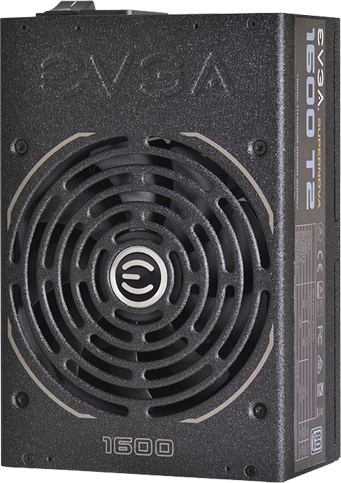

EVGA SuperNOVA 1600W Modular Power Supply

1600W EVGA SuperNOVA T2, Full Modular, 80PLUS Titanium, SLI/CrossFire, Single Rail, 133.3A, 140mm Fan, ATX PSU

Thumbnail 1 : EVGA SuperNOVA 1600W Modular Power Supply Thumbnail 2 : EVGA SuperNOVA 1600W Modular Power Supply Thumbnail 3 : EVGA SuperNOVA 1600W Modular Power Supply Thumbnail 4 : EVGA SuperNOVA 1600W Modular Power Supply EVGA SuperNOVA 1600W Modular Power Supply : video thumbnail 1
Scan code: LN62019 Manufacturer code: 220-T2-1600-X3
FREE EVGA +2 Years Warranty Upgrade
3xs Approved
£419.99
From £20.16 / month (APR 14.9%)
Monthly Payment: £72.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £437.28
Monthly Payment: £37.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £452.44
Monthly Payment: £26.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £467.94
Monthly Payment: £20.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £483.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

EVGA 1600 T2 80PLUS TITANIUM

EVGA 1600 T2

1600T2 - Unrivaled Performance

Introducing the EVGA SuperNOVA 1600 T2 power supply. This power supply raises the bar with 1600W of continuous power delivery and 94% efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1600 T2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.

1600T2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 133.3 amp single + 12V Rail

100 - 240 VAC / 17 - 10A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
24A 24A 133.3A 3A 0.5A
120W 1599.6W 15W 6W
1600W @ +50C

Industrial grade testing all load and regulation testing done at 50C

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Eco Mode
Fan does not switch on until PSU load is above 45°

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

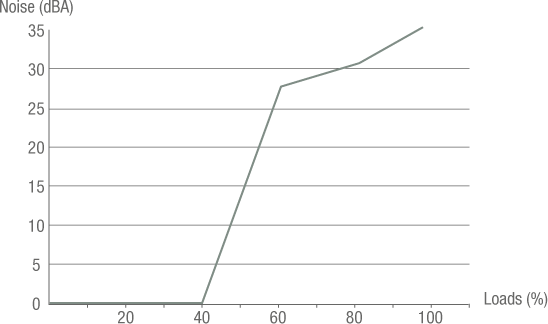

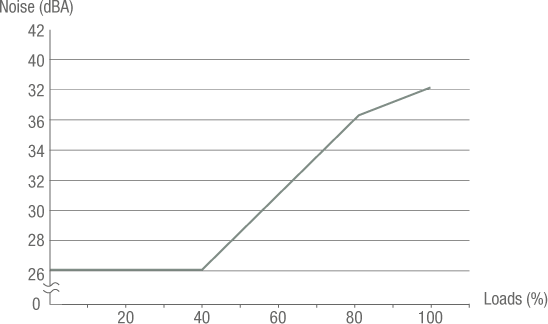

FAN NOISE CHART

SuperNOVA 1600 T2

(Eco ON)

SuperNOVA 1600 T2

(Eco OFF)

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

OCP

(Over Current Protection)

OTP

(Over Temperature Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 1600 T2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1600 T2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

80PLUS TITANIUM Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 94% efficient or higher.

Specifications
Size ATX
Edition SuperNOVA T2
Wattage 1600 W
80 PLUS Certification 80 PLUS Titanium
Max. Efficiency 94 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 133.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 133.3 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 9 x 6+2-pin PCIe
  • 5 x 6-pin PCIe
  • 2 x FDD Power
  • 16 x SATA
Dimensions 150 x 85 x 200 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan/EVGA
Telephone:
01788 247 298

Additional Notes:
Please note that the extended warranty for this item is only available directly through EVGA: In order to make use of the extended 10 year warranty, the end user has to register the PSU with EVGA.

Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
1600W EVGA SuperNOVA T2, Full Modular, 80PLUS Titanium, SLI/CrossFire, Single Rail, 133.3A, 140mm Fan, ATX PSU is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Great PSU The evga supernova T2 1600w PSU is a beast worth the money they should really give you customised power leads for the price of the PSU but other than that it does what it says on the tin.
Date published: 2018-01-08
Rated 5 out of 5 by from Very impressive PSU Yes, it's incredibly expensive which means its not the most amazing value for money. But in every other way it's fantastic. Can power a ridiculous number of graphics cards, I'm currently powering seven Radeon 290x with it, drawing just 1550w from the wall. It's semi-passive mode is very impressive also, I found with my PC drawing as much as 1200w from the wall, the fan didn't even kick in. Even when pulling over 1500w, the air coming out is barely warm. If you need masses of power, super efficient operation and quietness, I can't recommend this PSU enough.
Date published: 2016-12-08
Rated 5 out of 5 by from Excellent performance and build qaulity High end product with a very solid feel, some great extras and gives you peace of mind. Outstanding product!
Date published: 2016-04-27
