EVGA SuperNOVA 1600W Modular Power Supply

1600W EVGA SUPERNOVA 1600 G2, Full Modular, 80 PLUS Gold, 140mm Quiet Fan, ATX, PSU

EVGA
Scan code: LN58519 Manufacturer code: 120-G2-1600-X3 Request call
£269.99
In stock
Pay on Scan Finance with a 10% deposit from just £6.74 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 24th Jan 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

EVGA 1600 G2 80PLUS GOLD

EVGA 1600 G2

1600G2 - Unrivaled Performance

Introducing the EVGA SuperNOVA 1600 power supplies. These power supplies raise the bar with 1600W of continuous power delivery and up to 100% efficiency. A fully modular design reducing case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclock-ability and unparalleled control. The EVGA SuperNOVA 1600 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.

1600G2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 103.3 amp single + 12V Rail

100 - 240 VAC / 17 - 10A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
24A 24A 133.3A 3A 0.5A
120W 1599.6W 15W 6W
1600W @ +50C

Industrial grade testing all load and regulation testing done at 50C

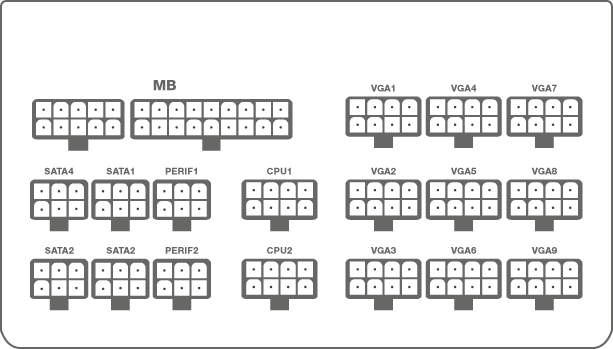

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

OCP

(Over Current Protection)

OTP

(Over Temperature Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 1600 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1600 G2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

80PLUS GOLD Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90% efficient or higher.

Specifications
Specifications
Size ATX
Edition SUPERNOVA G2
Wattage 1600 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 94 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 133.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24 Pin
Connectors
  • 2 x 4+4pin CPU +12V
  • 6 x 4pin Molex
  • 9 x 6+2pin PCI-E Power
  • 5 x 6pin PCI-E Power
  • 2 x FDD Power
  • 16 x SATA Power
Dimensions 150 x 85 x 220 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298

Additional Notes:
Further warranty extension is available upon registration within 30 days of purchase.
For more details please visit http://eu.evga.com/warranty/

Reviews
Rated 5 out of 5 by 2 reviewers.
Rated 5 out of 5 by It's monster! This PSU will handle any thing you throw at it. Perfect for higher power CPU's and multi GPU rigs. The fully modular feature keeps your cable management to a minimum. This thing is heavy and big make sure you have room in your case. 27 October 2015
Rated 5 out of 5 by Very Good Great PSU easily powers two 295x2s and overclocked 4770k. Great value and great performance 13 October 2014
