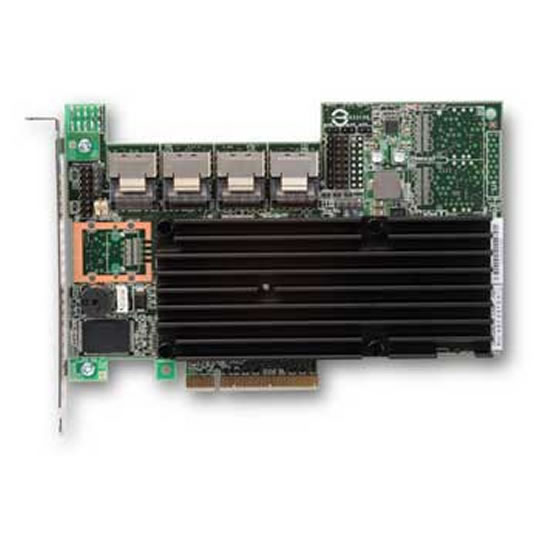

L5-25243-06 16 Port Raid Card from Avago/LSI

16 Port MegaRAID SAS 9260-16i 6Gb/s SATA SAS RAID controller card Via x4 mini-SAS SFF-8087 connectors

Scan code: LN38111 Manufacturer code: LSI00208 Request call
£809.48Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview The sixteen-port MegaRAID SAS 9260-16i provides a new level of performance and data protection for businesses that are facing storage challenges driven by unprecedented data growth. Customers can connect up to 16 drives inside the server via direct connection or passive backplanes. Also, by utilizing SAS expander technology, this controller can scale to support up to 128 devices for growing storage requirements. This MegaRAID value line controller, great for inside-the-box connectivity, employs the latest in RAID-on-Chip technology, complies with the PCI Express 2.0 specification, and supports 512MB DDR2 cache and optional battery backup for maximum performance and reliability. Features • Sixteen internal SATA+SAS ports.
• Four mini-SAS SFF-8087 x4 connectors.
• 6 GB/s throughput per port.
• PCI Express 2.0x8 host interface.
• 512MB DDRII cache (800MHz).
• Connect up to 128 SATA and/or SAS devices.
Ports Total
Ports Internal
Ports External
Connectors 4 x Mini SAS
Interface PCIe 2.0 x8
RAID Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
  • RAID 6
  • RAID 60
Low Profile Compatible No
Cables Inc.
Cache Memory 512MB

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
14 days
RTB Period:
36 months
