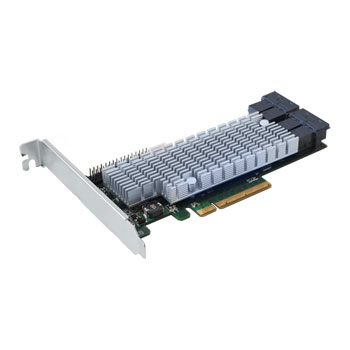

HighPoint RR2840A 16 Port PCIe SATA/SAS Raid Card

16 Port HighPoint RocketRAID 2840A 6Gb/s PCIe 3.0 x8 SAS/SATA RAID Host Bus Adapter

Highpoint
Scan code: LN86490 Manufacturer code: RR2840A Request call
£253.49
Pay on Scan Finance with a 10% deposit from just £6.33 / month (APR 15.9%)
From £12.17 / month (APR 14.9%)
Monthly Payment: £43.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £253.49
Total inc. interest: £263.92
Monthly Payment: £22.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £253.49
Total inc. interest: £273.08
Monthly Payment: £15.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £253.49
Total inc. interest: £282.41
Monthly Payment: £12.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £253.49
Total inc. interest: £292.01
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £5.48 By DPD On 21st Feb 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview he Industry’s most Price Competitive 16-Channel PCIe 3.0 SAS RAID Host Adapter!

The RocketRAID 2840A host bus adapter is the world’s most price competitive 16-Channel SAS/SATA RAID controller, and delivers unprecedented end-to-end Generation 3.0 PCI Express transfer performance with Professional class RAID Storage reliability and management capabilities.
RocketRAID 2840A: Professional Class SAS 6Gb/s PCIe 3.0 RAID Solutions

RocketRAID 2840A host bus adapters capitalize on HighPoint’s two decades of RAID and storage technology to deliver professional grade RAID storage at a fraction of the cost of conventional host RAID solutions. Each adapter is powered by our industry proven RAID technology, superior Gen 3.0 PCIe express transfer bandwidth, and up to sixteen dedicated 6Gb/s SAS channels, which support robust, high-performance RAID 0, 1, 5, 6, 10, 50 and JBOD configurations of SAS or SATA hard drives of any disk format, including 512, 512e and 4Kn.

Datasheet
Compatibility list
Linux-Auto Compile Driver Feature

Contact Sales
Authorized Resellers


RocketRAID 2840A host bus adapters are designed to maximize the uptime and accessibility of RAID storage. RocketRAID storage and RAID recovery solutions enhance data retrieval from failed disks and streamline rebuild sessions.
The universal RocketRAID WebGUI interface provides a wide range of preemptive monitoring and maintenance features that enable administrators to easily schedule verification sessions to ensure the health of each RAID storage configuration.
Seamlessly Upgrade RAID Storage

RocketRAID 2840A adapters deliver an unprecedented level of flexibility when it comes to storage configurations. Customers are free to expand or convert RAID storage configurations as needed to keep on top of the evolving demands of the storage application, without sacrificing existing data. Online Capacity Expansion (OCE) allows administrators to add new drives to existing arrays in order to expand available capacity. Online RAID Level Migration (ORLM) allows administrators to convert one RAID level to another in order to tune storage configurations for maximum performance or data security.
Arrays created with RocketRAID 2840A adapters are future-proof; Online RAID Roaming allows customers to move existing RAID arrays to other 2840A RAID controllers, in addition to all future HighPoint RAID products.
HighPoint offers a range of Customized Solution services for SMB Customers. We can tailor RocketRAID 2840A host bus adapters to meet the requirements of client defined storage applications across Linux, Windows, Mac and FreeBSD platforms, and are ready to assist Solution Providers with unique product branding. A full API library is available for integration projects and we offer a variety of Enclosure Management services including SGPIO, SES-2 and I2C.
Multi-HBA Solution

HighPoint’s multi-HBA (host bus adapter) Non-RAID solution software packages are available for all major operating system platforms including Windows, Linux, FreeBSD, and Mac OS X. The RocketRAID 2840A device driver enables up to four independent cards to work in unison, and effectively function as a single 64-channel 6G SAS host controller. This innovative approach to direct-attached mass storage connectivity allows customers to simplify the build process, streamline maintenance procedures, and provides dedicated SAS 6Gb/s point-to-point bandwidth for each connected device. The robust, versatile, device driver allows administrators to keep tabs on the operational status of each card and individual storage device via the RocketRAID 2840A's intuitive web-based management interface. Features Bus Interface 8-lane, 8 GT/s PCI Express 3.0 Compliant
Number of Channel / Port 16x 6Gb/s SAS / 6Gb/s SATA Channels
Data Transfer Rates Up to 6Gb/s per port
Port Type Four SFF-8643 mini-SAS HD
Storage Device Support 16x SAS/SATA Hard Drive/SSD
Form Factor Low Profile
Controller Dimensions 5.97” x 2.68” x 0.06”
Controller Weight 0.26lbs.
RAID Mode 0, 1, 5, 6, 10, 50 and JBOD / Non-RAID Mode
Note: RAID 6 not supported on Mac OS X
Operating System Support Window Server 2008 and Window 7 and later
Linux
FreeBSD
Mac

Flash ROM for Upgradeable BIOS
Storage Health Inspector
Redundant RAID Configurations
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Bootable RAID Array
EFI for Mac Platform
Multiple RAID Partitions supported
Storage Configurations: Direct Attached
Support up to 4 RAID controllers per system
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Quick Initialization for fast array setup
Drive hot-plug support
Global Hot Spare Disk support
Automatic and configurable RAID Rebuilding Priority
Auto resume incomplete rebuilding after power on or reboot system
Disk Format compatible: 512, 512e, 4Kn
Larger than 2 TB Drive and RAID Array support
Spin down Massive Arrays of Idle Disks support
Native Command Queuing
Disk media scan and repair
Device Error Recovery support
Automatic remap and fix drive bad block for Redundant RAID Levels (RAID 1, 5, 6, 10, 50)
Staggered Drive Spin Up
Write Back and Write Through

Specifications
Ports Total
Ports Internal
Ports External
Connectors
Interface
JBOD No
RAID Support N/A
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
Warranty
