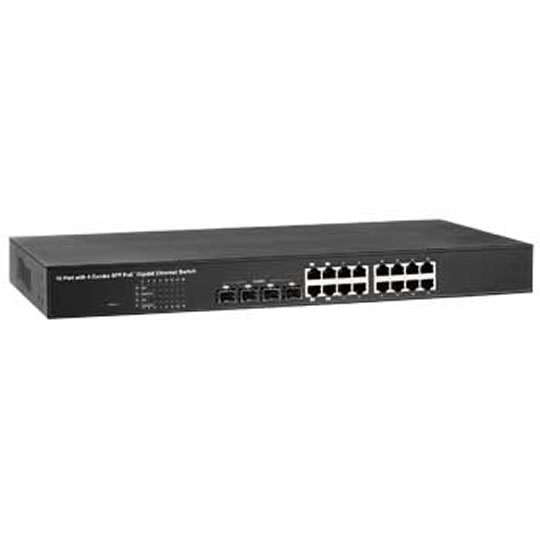

16 Port POE Switch 19" Rackmountable with 4 Combo SFP Gigabit Ports
16-Port 10/100/1000M IEEE 802.3 af/at complaint PSE, 4 SFP Open Slots
IEEE 802.1Q VLAN Tagging
802.1p Priority Queues
Jumbo Frames and IGMP Support
Link Aggregation and Spanning Tree
IEEE 802.3af Power over Ethernet (PoE) ports
PS-7164VM features 16-port PoE+ IEEE 802.3af supplying up to 15.4 watts per port. This product can convert standard 90~260V/AC power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3af compliant network accessories. By adding PS-7164VM to existing networking, installing networking products such as Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located with available power outlets and network administrators don't need to use heavy AC power adapters anymore.
High-Speed Networking and Jumbo Frames Support
PS-7164VM provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time transferring large files. In addition, it also supports Jumbo Frames 9.6K to improve network utilization of large file transfers.
PS-7164VM provides Smart features that are ideal for simple QoS/CoS applications and basic monitoring tools to improve network efficiency. Its security and management features, such as bandwidth control, and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN) to secure your network. Through a Web-based interface, an administrator can set up VLANs to segregate traffic, QoS to prioritize mission-critical data and link aggregation to create fat traffic pipelines. In addition, PS-7244VW also supports Rapid Spanning Tree to detect and break unintentional cabling loops within the network. All of these features offer extra protection on the network edge. Best of all, the password-protected configuration interface can be accessed remotely.
PS-7164VM supports specific MAC Addresses filtering for every port, and then only identifiers have the privilege to pass through the specific ports. On security, it also supports IEEE802.1x port authentication.
Enterprise-Class Web Management Utility
With graphic user interface, it's easy to manage, plan and configure PS-7164VM Rack-mount Gigabit Web Smart Ethernet Switch. This utility provides valuable tools, such as,
The configuration features of the Web Management utility allows the system administrator to set the IP Address, the user name and the password of PS-7164VM.
Monitoring List and Statistic View:
PS-7164VM can be monitored for every status by the system administrator. When an abnormal event occurs on the switch, messages can be set to notify the system administrator.
The system can easily maintain PS-7164VM by updating every status.
No Special Networking Cable Required
By adding PoE devices, you can use an existing standard Cat.5/Cat.5e Ethernet cable without a new electrical outlet for both power and data. It helps you reduce installation time and cost.
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Every port can automatically sense if the connected network devices are running at 10Mbps/ 100Mbps/1000Mbps and Half/Full-Duplex mode, and adjust accordingly.
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps/2000Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store and Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
Features Technical Specifications
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control
IEEE 802.3af PoE
IEEE 802.1x Port-based Network Access Control
IEEE 802.1Q VLAN
IEEE 802.3ad Link Aggregation
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service, Priority Protocols
RJ-45 Ports: 16
SFP Open Slots: 4
MAC Address: 8K
Buffer Memory: 500K Bytes
Jumbo Frames: 9.6K
Transmission Method: Store and Forward
Tagged VLAN: 16
VLAN ID: 1~ 4094
Trunk Groups: 8
Quality of Service: up to 4 queues
Rate Limiting (Ingress rate and Egress rate)
802.1x Port-based Network Access Control
Management: Port Mirroring, Password-protected Access, Port Settings, Web-base Management, Graphic User Interface
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5E UTP/STP
Per Port: Link/Act, PoE: Act/Status
Per Unit: Power
Power Requirement 100~240V/AC, 50~60Hz
Supply Power up to 260 Watts (Max)
Dimensions 440 × 330 × 44 mm (L x W x H)
Operating Temperature 0 to 40?
Storage Temperature -20 to 90?
Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class A, CE
|Total Network Ports||4 x Dual-ports (RJ-45/SFP)|
|PoE Support Type|
|No. of Ports with PoE||16 x Gigabit 10/100/1000|
|Other Non-Network Ports|
|Forwarding Performance/Bandwidth||32 Gbps|
|MAC Address Table Size|
|Built-in Flash Memory|
|Max. Power Consumption||390 W|
|Mean Time Between Failures (MTBF)|
|Dimensions (WxHxD)||330 x 44 x 440 mm|
