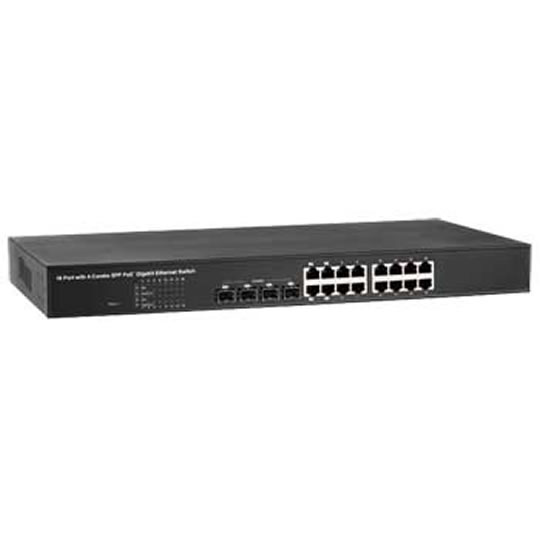

Eten EW-7164VW 16 Port Gigabit Managed Switch + 4 Combo SFP with Rackmount Kit Metal Case
16 Port eten EW-7164VW +4 combo SFP uplink Rack-Mount Kit, Metal Gigabit Managed Switch
Scan code:
LN39045
Manufacturer code:
EW-7164VW
Order in the next 56 mins and get it tomorrow
(upgrade to Sunday delivery at checkout)
From
£12.26
/ month (APR 14.9%)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD On 17th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
EW-7164VW is 16-port 10/100/1000M + 4 Combo SFP Rack-mount Gigabit Web Smart Ethernet Switch that is designed for medium or large network environment to strengthen its network connection.
Including rack-mount brackets, the 19" size fits into your rack environment. It is a superb choice to boost your network with better performance and efficiency
Features
16-Port 10/100/1000BaseT(X), 4 Combo SFP Open Slots
Web-based Configuration and Management
IEEE 802.1Q VLAN Tagging
802.1p Priority Queues
Jumbo Frames and IGMP Support
Link Aggregation and Spanning Tree
4 Combo SFP Open Slots
EW-7164VW supports 4 Combo SFP open slots to uplink to servers, storage, or other switching devices for long loop reach applications.
High-Speed Networking and Jumbo Frames Support
EW-7164VW provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time transferring large files. In addition, it also supports Jumbo Frames 9.6K to improve network utilization of large file transfers.
Exceptionally Smart
EW-7164VW provides Smart features that are ideal for simple QoS/CoS applications and basic monitoring tools to improve network efficiency. Its security and management features, such as bandwidth control, and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN) to secure your network. Through a Web-based interface, an administrator can set up VLANs to segregate traffic, QoS to prioritize mission-critical data and link aggregation to create fat traffic pipelines. In addition, EW-7164VW also supports Rapid Spanning Tree to detect and break unintentional cabling loops within the network. All of these features offer extra protection on the network edge. Best of all, the password-protected configuration interface can be accessed remotely.
IGMP multicast filtering and snooping
IGMP Snooping monitors IGMP service requests passing between Multi-cast clients and servers, and dynamically configures the ports which need to receive the multi-cast traffic. For IGMPV3, basic support for reports only, Source Multicast not supported.
IGMP Snooping Configuration
o IGMP Enabled - When enabled, the switch will monitor network traffic to determine which hosts want to receive multicast traffic.
o Router Ports - Set if ports are connecting to the IGMP administrative routers.
o Unregistered IPMC Flooding enabled - Set forwarding mode for unregistered (not-joined) IP multicast traffic. The traffic will flood when enabled, and forward to router-ports only when disabled.
IGMP Status
Show the IGMPSNOOP statistics for the whole switch.
o VLAN ID - VLAN ID number.
o Querier - Show whether Querying is enabled.
o Queries transmitted - Show the number of transmitted Query packets.
o Queries received - Show the number of received Query packets.
o v1 Reports - Show the number of received v1 Report packets.
o v2 Reports - Show the number of received v2 Report packets.
o v3 Reports - Show the number of received v2 Report packets.
o v3 Leave - Show the number of v3 leave packets received.
Advanced Security
EW-7164VW supports specific MAC Addresses filtering for every port, and then only identifiers have the privilege to pass through the specific ports. On security, it also supports IEEE802.1x port authentication.
Enterprise-Class Web Management Utility
With graphic user interface, it's easy to manage, plan and configure EW-7164VW Rack-mount Gigabit Web Smart Ethernet Switch. This utility provides valuable tools, such as,
Configuration List:
The configuration features of the Web Management utility allows the system administrator to set the IP Address, the user name and the password of EW-7164VW.
Monitoring List and Statistic View:
EW-7164VW can be monitored for every status by the system administrator. When an abnormal event occurs on the switch, messages can be set to notify the system administrator.
Maintenance List:
The system can easily maintain EW-7164VW by updating every status.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps, 100Mbps or 1000Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 2000Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store and Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
Features Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1x Port-based Network Access Control
IEEE 802.1Q VLAN
IEEE 802.3ad Link Aggregation
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service, Priority Protocols
Features
RJ-45 Ports: 16
Combo SFP Open Slots: 4
MAC Address: 8K
Buffer Memory: 340K Bytes
Jumbo Frames: 9.6K
Transmission Method: Store and Forward
Smart Features
VLAN: 16
Tagged VLAN: 16
VLAN ID: 1~4094
Trunk Groups: 8
Quality of Service: up to 4 queues
IGMP Snooping
LACP, RSTP
MAC Filtering
Rate Limiting (Ingress rate and Egress rate)
802.1x Port-based Network Access Control
Management: Port Mirroring, Password-protected Access, Port Settings, Web-base Management, Graphic User Interface
Filtering/Forwarding Rates
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Transmission Media
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5E UTP/STP
Led Indicators
Per Port: Link/Act, 1000M
Per Unit: Power
Power Requirement 90~260V/AC, 50~60Hz
Power Consumption 20 Watts (Max)
Dimensions 440 × 220 × 44 mm (L x W x H)
Weight 2.9 kg
Operating Temperature 0 to 45?
Storage Temperature -20 to 90?
Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class A, CE
